RIEGLER Push-in bulkhead L-connector »Blue Series« mini, M12x1
Type number: PWS-126
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER L bulkhead connector "Blue series" mini made of plastic or nickel-plated brass - type PWS-126
The RIEGLER "Blue series" mini L-Schott push-in connector, M12x1.0, Ø 6, connects compressed air and pneumatic lines securely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread M12x1.0 - suitable for common industry standards. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M12x1.0 |
| SW | 12 mm |
| for hose outer Ø | 6 mm |
| L1 | 16 mm |
| L2 | 28.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109090] RIEGLER Push-in bulkhead L-connector »Blue Series« mini, M10x1](/web/image/product.template/192987/image_128/%5B109090%5D%20RIEGLER%20Push-in%20bulkhead%20L-connector%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M10x1?unique=9ccd1eb)
|
Type number: PWS-104 |
3.22 € | |

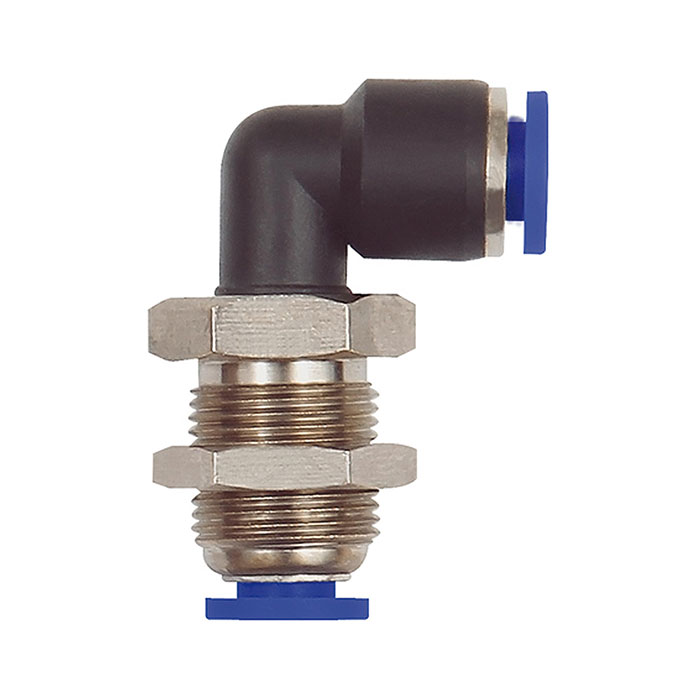

![[109089] RIEGLER Push-in bulkhead L-connector »Blue Series« mini, M8x0.75](/web/image/product.template/192986/image_128/%5B109089%5D%20RIEGLER%20Push-in%20bulkhead%20L-connector%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M8x0.75?unique=b33eedd)
|
