RIEGLER Straight push-in bulkhead fitting »Blue Series«, M14x1, G 1/4 i.
Type number: 151.014-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ger. Schott push-in fitting "Blue series" made of plastic or nickel-plated brass - type 151.014-6
The RIEGLER Ger. Schott push-in fitting "Blue series", M14x1.0, Rc 1/4 i. connects compressed air and pneumatic lines safely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/4 |
| Control panel thread | M14x1.0 |
| SW | 17 mm |
| for hose outer Ø | 6 mm |
| L1 | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109213] RIEGLER Straight push-in bulkhead fitting »Blue Series«, M12x1, G 1/8 i.](/web/image/product.template/193110/image_128/%5B109213%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20M12x1%2C%20G%201-8%20i.?unique=0b40c00)
|
Type number: 151.018-4 |
1.38 € | |
![[109214] RIEGLER Straight push-in bulkhead fitting »Blue Series«, M14x1, G 1/8 i.](/web/image/product.template/193111/image_128/%5B109214%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20M14x1%2C%20G%201-8%20i.?unique=e3fd3ec)
|
Type number: 151.018-6 |
1.99 € | |
![[109217] RIEGLER Straight push-in bulkhead fitting »Blue Series«, M16x1, G 1/4 i.](/web/image/product.template/193114/image_128/%5B109217%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20M16x1%2C%20G%201-4%20i.?unique=c706ae9)
|
Type number: 151.014-8 |
2.94 € | |
![[109215] RIEGLER Straight push-in bulkhead fitting »Blue Series«, M16x1, G 1/8 i.](/web/image/product.template/193112/image_128/%5B109215%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20M16x1%2C%20G%201-8%20i.?unique=aa26f21)
|
Type number: 151.018-8 |
2.56 € | |

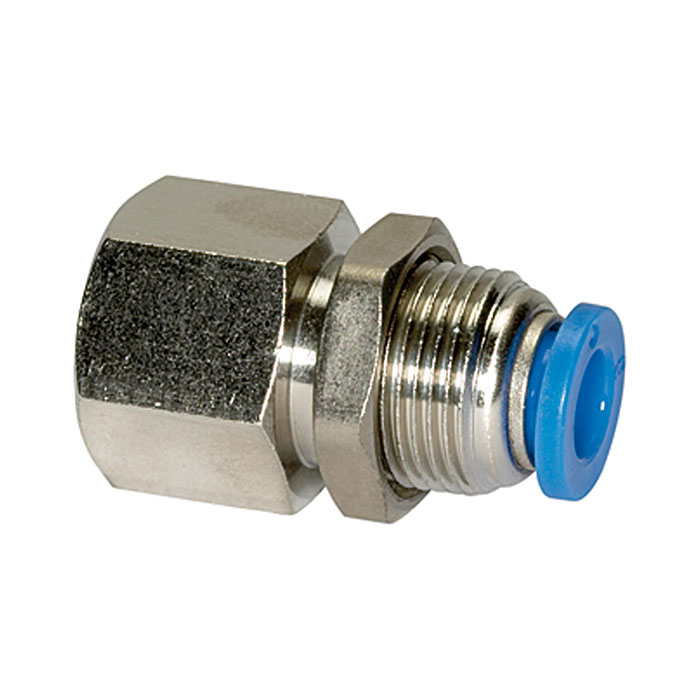

![[109218] RIEGLER Straight push-in bulkhead fitting »Blue Series«, M20x1, G 1/4 i.](/web/image/product.template/193115/image_128/%5B109218%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20M20x1%2C%20G%201-4%20i.?unique=ef2709b)
|
