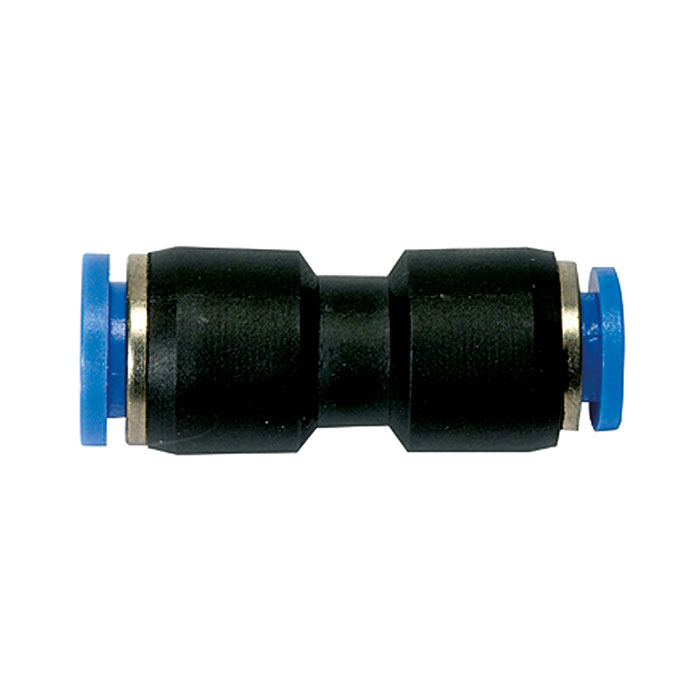

RIEGLER Straight push-in connector »Blue Series«, red., hose ext. Ø 12/8
Type number: 136.1208
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

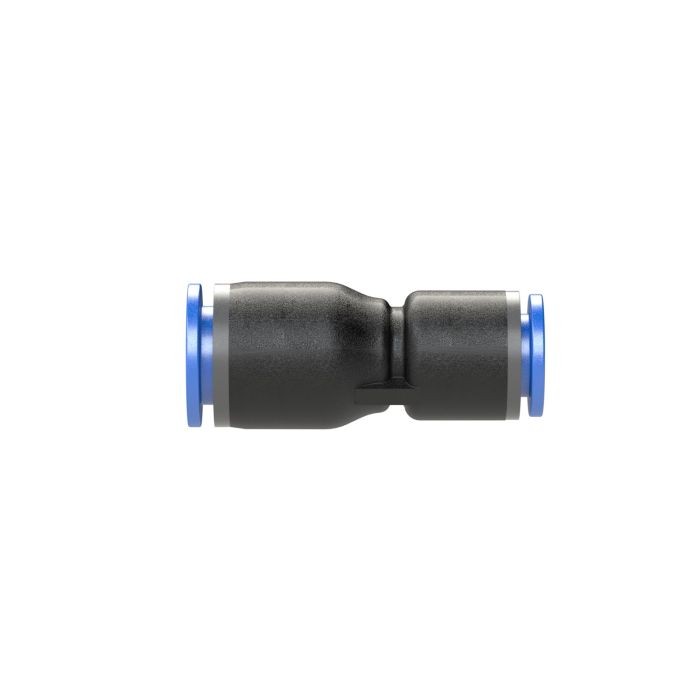

RIEGLER Gerade Steckverbindung »Blaue Serie« reduzierend aus Kunststoff bzw. Messing vernickelt – Typ 136.1208
Das RIEGLER Gerade Steckverbindung »Blaue Serie« reduzierend, Schlauch-Ø 12/8 ermöglicht die schnelle, werkzeugfreie Verbindung von Druckluftleitungen – sicher abdichtend und sofort belastbar. Das Gehäuse besteht aus Kunststoff bzw. Messing vernickelt mit Dichtungen aus NBR. Der Betriebsdruckbereich liegt bei -0.95 bar bis 10 bar. Der Temperaturbereich erstreckt sich zwischen -20 °C und 80 °C. Geeignet für Druckluft. Schnelle Montage ohne Werkzeug – spart Zeit bei Installation und Umrüstung.
Einsatzbereich
Typische Anwendungsgebiete: Pneumatische Installationen, Maschinenverrohrung und Automatisierungstechnik.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 12/8 mm |
| L1 | 45 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109804] RIEGLER Straight push-in connector »Blue Series«, red., hose ext. Ø 10/8](/web/image/product.template/178730/image_128/%5B109804%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20red.%2C%20hose%20ext.%20%C3%98%2010-8?unique=6636f92)
|
Type number: 136.1008 |
1.87 € | |

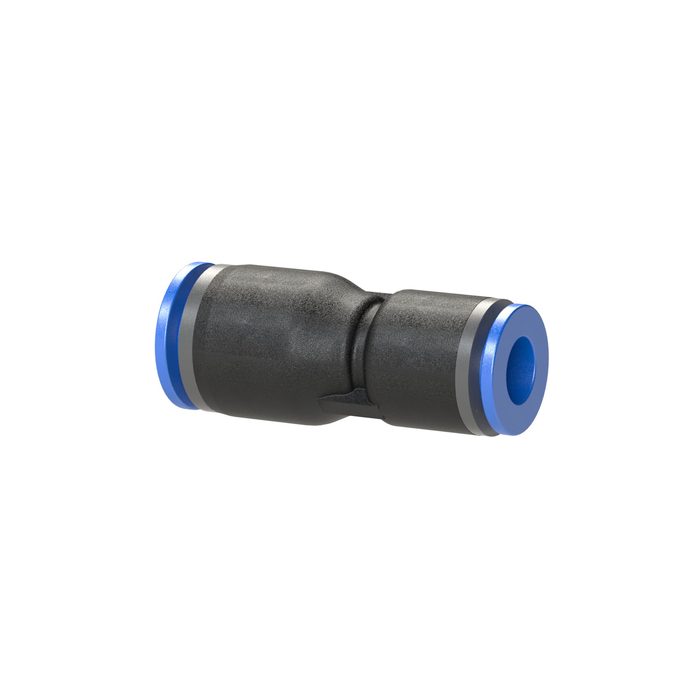

![[109800] RIEGLER Straight push-in connector »Blue Series«, red., hose ext. Ø 6/4](/web/image/product.template/178726/image_128/%5B109800%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20red.%2C%20hose%20ext.%20%C3%98%206-4?unique=2d60fd4)
|
