RIEGLER Push-in Y-connector »Blue Series«, reducing, hose ext. Ø 1x8/2x6
Type number: 141.008
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

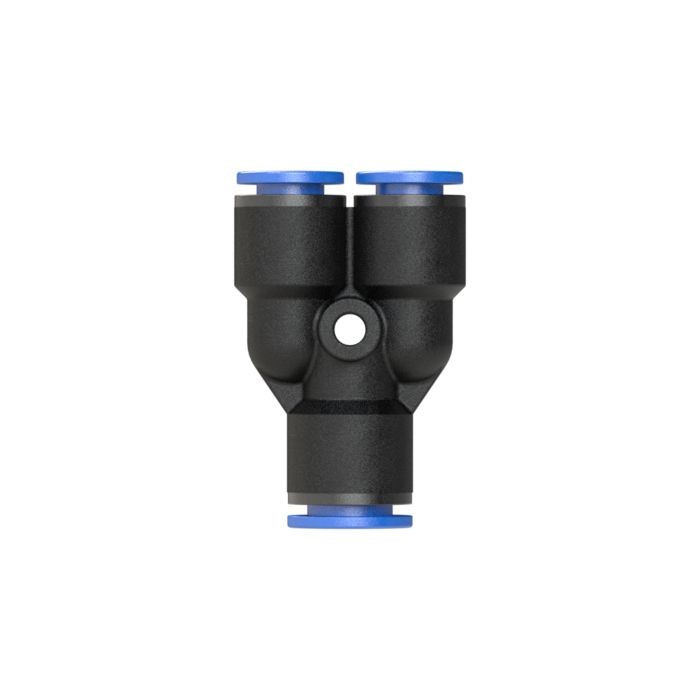

RIEGLER Y-connector "Blue series" made of plastic or nickel-plated brass - Type 141.008
The RIEGLER Y-connector "Blue series", reducing, hose Ø 1x8/2x6 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 1x8 / 2x6 mm |

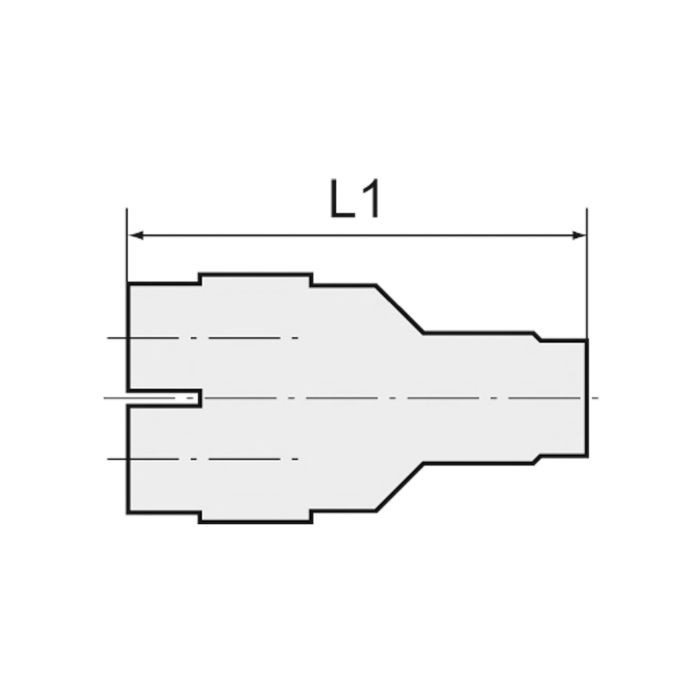

| L1 | 39.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109857] RIEGLER Push-in Y-connector »Blue Series«, reducing, hose ext. Ø 1x10/2x6](/web/image/product.template/178783/image_128/%5B109857%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20reducing%2C%20hose%20ext.%20%C3%98%201x10-2x6?unique=9f143e7)
|
Type number: 141.1006 |
2.48 € | |

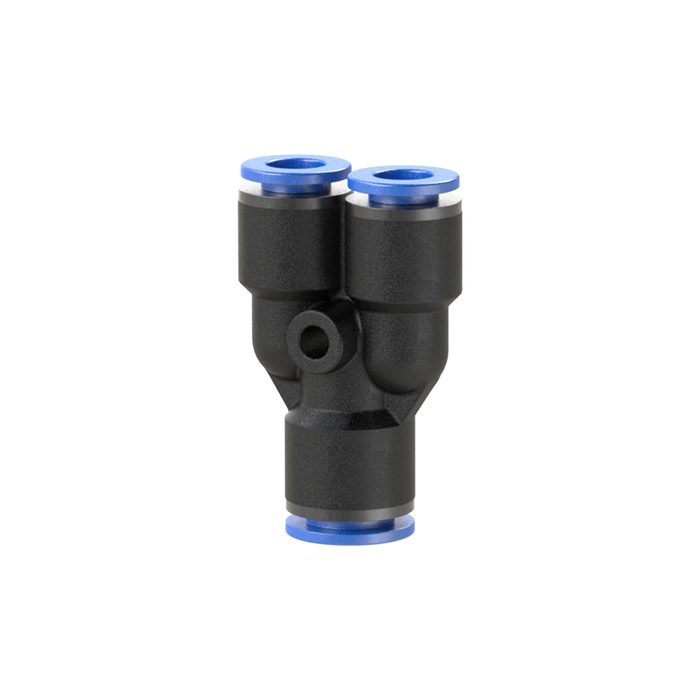

![[109858] RIEGLER Push-in Y-connector »Blue Series«, reducing, hose ext. Ø 1x10/2x8](/web/image/product.template/178784/image_128/%5B109858%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20reducing%2C%20hose%20ext.%20%C3%98%201x10-2x8?unique=f96a566)
|
Type number: 141.010 |
2.77 € | |
![[109860] RIEGLER Push-in Y-connector »Blue Series« reducing, hose ext. Ø 1x12/2x10](/web/image/product.template/178786/image_128/%5B109860%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%20reducing%2C%20hose%20ext.%20%C3%98%201x12-2x10?unique=9832fc3)
|
Type number: 141.012 |
3.13 € | |
![[109859] RIEGLER Push-in Y-connector »Blue Series«, reducing, hose ext. Ø 1x12/2x8](/web/image/product.template/178785/image_128/%5B109859%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20reducing%2C%20hose%20ext.%20%C3%98%201x12-2x8?unique=babd4b3)
|
Type number: 141.1208 |
2.94 € | |
![[135763] RIEGLER Push-in Y-connector »Blue Series« reducing, hose ext. Ø 1x16/2x12](/web/image/product.template/206141/image_128/%5B135763%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%20reducing%2C%20hose%20ext.%20%C3%98%201x16-2x12?unique=7a7d84e)
|
Type number: 141.1612 |
4.43 € | |

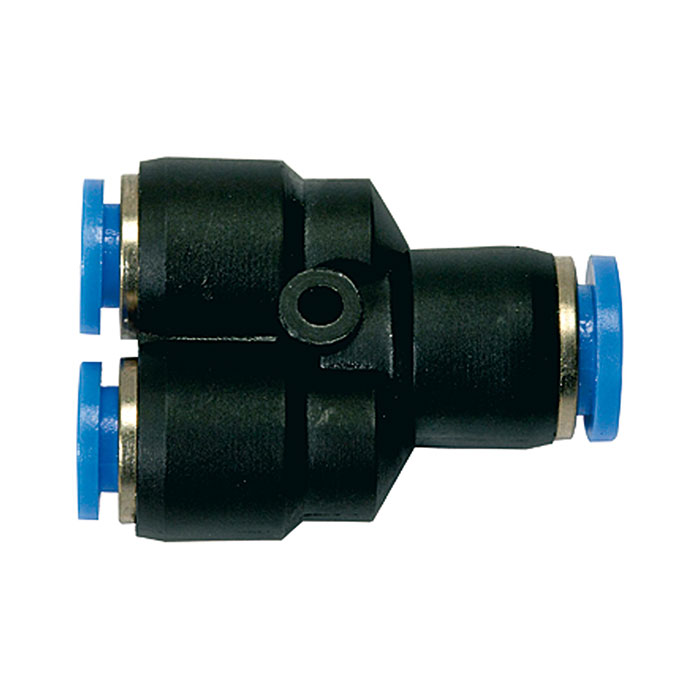

![[109854] RIEGLER Push-in Y-connector »Blue Series«, reducing, hose ext. Ø 1x6/2x4](/web/image/product.template/178780/image_128/%5B109854%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20reducing%2C%20hose%20ext.%20%C3%98%201x6-2x4?unique=103ab5c)
|
