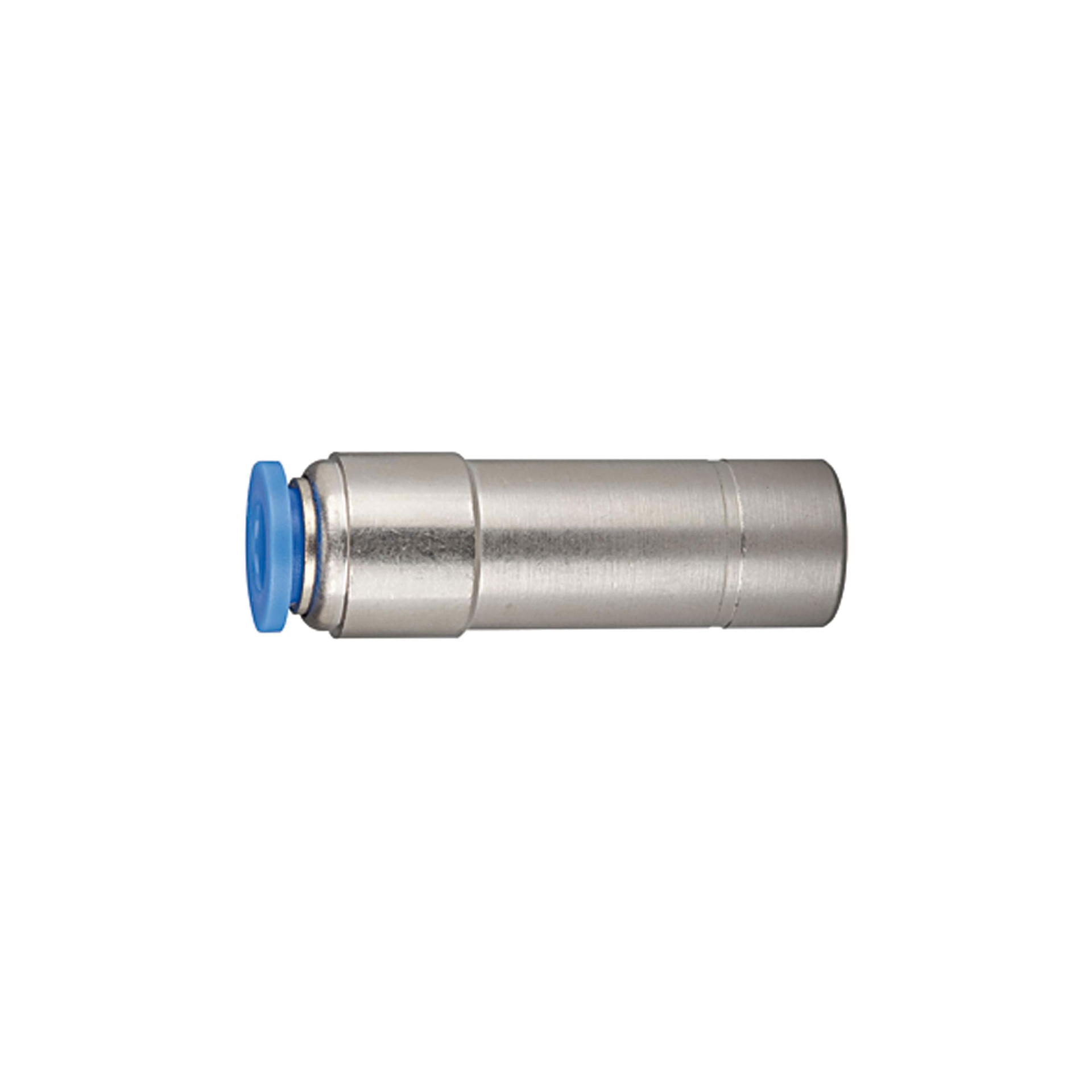

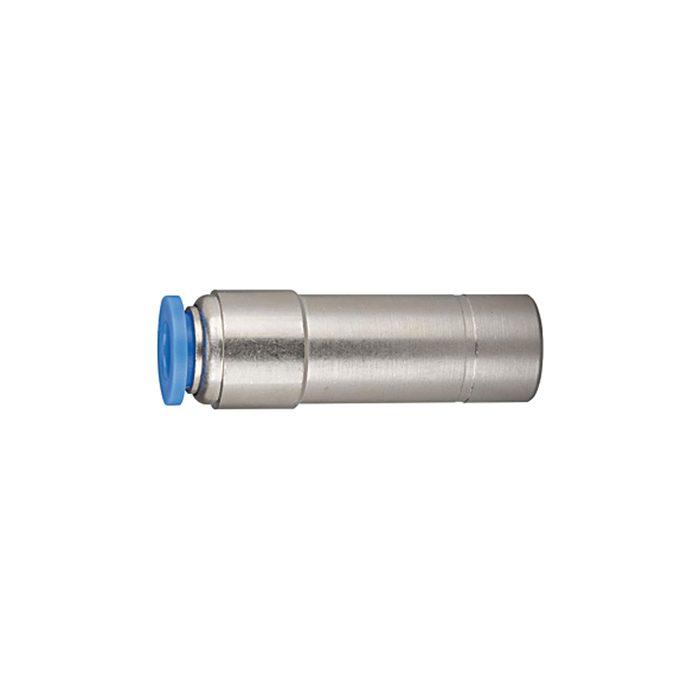

RIEGLER Straight push-in connector »Blue Series« hose Ø 6 plug nip. 12
Type number: 143.0612
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plug-in connector made of MS nickel-plated, for pneumatic installation, max. 10 bar - Type 143.0612
The RIEGLER Ger.plug-in connector, hose Ø 6, plug-in nipple 12 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated MS with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | MS nickel-plated |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 6 mm |
| Plug nipple | 12 mm |
| L1 | 40.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

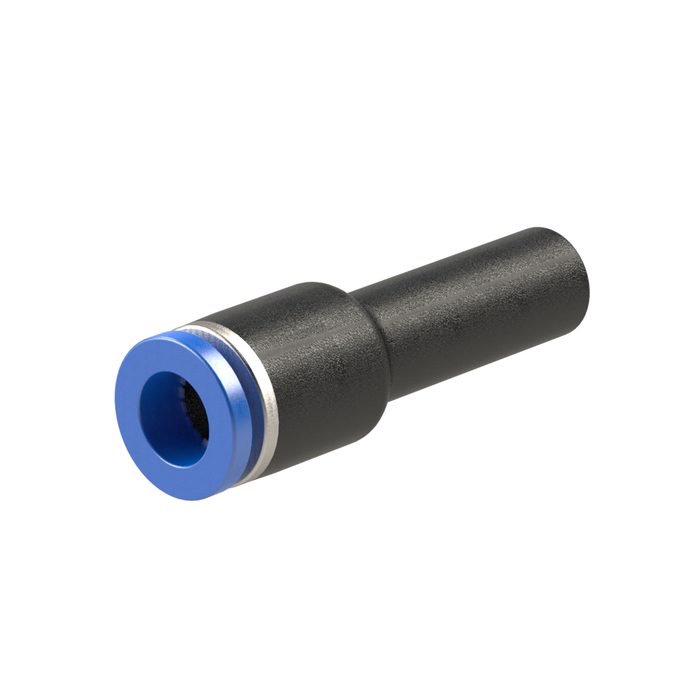

![[109883] RIEGLER Straight push-in connector »Blue Series« hose Ø 10 plug nip. 12](/web/image/product.template/178809/image_128/%5B109883%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%20hose%20%C3%98%2010%20plug%20nip.%2012?unique=466582d)
|
Type number: 143.1012 |
1.95 € | |

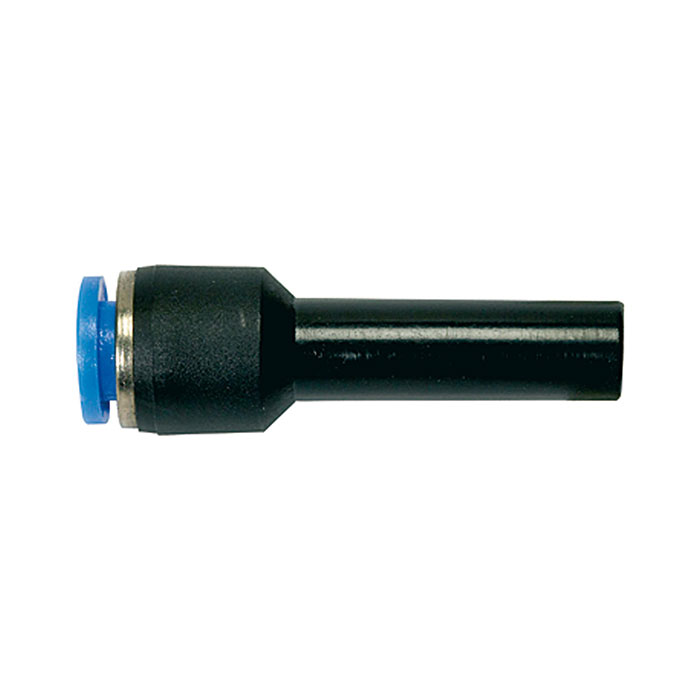

![[109879] RIEGLER Straight push-in connector »Blue Series« hose Ø 6 plug nip. 10](/web/image/product.template/178805/image_128/%5B109879%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%20hose%20%C3%98%206%20plug%20nip.%2010?unique=14dc8ab)
|
