RIEGLER Bulkhead fitting POM, G 1/2, for hose exterior Ø 8 mm
Type number: 71.012-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER POM bulkhead fitting made of acetal polymer (POM), for pneumatic installation - type 71.012-8
The RIEGLER bulkhead fitting POM, G 1/2, for hose outer Ø 8 mm connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of acetal polymer (POM). The operating pressure range is -0.95 bar to 16 bar. G 1/2 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 16 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| Thread | G 1/2 |
| SW | 22 mm |
| for hose outer Ø | 8 mm |

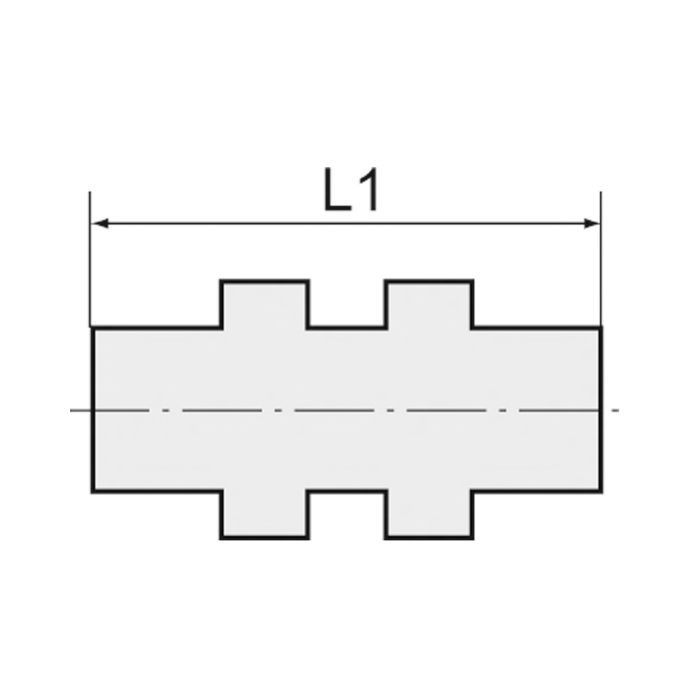

| L1 | 40 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135974] RIEGLER Bulkhead fitting POM, G 1/2, for hose exterior Ø 10 mm](/web/image/product.template/206322/image_128/%5B135974%5D%20RIEGLER%20Bulkhead%20fitting%20POM%2C%20G%201-2%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=5e8d10e)
|
Type number: 71.012-10 |
5.95 € | |
![[135975] RIEGLER Bulkhead fitting POM, G 3/4, for hose exterior Ø 12 mm](/web/image/product.template/206323/image_128/%5B135975%5D%20RIEGLER%20Bulkhead%20fitting%20POM%2C%20G%203-4%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=72a82cb)
|
Type number: 71.034-12 |
7.29 € | |
![[135972] RIEGLER Bulkhead fitting POM, G 3/8, for hose exterior Ø 4 mm](/web/image/product.template/206320/image_128/%5B135972%5D%20RIEGLER%20Bulkhead%20fitting%20POM%2C%20G%203-8%2C%20for%20hose%20exterior%20%C3%98%204%20mm?unique=a0ce17f)
|
Type number: 71.038-4 |
2.76 € | |
![[135973] RIEGLER Bulkhead fitting POM, G 3/8, for hose exterior Ø 5 mm](/web/image/product.template/206321/image_128/%5B135973%5D%20RIEGLER%20Bulkhead%20fitting%20POM%2C%20G%203-8%2C%20for%20hose%20exterior%20%C3%98%205%20mm?unique=8dcbe11)
|
Type number: 71.038-5 |
2.86 € | |

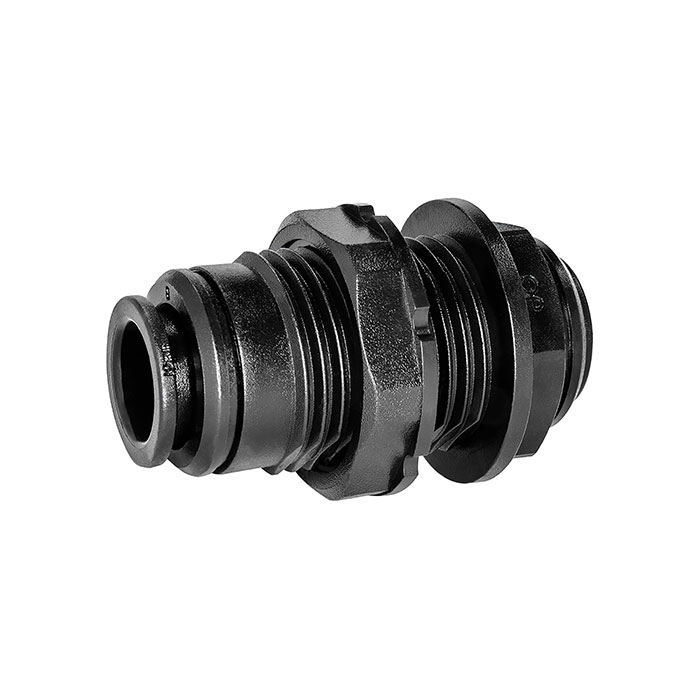

![[110324] RIEGLER Bulkhead fitting POM, G 3/8, for hose exterior Ø 6 mm](/web/image/product.template/179235/image_128/%5B110324%5D%20RIEGLER%20Bulkhead%20fitting%20POM%2C%20G%203-8%2C%20for%20hose%20exterior%20%C3%98%206%20mm?unique=3e5e0ec)
|
