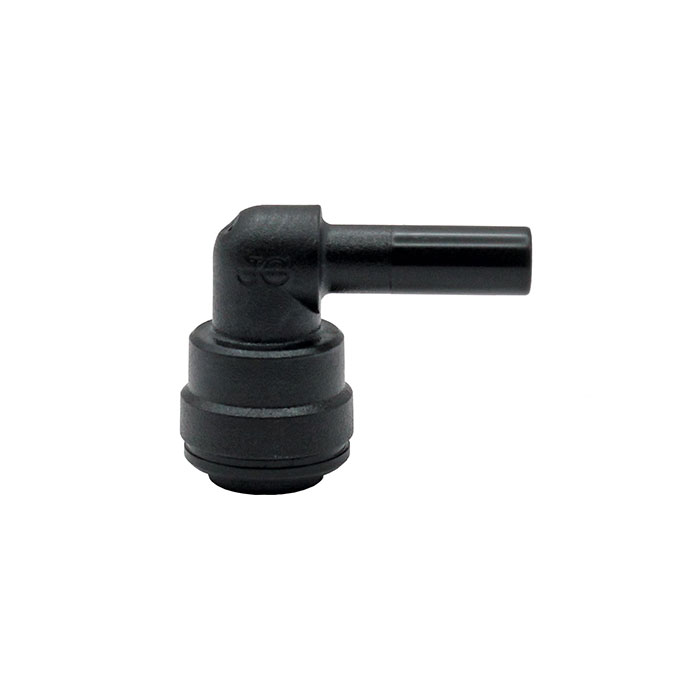

RIEGLER Plug-in angle connector POM, Supports 15 mm, hose exterior Ø 15
Type number: 78.1515
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in elbow connector POM made of acetal polymer (POM), for pneumatic installation - Type 78.1515
The RIEGLER push-in elbow connector POM, spigot 15 mm, hose outer Ø 15 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of acetal polymer (POM). The operating pressure range is -0.95 bar to 10 bar. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| for hose outer Ø | 15 mm |
| Socket | 15 mm |

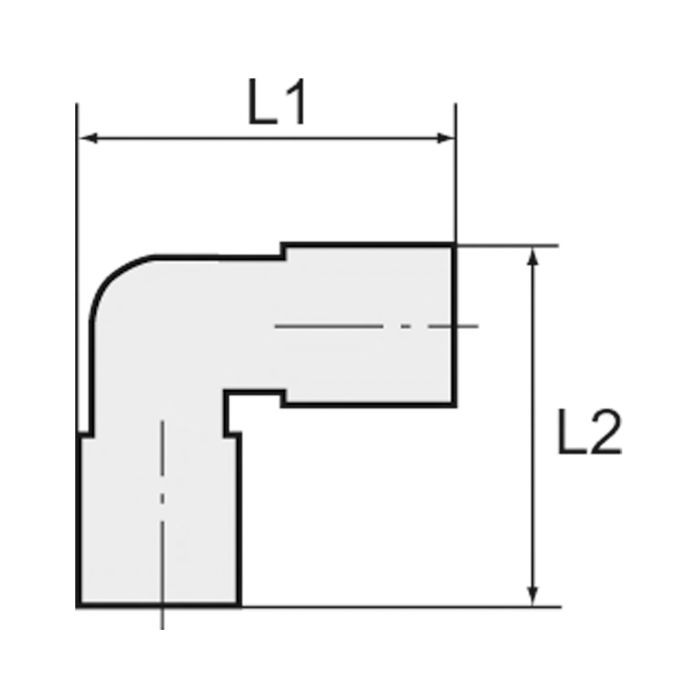

| L1 | 52.1 mm |
| L2 | 42.2 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
