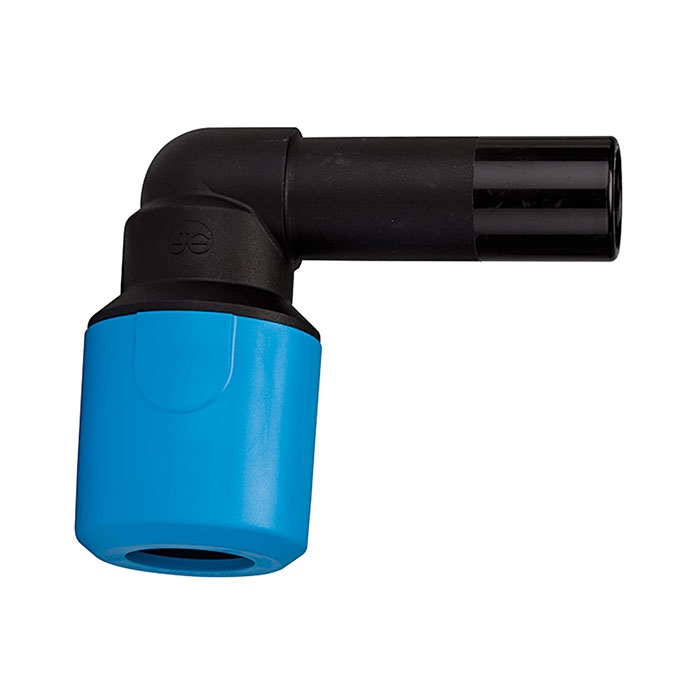

RIEGLER Plug-in angle connector PP, Supports 32 mm, hose exterior Ø 32
Type number: 78.3232
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in angle connector PP made of polypropylene, glass fiber reinforced (PP) - Type 78.3232
The RIEGLER push-in elbow connector PP, spigot 32 mm, hose outer Ø 32 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of polypropylene, glass fiber reinforced (PP). The operating pressure range is 0 bar to 12 bar. The operating temperature is between 0 °C and 20 °C. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Working pressure min. | 0 bar |
| Working pressure max. | 12 bar |
| Material | Polypropylene, glass fiber reinforced (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 20 °C |
| for hose outer Ø | 32 mm |
| Socket | 32 mm |
| L1 | 105.3 mm |
| L2 | 96 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
