RIEGLER Stopper POM, Supports 28 mm, Colour black
Type number: 79.028
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER POM sealing plug made of acetal polymer (POM), for pneumatic installation, max. 10 bar - Type 79.028
The RIEGLER sealing plug POM, spigot 28 mm, color black connects compressed air and pneumatic lines safely and tightly. The housing is made of acetal polymer (POM). The operating pressure range is -0.95 bar to 10 bar. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Acetal polymer (POM) |
| Operating temperature min. with air | -20 °C |
| Max. operating temperature in air | 65 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 65 °C |
| Colour | black |
| Socket | 28 mm |
| L1 | 55.6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110352] RIEGLER Stopper POM, Supports 10 mm, Colour red](/web/image/product.template/179263/image_128/%5B110352%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%2010%20mm%2C%20Colour%20red?unique=f392328)
|
Type number: 79.010 |
1.05 € | |
![[110353] RIEGLER Stopper POM, Supports 12 mm, Colour red](/web/image/product.template/179264/image_128/%5B110353%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%2012%20mm%2C%20Colour%20red?unique=5f44099)
|
Type number: 79.012 |
1.33 € | |
![[110354] RIEGLER Stopper POM, Supports 15 mm, Colour black](/web/image/product.template/179265/image_128/%5B110354%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%2015%20mm%2C%20Colour%20black?unique=6c7fc00)
|
Type number: 79.015 |
1.57 € | |
![[110355] RIEGLER Stopper POM, Supports 18 mm, Colour black](/web/image/product.template/179266/image_128/%5B110355%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%2018%20mm%2C%20Colour%20black?unique=e2ece71)
|
Type number: 79.018 |
1.73 € | |

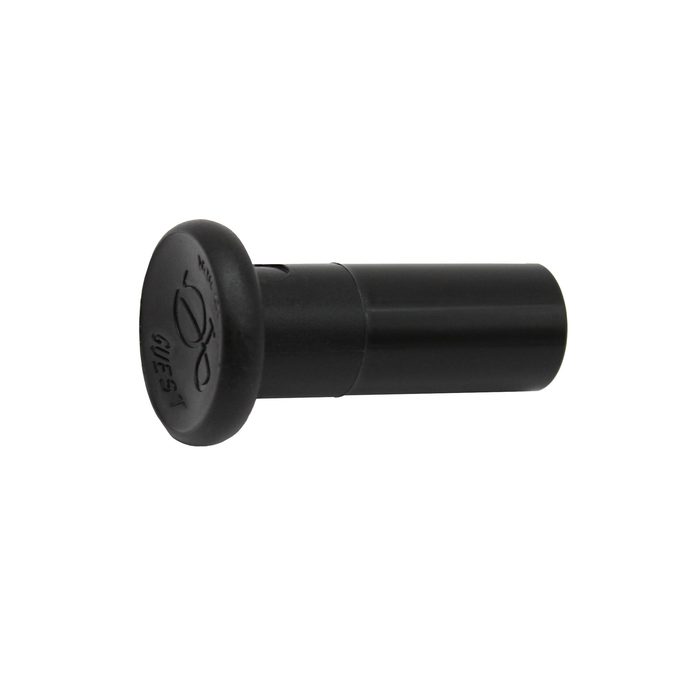

![[110356] RIEGLER Stopper POM, Supports 22 mm, Colour black](/web/image/product.template/179267/image_128/%5B110356%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%2022%20mm%2C%20Colour%20black?unique=71fa0c7)
|
Type number: 79.022 |
1.84 € | |
![[110348] RIEGLER Stopper POM, Supports 4 mm, Colour red](/web/image/product.template/179259/image_128/%5B110348%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%204%20mm%2C%20Colour%20red?unique=184095b)
|
Type number: 79.004 |
0.49 € | |
![[110349] RIEGLER Stopper POM, Supports 5 mm, Colour red](/web/image/product.template/179260/image_128/%5B110349%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%205%20mm%2C%20Colour%20red?unique=e6adab8)
|
Type number: 79.005 |
0.52 € | |
![[110350] RIEGLER Stopper POM, Supports 6 mm, Colour red](/web/image/product.template/179261/image_128/%5B110350%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%206%20mm%2C%20Colour%20red?unique=c0ed2bf)
|
Type number: 79.006 |
0.56 € | |

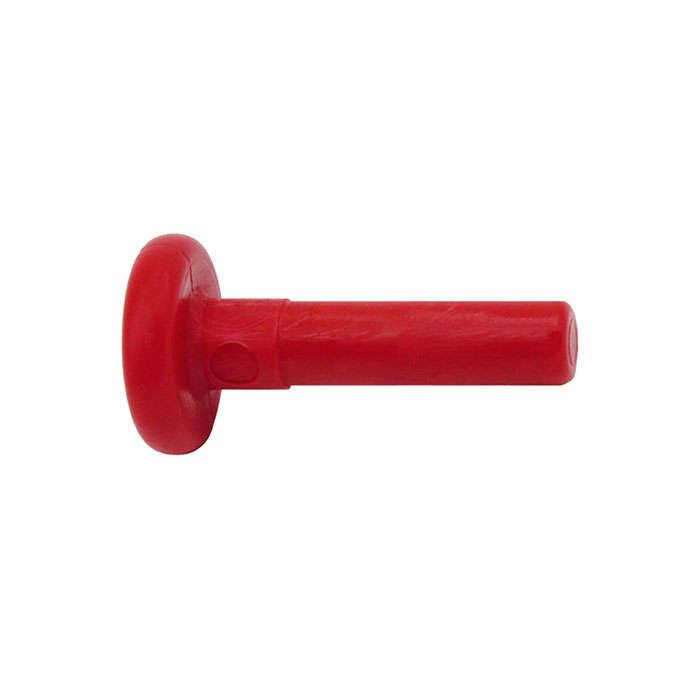

![[110351] RIEGLER Stopper POM, Supports 8 mm, Colour red](/web/image/product.template/179262/image_128/%5B110351%5D%20RIEGLER%20Stopper%20POM%2C%20Supports%208%20mm%2C%20Colour%20red?unique=b2038bb)
|
