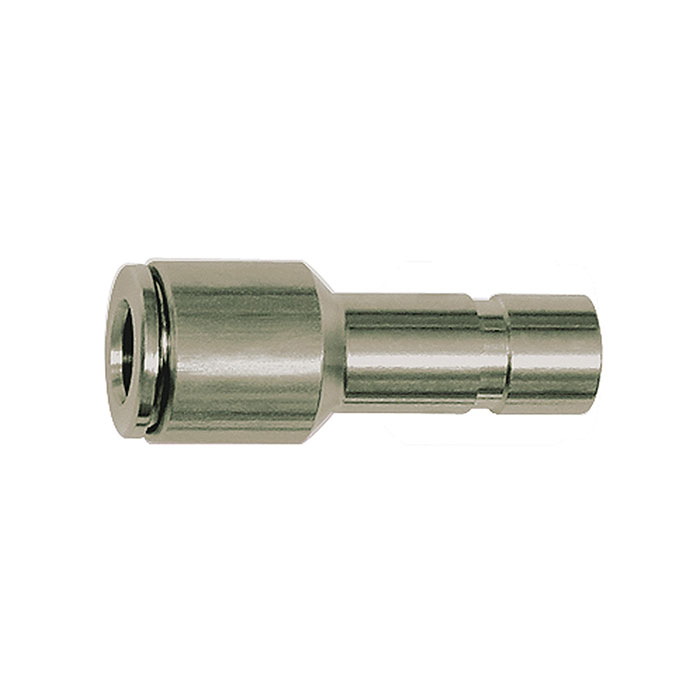

RIEGLER Straight push-in connector with plug nipple 6 mm, reducing
Type number: 59.0604 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight push-in connector made of stainless steel 1.4404, for pneumatic installation, max. 15 bar - type 59.0604 ES
The RIEGLER straight push-in connector, push-in nipple 6 mm, red, for hose Ø 4 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of stainless steel 1.4404 with FKM seals. Designed for a maximum operating pressure of 15 bar. The operating temperature is between -20 °C and 150 °C. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Sealing material | FKM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure max. | 15 bar |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Working pressure pulsating | 10 bar |
| for hose outer Ø | 4 mm |
| Plug nipple | 6 mm |
| Execution | reducing |
| L1 | 31 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
