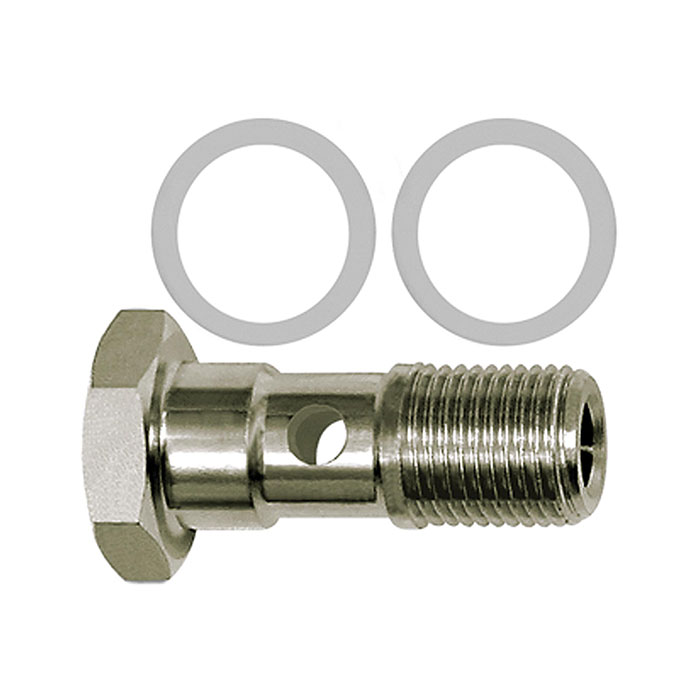

RIEGLER Hollow screw with PTFE sealing ring, Single, G 1/8
Type number: 60.018 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Banjo bolt made of stainless steel 1.4404, for pneumatic installation, max. 15 bar - Type 60.018 ES
The RIEGLER banjo bolt, PTFE sealing ring, single, G 1/8, stainless steel 1.4404 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of 1.4404 stainless steel with PTFE seals. Designed for a maximum operating pressure of 15 bar. The operating temperature is between -20 °C and 150 °C. Connection thread G 1/8 (DIN EN ISO 228-1) - suitable for common industry standards. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Sealing material | PTFE |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure max. | 15 bar |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Working pressure pulsating | 10 bar |
| Thread | G 1/8 |
| SW | 14 mm |
| Thread standard | DIN EN ISO 228-1 |
| Execution | Simple |

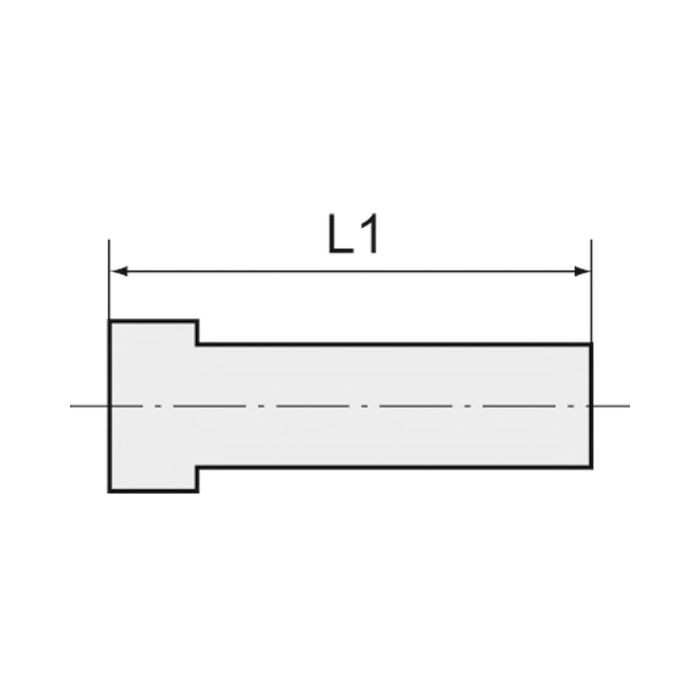

| L1 | 29 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
