RIEGLER Coupling nut, M8x1, for hose 4/2, AF 10, nickel-plated brass
Type number: 16.008-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass union nut, for hose 4/2 mm, max. 18 bar - Type 16.008-4
The RIEGLER union nut, M8x1.0, for hose 4/2 mm, SW 10, MS nickel-plated is a high-quality accessory from the RIEGLER range. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 300 °C. Connection thread M8x1.0 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 300 °C |
| Thread | M8x1.0 |
| SW | 10 mm |
| for hose | 4/2 mm |
| L1 | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | without |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110644] RIEGLER Coupling nut, M10x1, for hose 6/4, AF 12, nickel-plated brass](/web/image/product.template/181574/image_128/%5B110644%5D%20RIEGLER%20Coupling%20nut%2C%20M10x1%2C%20for%20hose%206-4%2C%20AF%2012%2C%20nickel-plated%20brass?unique=f82869f)
|
Type number: 16.010-6 |
0.43 € | |
![[110645] RIEGLER Coupling nut, M12x1, for hose 8/6, AF 14, nickel-plated brass](/web/image/product.template/181575/image_128/%5B110645%5D%20RIEGLER%20Coupling%20nut%2C%20M12x1%2C%20for%20hose%208-6%2C%20AF%2014%2C%20nickel-plated%20brass?unique=67bd018)
|
Type number: 16.012-8 |
0.48 € | |
![[110646] RIEGLER Coupling nut, M14x1, for hose 10/8, AF 16, nickel-plated brass](/web/image/product.template/181576/image_128/%5B110646%5D%20RIEGLER%20Coupling%20nut%2C%20M14x1%2C%20for%20hose%2010-8%2C%20AF%2016%2C%20nickel-plated%20brass?unique=b883e0b)
|
Type number: 16.014-10 |
0.54 € | |
![[110647] RIEGLER Coupling nut, M16x1, for hose 12/10, AF 19, nickel-plated brass](/web/image/product.template/181577/image_128/%5B110647%5D%20RIEGLER%20Coupling%20nut%2C%20M16x1%2C%20for%20hose%2012-10%2C%20AF%2019%2C%20nickel-plated%20brass?unique=d3ab395)
|
Type number: 16.016-12 |
0.63 € | |

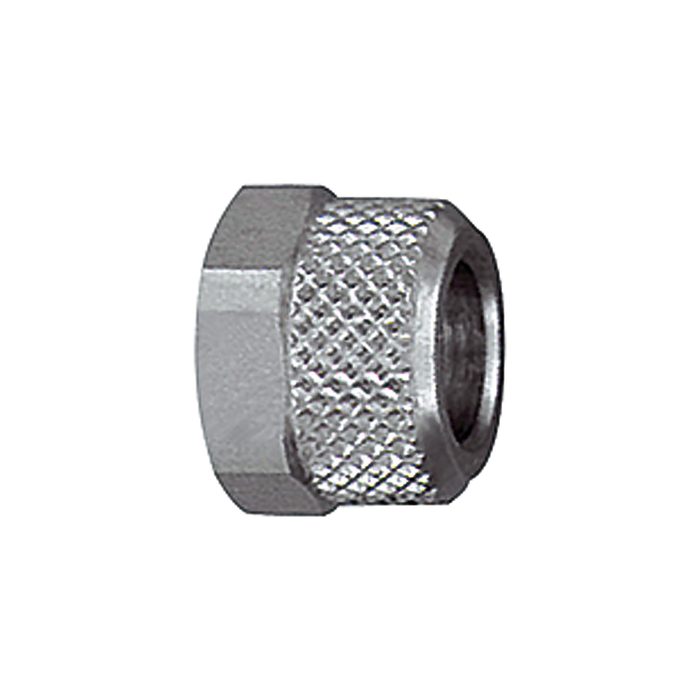

![[110641] RIEGLER Coupling nut, M7x0.75, for hose 5/3, AF 8, nickel-plated brass](/web/image/product.template/181571/image_128/%5B110641%5D%20RIEGLER%20Coupling%20nut%2C%20M7x0.75%2C%20for%20hose%205-3%2C%20AF%208%2C%20nickel-plated%20brass?unique=3423405)
|
Type number: 16.007-5 |
0.43 € | |
![[110642] RIEGLER Coupling nut, M8x0.5, for hose 6/4, AF 9, nickel-plated brass](/web/image/product.template/181572/image_128/%5B110642%5D%20RIEGLER%20Coupling%20nut%2C%20M8x0.5%2C%20for%20hose%206-4%2C%20AF%209%2C%20nickel-plated%20brass?unique=b31c610)
|
Type number: 16.008-6 |
0.43 € | |
![[110643] RIEGLER Coupling nut, M8x0.75, for hose 6/4, AF 8, nickel-plated brass](/web/image/product.template/181573/image_128/%5B110643%5D%20RIEGLER%20Coupling%20nut%2C%20M8x0.75%2C%20for%20hose%206-4%2C%20AF%208%2C%20nickel-plated%20brass?unique=b898a46)
|
Type number: 16.008-6.926 |
0.38 € | |
