RIEGLER Coupling nut with kink protection spring, for hose 6/4 mm
Type number: 19.0604
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Union nut with anti-kink spring made of nickel-plated brass, for hose 6/4, max. 18 bar - type 19.0604
The RIEGLER union nut with anti-kink spring, for hose 6/4, MS nickel-plated is a high-quality accessory from the RIEGLER range. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 300 °C. Connection thread M10x1 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 300 °C |
| Thread | M10x1 |
| SW | 12 mm |
| for hose | 6/4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | without |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110666] RIEGLER Coupling nut with kink protection spring, for hose 10/8 mm](/web/image/product.template/181596/image_128/%5B110666%5D%20RIEGLER%20Coupling%20nut%20with%20kink%20protection%20spring%2C%20for%20hose%2010-8%20mm?unique=470740e)
|
Type number: 19.1008 |
1.56 € | |

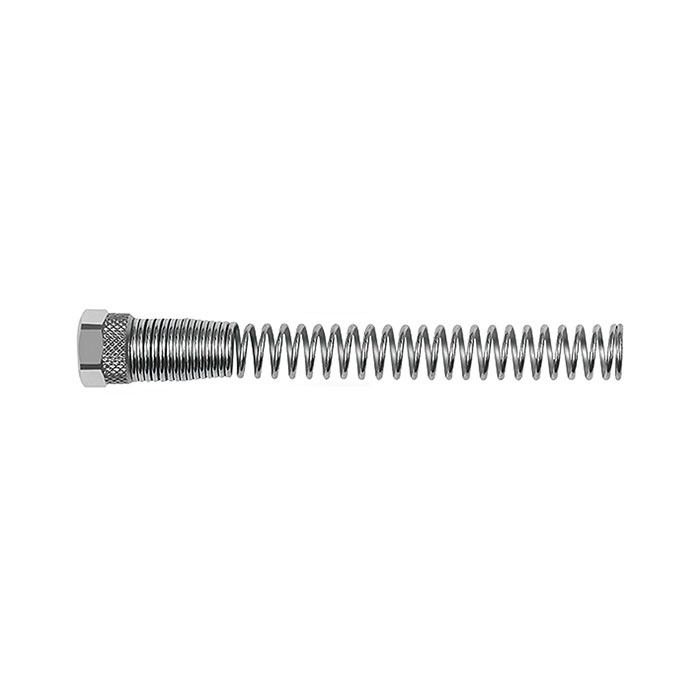

![[110667] RIEGLER Coupling nut with kink protection spring, for hose 12/10 mm](/web/image/product.template/181597/image_128/%5B110667%5D%20RIEGLER%20Coupling%20nut%20with%20kink%20protection%20spring%2C%20for%20hose%2012-10%20mm?unique=241a3fb)
|
