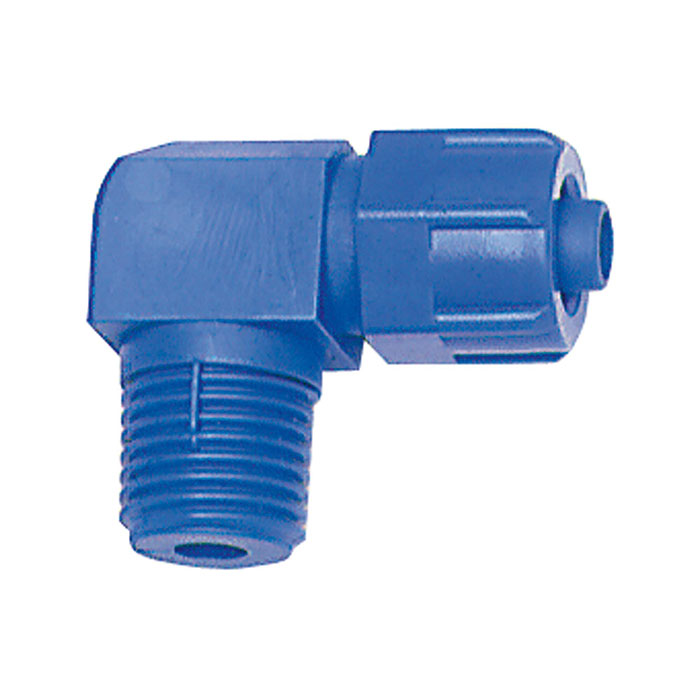

RIEGLER Angled fitting, rigid, R 1/4 o., for hose 12/9 mm
Type number: 13.768
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel-Verschraubung, starr, R 1/4 a., für Schlauch 12/9 mm, Betriebsdruck 0 - 10 bar, Temp. -10 °C bis 60 °C, POM
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Thread | R 1/4 |
| for hose | 12/9 mm |
| L1 | 28 mm |
| L2 | 23 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110736] RIEGLER Angled fitting, rigid, R 1/4 o., for hose 6/4 mm](/web/image/product.template/181666/image_128/%5B110736%5D%20RIEGLER%20Angled%20fitting%2C%20rigid%2C%20R%201-4%20o.%2C%20for%20hose%206-4%20mm?unique=590d15b)
|
Type number: 13.765 |
0.70 € | |

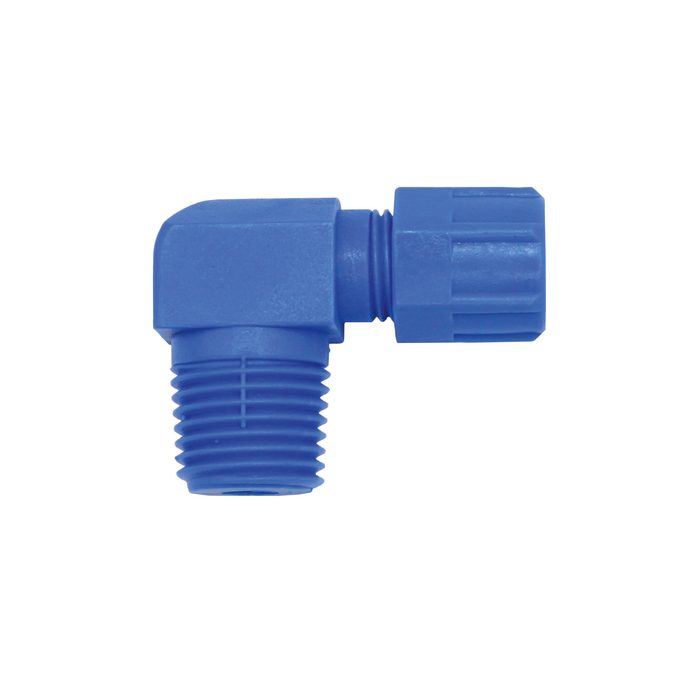

![[110737] RIEGLER Angled fitting, rigid, R 1/4 o., for hose 8/6 mm](/web/image/product.template/181667/image_128/%5B110737%5D%20RIEGLER%20Angled%20fitting%2C%20rigid%2C%20R%201-4%20o.%2C%20for%20hose%208-6%20mm?unique=351d9e3)
|
Type number: 13.766 |
0.70 € | |
![[110734] RIEGLER Angled fitting, rigid, R 1/8 o., for hose 6/4 mm](/web/image/product.template/181664/image_128/%5B110734%5D%20RIEGLER%20Angled%20fitting%2C%20rigid%2C%20R%201-8%20o.%2C%20for%20hose%206-4%20mm?unique=62da5f5)
|
Type number: 13.760 |
0.62 € | |
![[110735] RIEGLER Angled fitting, rigid, R 1/8 o., for hose 8/6 mm](/web/image/product.template/181665/image_128/%5B110735%5D%20RIEGLER%20Angled%20fitting%2C%20rigid%2C%20R%201-8%20o.%2C%20for%20hose%208-6%20mm?unique=d3f33e3)
|
Type number: 13.761 |
0.63 € | |
![[110739] RIEGLER Angled fitting, rigid, R 3/8 o., for hose 12/9 mm](/web/image/product.template/181669/image_128/%5B110739%5D%20RIEGLER%20Angled%20fitting%2C%20rigid%2C%20R%203-8%20o.%2C%20for%20hose%2012-9%20mm?unique=9def3eb)
|
Type number: 13.774 |
1.01 € | |
