RIEGLER Hollow screw, G 1/4, AF 17, Aluminium
Type number: 14/12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Banjo bolt for pneumatic installation, max. 10 bar, G 1/4 - type 14/12
The RIEGLER banjo bolt, G 1/4, SW 17, aluminum enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The operating pressure range is 0 bar to 10 bar. The temperature range is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Thread | G 1/4 |
| SW | 17 mm |

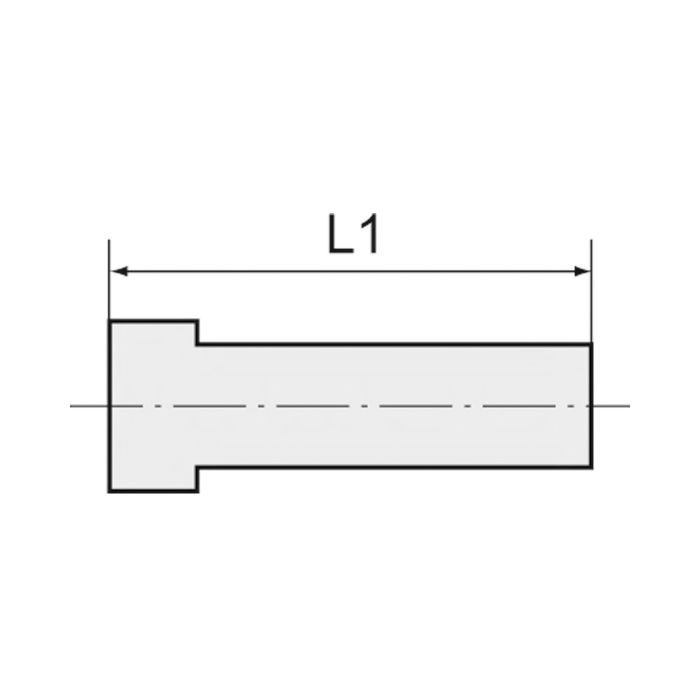

| L1 | 29 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

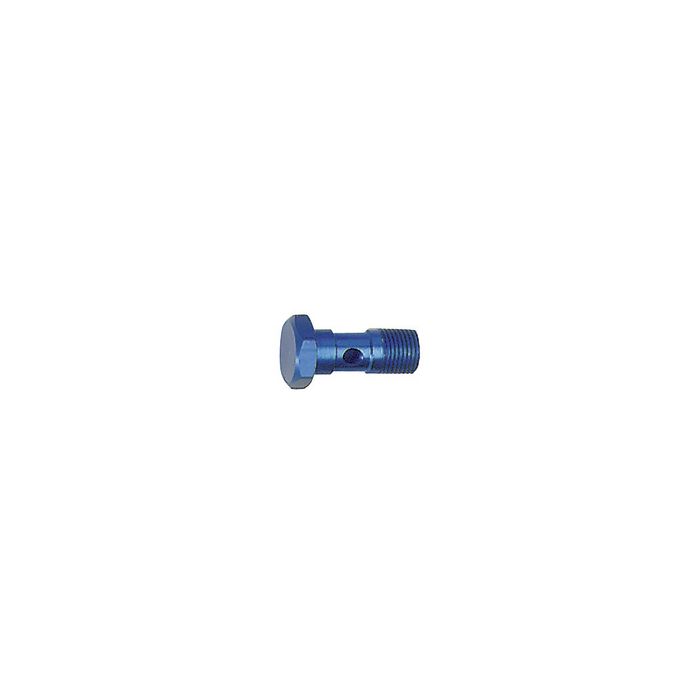

![[110757] RIEGLER Hollow screw, G 1/8, AF 14, Aluminium](/web/image/product.template/181687/image_128/%5B110757%5D%20RIEGLER%20Hollow%20screw%2C%20G%201-8%2C%20AF%2014%2C%20Aluminium?unique=9ab23dc)
|
