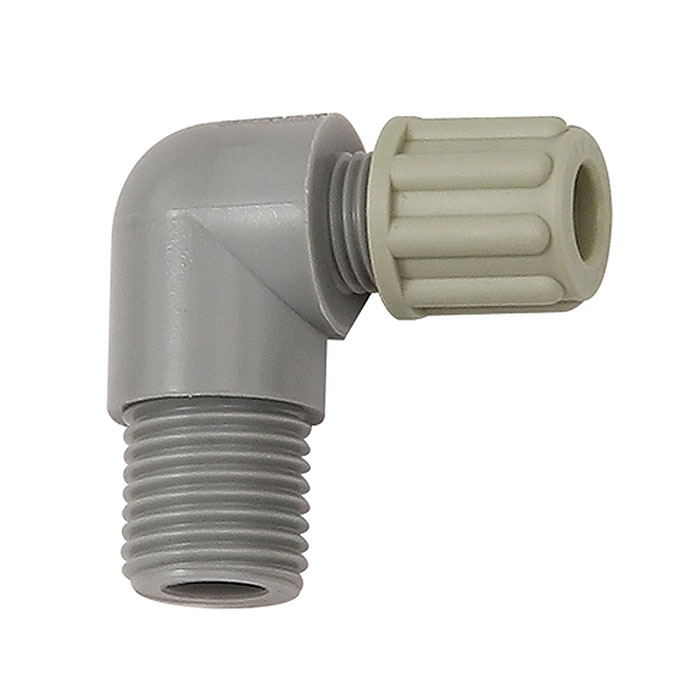

RIEGLER Angled screw-in fitting G 1/2 o., for hose 6/8 mm, PA
Type number: 140.82
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Winkel-Einschraubverschraubung G 1/2 a., für Schlauch 6/8 mm, Arbeitsdruck max. 10 bar (20 °C) / max. 1 bar (60 °C), PA
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | G 1/2 |
| for hose | 6/8 mm |
| L1 | 36 mm |
| L2 | 29 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110807] RIEGLER Angled screw-in fitting G 1/2 o., for hose 4/6 mm, PA](/web/image/product.template/181737/image_128/%5B110807%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-2%20o.%2C%20for%20hose%204-6%20mm%2C%20PA?unique=ee4df64)
|
Type number: 140.81 |
4.21 € | |
![[110809] RIEGLER Angled screw-in fitting G 1/2 o., for hose 8/10 mm, PA](/web/image/product.template/181739/image_128/%5B110809%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-2%20o.%2C%20for%20hose%208-10%20mm%2C%20PA?unique=3c9968d)
|
Type number: 140.83 |
6.14 € | |
![[110810] RIEGLER Angled screw-in fitting G 1/2 o., for hose 9/12 mm, PA](/web/image/product.template/181740/image_128/%5B110810%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-2%20o.%2C%20for%20hose%209-12%20mm%2C%20PA?unique=ebc9312)
|
Type number: 140.84 |
13.22 € | |
![[110799] RIEGLER Angled screw-in fitting G 1/4 o., for hose 4/6 mm, PA](/web/image/product.template/181729/image_128/%5B110799%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-4%20o.%2C%20for%20hose%204-6%20mm%2C%20PA?unique=cc462d8)
|
Type number: 140.61 |
2.00 € | |
![[110800] RIEGLER Angled screw-in fitting G 1/6 o., for hose 4/8 mm, PA](/web/image/product.template/181730/image_128/%5B110800%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-6%20o.%2C%20for%20hose%204-8%20mm%2C%20PA?unique=2d8646b)
|
Type number: 140.62 |
3.07 € | |
![[110801] RIEGLER Angled screw-in fitting G 1/8 o., for hose 4/10 mm, PA](/web/image/product.template/181731/image_128/%5B110801%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-8%20o.%2C%20for%20hose%204-10%20mm%2C%20PA?unique=5646280)
|
Type number: 140.63 |
5.03 € | |
![[110795] RIEGLER Angled screw-in fitting G 1/8 o., for hose 4/6 mm, PA](/web/image/product.template/181725/image_128/%5B110795%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-8%20o.%2C%20for%20hose%204-6%20mm%2C%20PA?unique=eb40dae)
|
Type number: 140.51 |
1.57 € | |
![[110796] RIEGLER Angled screw-in fitting G 1/8 o., for hose 6/8 mm, PA](/web/image/product.template/181726/image_128/%5B110796%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-8%20o.%2C%20for%20hose%206-8%20mm%2C%20PA?unique=691901d)
|
Type number: 140.52 |
2.81 € | |
![[110797] RIEGLER Angled screw-in fitting G 1/8 o., for hose 8/10 mm, PA](/web/image/product.template/181727/image_128/%5B110797%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-8%20o.%2C%20for%20hose%208-10%20mm%2C%20PA?unique=a64ba9b)
|
Type number: 140.53 |
4.00 € | |
![[110798] RIEGLER Angled screw-in fitting G 1/8 o., for hose 9/12 mm, PA](/web/image/product.template/181728/image_128/%5B110798%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-8%20o.%2C%20for%20hose%209-12%20mm%2C%20PA?unique=ba5a089)
|
Type number: 140.54 |
10.40 € | |
![[110802] RIEGLER Angled screw-in fitting G 1/9 o., for hose 4/12 mm, PA](/web/image/product.template/181732/image_128/%5B110802%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%201-9%20o.%2C%20for%20hose%204-12%20mm%2C%20PA?unique=42344d3)
|
Type number: 140.64 |
10.60 € | |
![[110803] RIEGLER Angled screw-in fitting G 3/8 o., for hose 4/6 mm, PA](/web/image/product.template/181733/image_128/%5B110803%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%203-8%20o.%2C%20for%20hose%204-6%20mm%2C%20PA?unique=2a94e7c)
|
Type number: 140.71 |
3.63 € | |
![[110804] RIEGLER Angled screw-in fitting G 3/8 o., for hose 6/8 mm, PA](/web/image/product.template/181734/image_128/%5B110804%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%203-8%20o.%2C%20for%20hose%206-8%20mm%2C%20PA?unique=3fd66da)
|
Type number: 140.72 |
3.84 € | |
![[110805] RIEGLER Angled screw-in fitting G 3/8 o., for hose 8/10 mm, PA](/web/image/product.template/181735/image_128/%5B110805%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%203-8%20o.%2C%20for%20hose%208-10%20mm%2C%20PA?unique=55917b4)
|
Type number: 140.73 |
6.07 € | |
![[110806] RIEGLER Angled screw-in fitting G 3/8 o., for hose 9/12 mm, PA](/web/image/product.template/181736/image_128/%5B110806%5D%20RIEGLER%20Angled%20screw-in%20fitting%20G%203-8%20o.%2C%20for%20hose%209-12%20mm%2C%20PA?unique=05aa6fd)
|
Type number: 140.74 |
11.11 € | |
