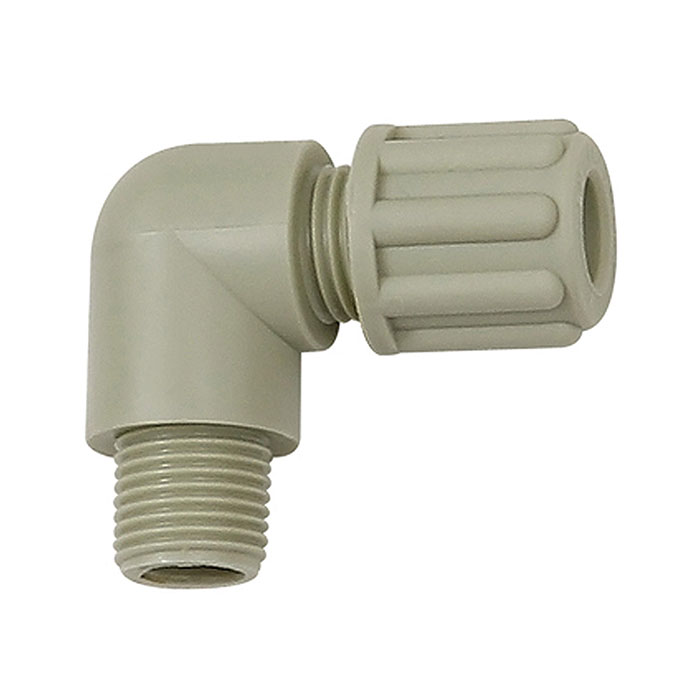

RIEGLER Angled screw-in fitting, G 3/8 o., for hose 4/6 mm, PP
Type number: 140.71-PP
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Winkel-Einschraubverschraubung, G 3/8 a., für Schlauch 4/6 mm, Arbeitsdruck max. 10 bar (20 °C) / max. 2,5 bar (90 °C), PP
| Material | Polypropylene (PP) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 90 °C | 2.5 bar |
| Thread | G 3/8 |
| for hose | 4/6 mm |

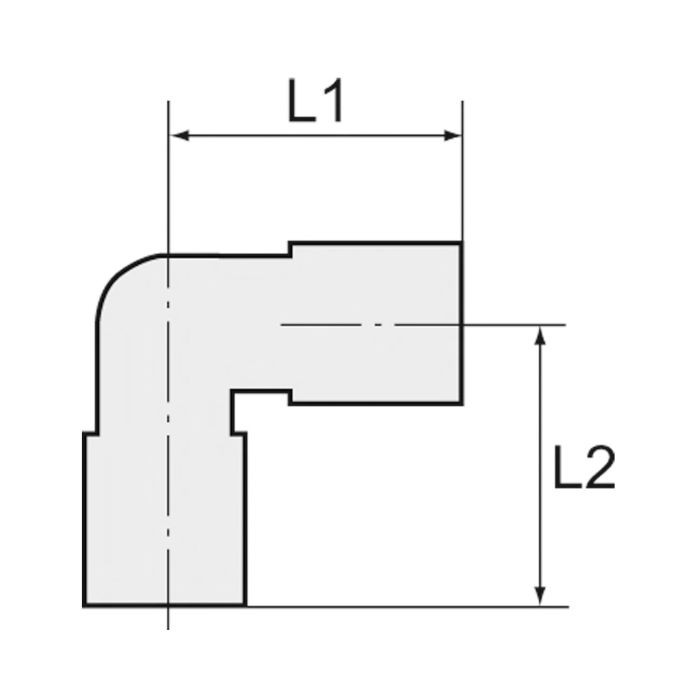

| L1 | 29 mm |
| L2 | 30 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110876] RIEGLER Angled screw-in fitting, G 1/2 o., for hose 4/6 mm, PP](/web/image/product.template/181806/image_128/%5B110876%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-2%20o.%2C%20for%20hose%204-6%20mm%2C%20PP?unique=64cf9f8)
|
Type number: 140.81-PP |
13.02 € | |
![[110877] RIEGLER Angled screw-in fitting, G 1/2 o., for hose 6/8 mm, PP](/web/image/product.template/181807/image_128/%5B110877%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-2%20o.%2C%20for%20hose%206-8%20mm%2C%20PP?unique=b61d0d9)
|
Type number: 140.82-PP |
14.64 € | |
![[110878] RIEGLER Angled screw-in fitting, G 1/2 o., for hose 8/10 mm, PP](/web/image/product.template/181808/image_128/%5B110878%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-2%20o.%2C%20for%20hose%208-10%20mm%2C%20PP?unique=a8d27c5)
|
Type number: 140.83-PP |
16.79 € | |
![[110879] RIEGLER Angled screw-in fitting, G 1/2 o., for hose 9/12 mm, PP](/web/image/product.template/181809/image_128/%5B110879%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-2%20o.%2C%20for%20hose%209-12%20mm%2C%20PP?unique=4bff8e4)
|
Type number: 140.84-PP |
34.28 € | |
![[110868] RIEGLER Angled screw-in fitting, G 1/4 o., for hose 4/6 mm, PP](/web/image/product.template/181798/image_128/%5B110868%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-4%20o.%2C%20for%20hose%204-6%20mm%2C%20PP?unique=e5e4a31)
|
Type number: 140.61-PP |
4.90 € | |
![[110869] RIEGLER Angled screw-in fitting, G 1/4 o., for hose 6/8 mm, PP](/web/image/product.template/181799/image_128/%5B110869%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-4%20o.%2C%20for%20hose%206-8%20mm%2C%20PP?unique=4ab0aba)
|
Type number: 140.62-PP |
10.12 € | |
![[110870] RIEGLER Angled screw-in fitting, G 1/8 o., for hose 4/10 mm, PP](/web/image/product.template/181800/image_128/%5B110870%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-8%20o.%2C%20for%20hose%204-10%20mm%2C%20PP?unique=1cff0cc)
|
Type number: 140.63-PP |
12.73 € | |
![[110864] RIEGLER Angled screw-in fitting, G 1/8 o., for hose 4/6 mm, PP](/web/image/product.template/181794/image_128/%5B110864%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-8%20o.%2C%20for%20hose%204-6%20mm%2C%20PP?unique=83a15d2)
|
Type number: 140.51-PP |
4.11 € | |
![[110865] RIEGLER Angled screw-in fitting, G 1/8 o., for hose 6/8 mm, PP](/web/image/product.template/181795/image_128/%5B110865%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-8%20o.%2C%20for%20hose%206-8%20mm%2C%20PP?unique=aaccf93)
|
Type number: 140.52-PP |
9.41 € | |
![[110866] RIEGLER Angled screw-in fitting, G 1/8 o., for hose 8/10 mm, PP](/web/image/product.template/181796/image_128/%5B110866%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-8%20o.%2C%20for%20hose%208-10%20mm%2C%20PP?unique=24afccf)
|
Type number: 140.53-PP |
12.34 € | |
![[110867] RIEGLER Angled screw-in fitting, G 1/8 o., for hose 9/12 mm, PP](/web/image/product.template/181797/image_128/%5B110867%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-8%20o.%2C%20for%20hose%209-12%20mm%2C%20PP?unique=e6c9e58)
|
Type number: 140.54-PP |
29.27 € | |
![[110871] RIEGLER Angled screw-in fitting, G 1/9 o., for hose 4/12 mm, PP](/web/image/product.template/181801/image_128/%5B110871%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%201-9%20o.%2C%20for%20hose%204-12%20mm%2C%20PP?unique=90c0661)
|
Type number: 140.64-PP |
29.51 € | |
![[110873] RIEGLER Angled screw-in fitting, G 3/8 o., for hose 6/8 mm, PP](/web/image/product.template/181803/image_128/%5B110873%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%203-8%20o.%2C%20for%20hose%206-8%20mm%2C%20PP?unique=49bb81f)
|
Type number: 140.72-PP |
13.67 € | |
![[110874] RIEGLER Angled screw-in fitting, G 3/8 o., for hose 8/10 mm, PP](/web/image/product.template/181804/image_128/%5B110874%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%203-8%20o.%2C%20for%20hose%208-10%20mm%2C%20PP?unique=9d3df65)
|
Type number: 140.73-PP |
14.46 € | |
![[110875] RIEGLER Angled screw-in fitting, G 3/8 o., for hose 9/12 mm, PP](/web/image/product.template/181805/image_128/%5B110875%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20G%203-8%20o.%2C%20for%20hose%209-12%20mm%2C%20PP?unique=653601e)
|
Type number: 140.74-PP |
30.19 € | |
