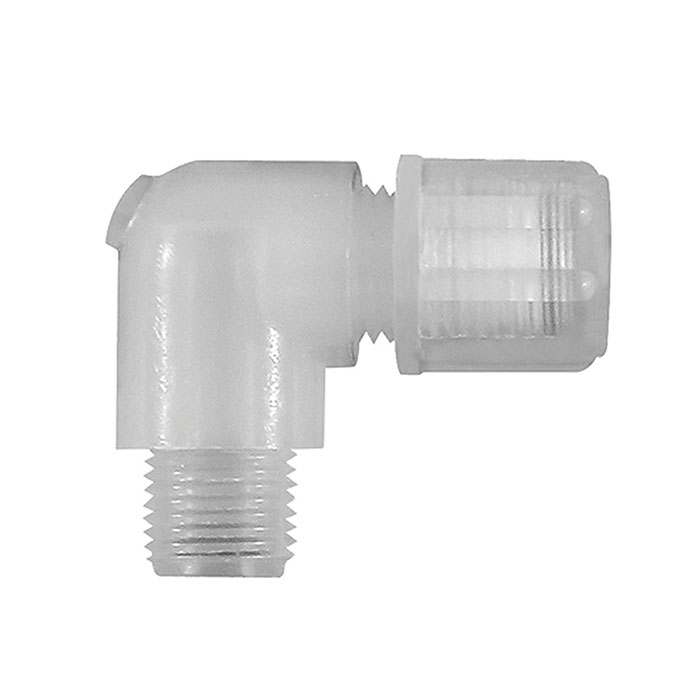

RIEGLER Angled screw-in fitting G 1/2 o., for hose 4/6 mm, PFA
Type number: 140.81.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting made of perfluoroalkoxy (PFA), for pneumatic installation, G 1/2 - type 140.81.603
The RIEGLER elbow screw-in fitting G 1/2 a., for hose 4/6 mm, PFA connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of perfluoroalkoxy (PFA). The operating temperature is between 0 °C and 200 °C. G 1/2 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Perfluoroalkoxy (PFA) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 200 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Operating pressure max. from 170 °C | 1 bar |
| Thread | G 1/2 |
| for hose | 4/6 mm |
| L1 | 32 mm |
| L2 | 29 mm |
| Class name | FLEX |
