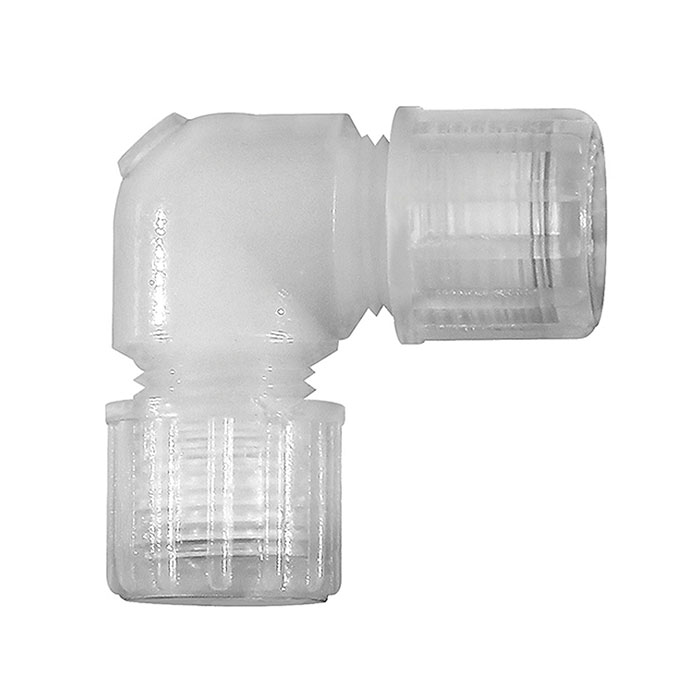

RIEGLER Angled hose fitting, for hose 6/8 mm, PFA
Type number: 140.12.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow hose connection made of perfluoroalkoxy (PFA), for pneumatic installation - type 140.12.603
The RIEGLER elbow hose connector, for 6/8 mm hose, PFA connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of perfluoroalkoxy (PFA). The operating temperature is between 0 °C and 200 °C. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Perfluoroalkoxy (PFA) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 200 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Operating pressure max. from 170 °C | 1 bar |
| for hose | 6/8 mm |
| L1 | 30 mm |
| L2 | 30 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110931] RIEGLER Angled hose fitting, for hose 4/6 mm, PFA](/web/image/product.template/181861/image_128/%5B110931%5D%20RIEGLER%20Angled%20hose%20fitting%2C%20for%20hose%204-6%20mm%2C%20PFA?unique=c0b6253)
|
Type number: 140.11.603 |
46.30 € | |
![[110933] RIEGLER Angled hose fitting, for hose 8/10 mm, PFA](/web/image/product.template/181863/image_128/%5B110933%5D%20RIEGLER%20Angled%20hose%20fitting%2C%20for%20hose%208-10%20mm%2C%20PFA?unique=064ab47)
|
Type number: 140.13.603 |
53.54 € | |
