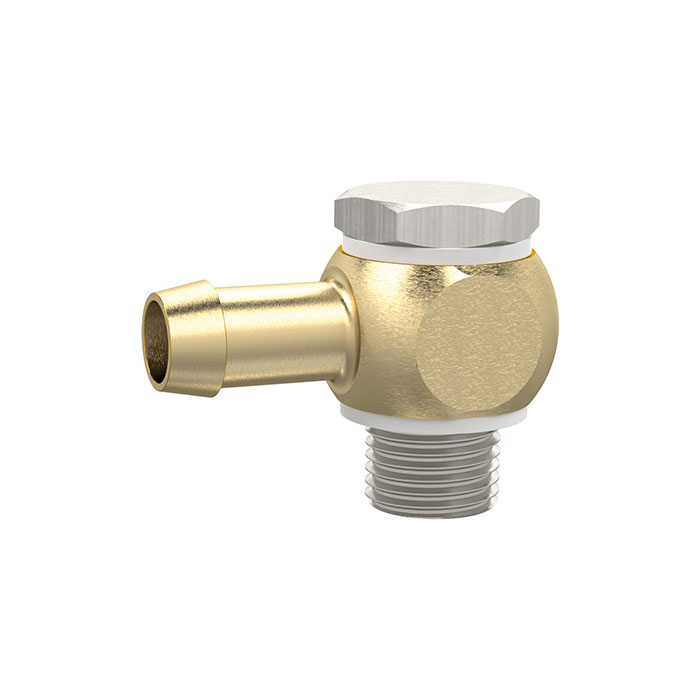

RIEGLER Pivoting bushing, G 1/8 o., for hose I.D. 6 mm
Type number: 74-026
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel spout made of nickel-plated brass (banjo bolt), brass (ring spout) - Type 74-026
The RIEGLER swivel nozzle, G 1/8 a., for hose LW 6, nickel-plated brass/brass connects compressed air and pneumatic lines securely and tightly. The housing is made of nickel-plated brass (banjo bolt), brass (ring grommet) with PVC seals. The operating pressure range is 0.95 bar to 15 bar. The temperature range is between -10 °C and 70 °C. G 1/8 connection thread - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -10 °C |
| Temperature range max. | 70 °C |
| Sealing material | PVC |
| Working pressure min. | 0.95 bar |
| Working pressure max. | 15 bar |
| Material | Nickel-plated brass (banjo bolt), brass (ring grommet) |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose | LW 6 mm |
| L1 | 26 mm |
| L2 | 28.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
