RIEGLER Pivoting bushing, G 1/4 o., for hose I.D. 9 mm
Type number: 74-049
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel nozzle, external thread cyl. G 1/4 for hose LW 9 mm, SW 17, MS nickel-plated/MS, working pressure -0.95-15 bar, operating temp. -10 °C-70 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 70 °C |
| Sealing material | PVC |
| Working pressure min. | 0.95 bar |
| Working pressure max. | 15 bar |
| Material | Nickel-plated brass (banjo bolt), brass (ring grommet) |
| Thread | G 1/4 |
| SW | 17 mm |
| for hose | LW 9 mm |
| L1 | 28 mm |
| L2 | 30.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

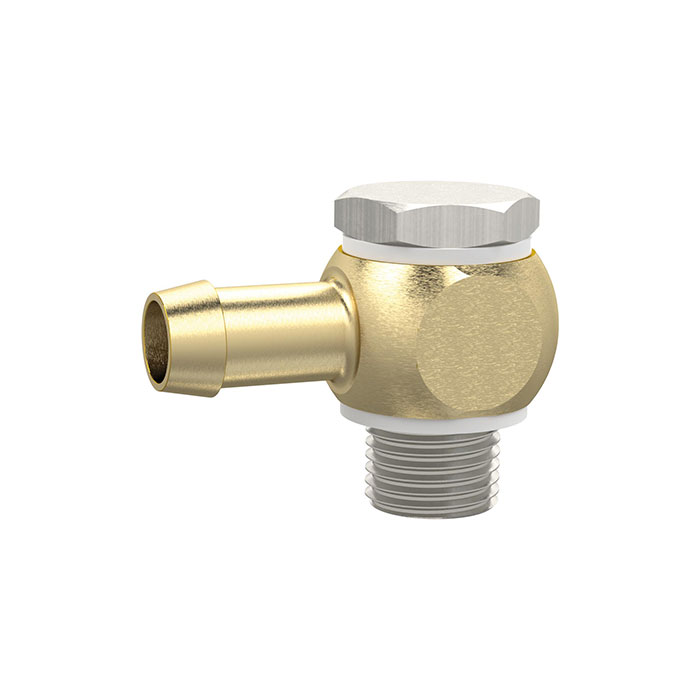

![[111325] RIEGLER Pivoting bushing, G 1/4 o., for hose I.D. 6 mm](/web/image/product.template/182246/image_128/%5B111325%5D%20RIEGLER%20Pivoting%20bushing%2C%20G%201-4%20o.%2C%20for%20hose%20I.D.%206%20mm?unique=6338b7d)
|
Type number: 74-046 |
3.70 € | |
![[111323] RIEGLER Pivoting bushing, G 1/8 o., for hose I.D. 4 mm](/web/image/product.template/182244/image_128/%5B111323%5D%20RIEGLER%20Pivoting%20bushing%2C%20G%201-8%20o.%2C%20for%20hose%20I.D.%204%20mm?unique=ae7c889)
|
Type number: 74-024 |
3.24 € | |
![[111324] RIEGLER Pivoting bushing, G 1/8 o., for hose I.D. 6 mm](/web/image/product.template/182245/image_128/%5B111324%5D%20RIEGLER%20Pivoting%20bushing%2C%20G%201-8%20o.%2C%20for%20hose%20I.D.%206%20mm?unique=29b29fa)
|
Type number: 74-026 |
3.24 € | |
![[111327] RIEGLER Pivoting bushing, G 3/8 o., for hose I.D. 6 mm](/web/image/product.template/182248/image_128/%5B111327%5D%20RIEGLER%20Pivoting%20bushing%2C%20G%203-8%20o.%2C%20for%20hose%20I.D.%206%20mm?unique=1d7a2ac)
|
Type number: 74-066 |
5.05 € | |
![[111328] RIEGLER Pivoting bushing, G 3/8 o., for hose I.D. 9 mm](/web/image/product.template/182249/image_128/%5B111328%5D%20RIEGLER%20Pivoting%20bushing%2C%20G%203-8%20o.%2C%20for%20hose%20I.D.%209%20mm?unique=72ae8db)
|
Type number: 74-069 |
5.05 € | |
