RIEGLER Extension piece, Long, G 1/4 o., G 1/4 i., nickel-plated brass
Type number: 234.06-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Extension piece made of nickel-plated brass CW614N (galvanized nickel-plated) - Type 234.06-N
The RIEGLER extension piece, long, G 1/4 a., G 1/4 i., SW17, MS v., L=51mm is a high-quality accessory from the RIEGLER range. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW | 17 mm |
| L1 | 51 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/4 |
| External thread | G 1/4 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111533] RIEGLER Extension piece, Long, G 1/4 o., G 1/4 i., nickel-plated brass](/web/image/product.template/183454/image_128/%5B111533%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-4%20o.%2C%20G%201-4%20i.%2C%20nickel-plated%20brass?unique=089626c)
|
Type number: 234.05-N |
1.37 € | |
![[111535] RIEGLER Extension piece, Long, G 1/4 o., G 1/4 i., nickel-plated brass](/web/image/product.template/183456/image_128/%5B111535%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-4%20o.%2C%20G%201-4%20i.%2C%20nickel-plated%20brass?unique=6e84587)
|
Type number: 234.07-N |
4.47 € | |

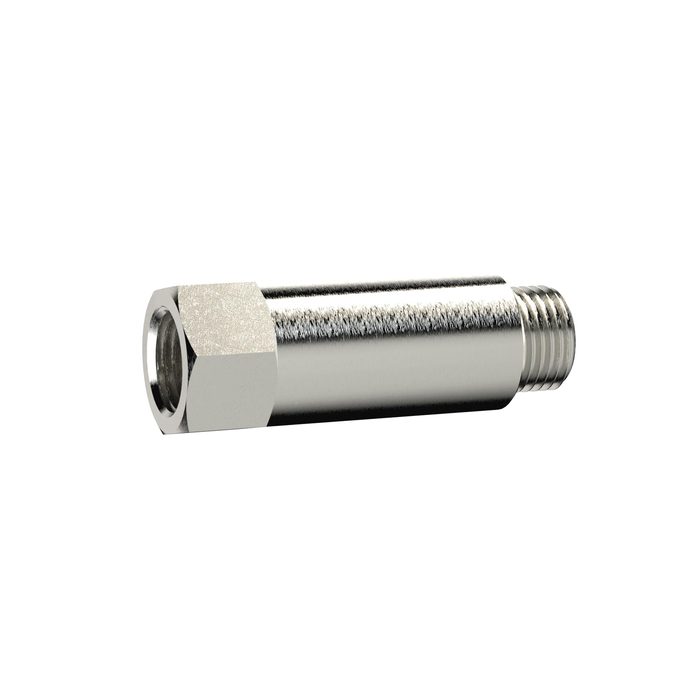

![[111529] RIEGLER Extension piece, Long, G 1/8 o., G 1/8 i., nickel-plated brass](/web/image/product.template/183450/image_128/%5B111529%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-8%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=c327865)
|
Type number: 234.01-N |
0.68 € | |
![[111530] RIEGLER Extension piece, Long, G 1/8 o., G 1/8 i., nickel-plated brass](/web/image/product.template/183451/image_128/%5B111530%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-8%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=2fe2805)
|
Type number: 234.02-N |
1.73 € | |

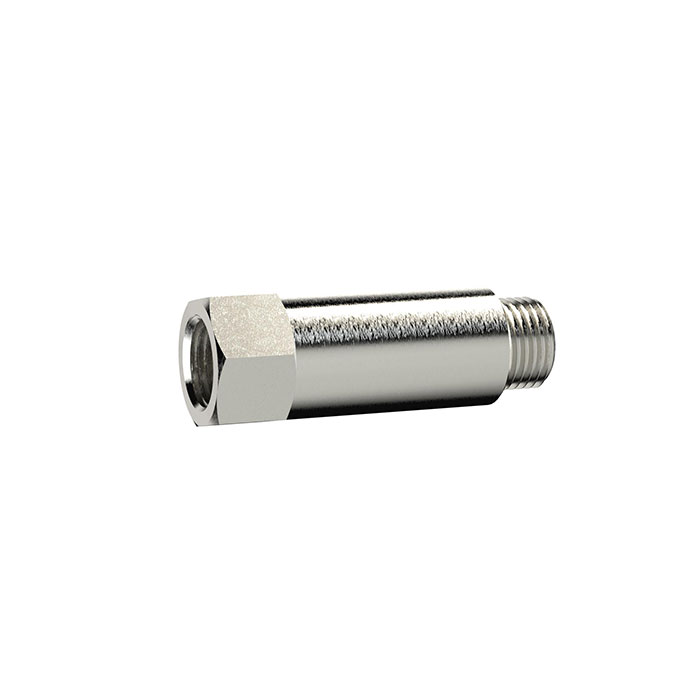

![[111531] RIEGLER Extension piece, Long, G 1/8 o., G 1/8 i., nickel-plated brass](/web/image/product.template/183452/image_128/%5B111531%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-8%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=28b07a3)
|
Type number: 234.03-N |
2.43 € | |
![[111532] RIEGLER Extension piece, Long, G 1/8 o., G 1/8 i., nickel-plated brass](/web/image/product.template/183453/image_128/%5B111532%5D%20RIEGLER%20Extension%20piece%2C%20Long%2C%20G%201-8%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=1b4d8e2)
|
Type number: 234.04-N |
4.68 € | |
