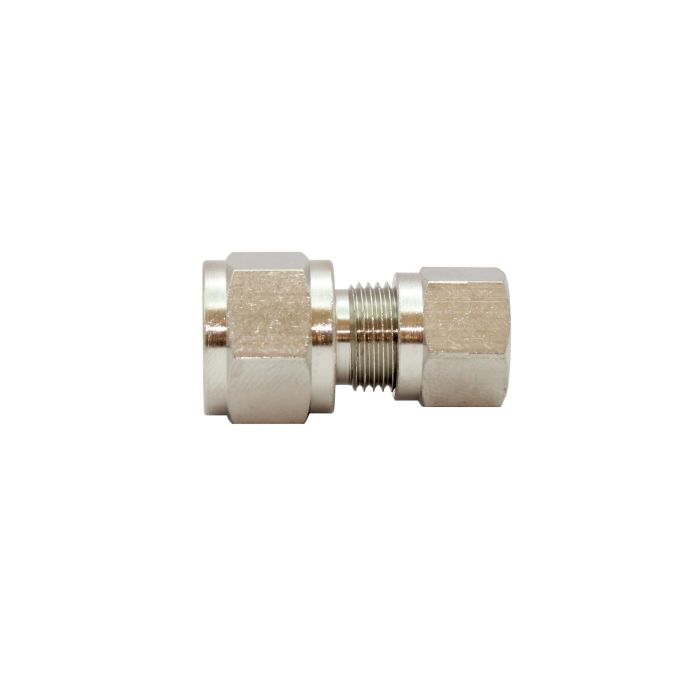

RIEGLER Pressure gauge fitting, G 3/8 i., Pipe exterior Ø 12 mm
Type number: N 68
EAN: 4047322162715
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure gauge fitting, G 3/8 i., outer tube Ø 12 mm, SW 20, SW1 22, max. operating pressure 60 bar, max. temperature 150 °C, MS nickel-plated.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | G 3/8 |
| SW 1 | 22 mm |
| SW | 20 mm |
| Tube outer Ø | 12 mm |
| L1 | 36 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
