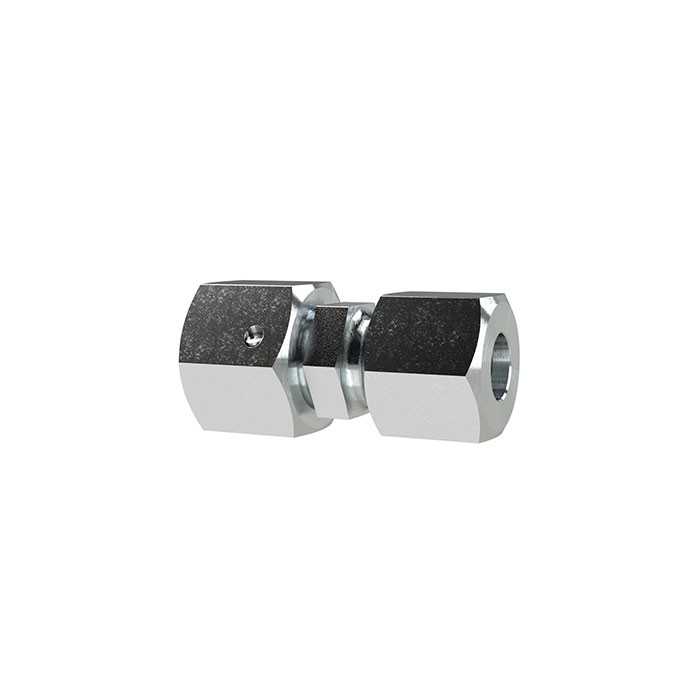

RIEGLER Reducing fitting, Sealing cone, Pipe exterior Ø 22/10 mm
Type number: V 565
EAN: 4047322212014
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Reducing union, sealing cone, nut M30x2.0 i., outer pipe Ø1 22 mm, outer pipe Ø2 10 mm, PN max. 160 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 27 mm |
| SW 2 | 19 mm |
| SW 3 | 36 mm |
| PN | 160 bar |
| L1 | 48 mm |
| Socket Ø | 22/10 mm |
| Class name | FLEX |
