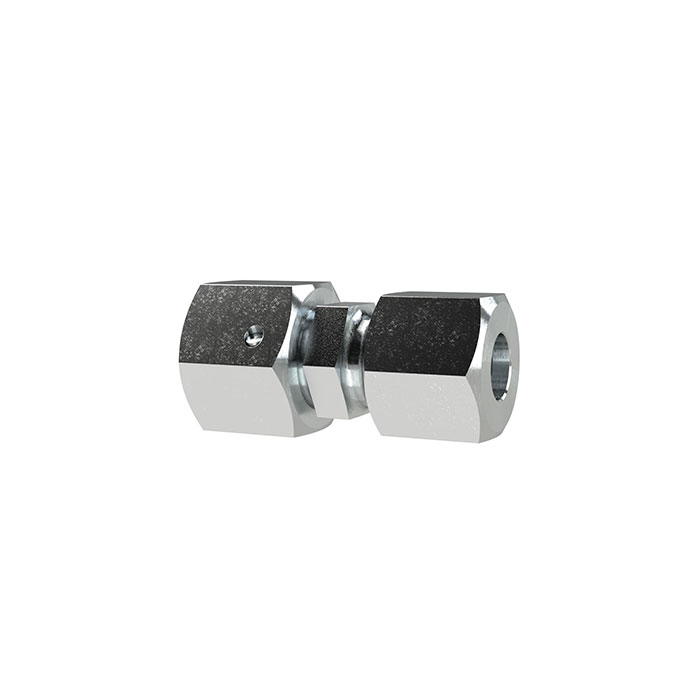

RIEGLER Reducing fitting, Sealing cone, Pipe exterior Ø 22/15 mm
Type number: V 570
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Reducing union, sealing cone, nut M30x2.0 i., outer pipe Ø1 22 mm, outer pipe Ø2 15 mm, PN max. 160 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 27 mm |
| SW 2 | 27 mm |
| SW 3 | 36 mm |
| PN | 160 bar |
| L1 | 49 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Socket Ø | 22/15 mm |
| Class name | FLEX |
