RIEGLER Angled fitting, Pipe exterior Ø 4 mm, galvanised steel
Type number: V 70
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow fitting made of galvanized steel (DIN 2353), for pneumatic installation - type V 70
The RIEGLER elbow union, pipe outer Ø 4 mm, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 10 mm |
| SW 2 | 9 mm |
| Tube outer Ø | 4 mm |
| PN | 100 bar |
| L1 | 21 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159739] RIEGLER Angled fitting, Pipe exterior Ø 10 mm, galvanised steel, 100 bar](/web/image/product.template/216134/image_128/%5B159739%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20galvanised%20steel%2C%20100%20bar?unique=8c7c327)
|
Typennummer: WV10SLST |
6.43 € | |
![[159740] RIEGLER Angled fitting, Pipe exterior Ø 12 mm, galvanised steel, 100 bar](/web/image/product.template/216135/image_128/%5B159740%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20galvanised%20steel%2C%20100%20bar?unique=6fb6bca)
|
Typennummer: WV12SLST |
7.46 € | |
![[112155] RIEGLER Angled fitting, Pipe exterior Ø 5 mm, galvanised steel](/web/image/product.template/184050/image_128/%5B112155%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%205%20mm%2C%20galvanised%20steel?unique=123ab56)
|
Type number: V 71 |
6.13 € | |
![[112156] RIEGLER Angled fitting, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/184051/image_128/%5B112156%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=3901901)
|
Type number: V 72 |
4.71 € | |

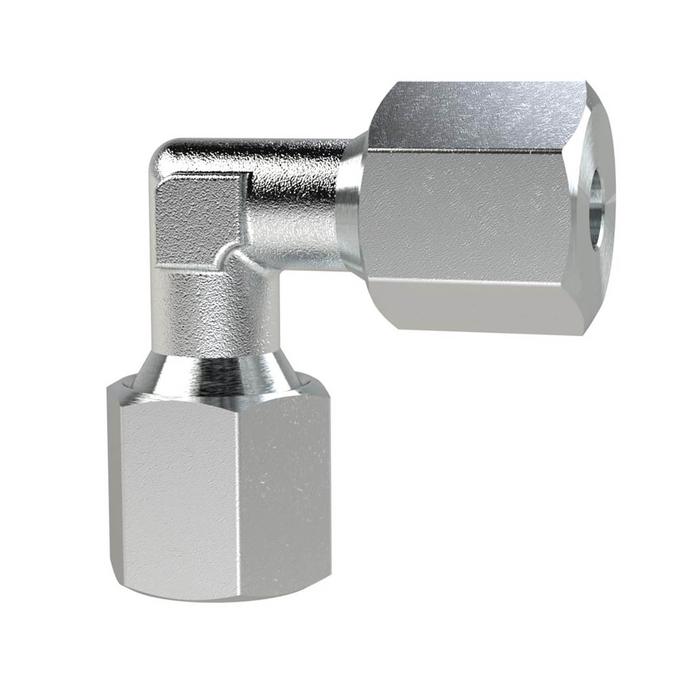

![[112157] RIEGLER Angled fitting, Pipe exterior Ø 8 mm, galvanised steel](/web/image/product.template/184052/image_128/%5B112157%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20galvanised%20steel?unique=e41f301)
|
