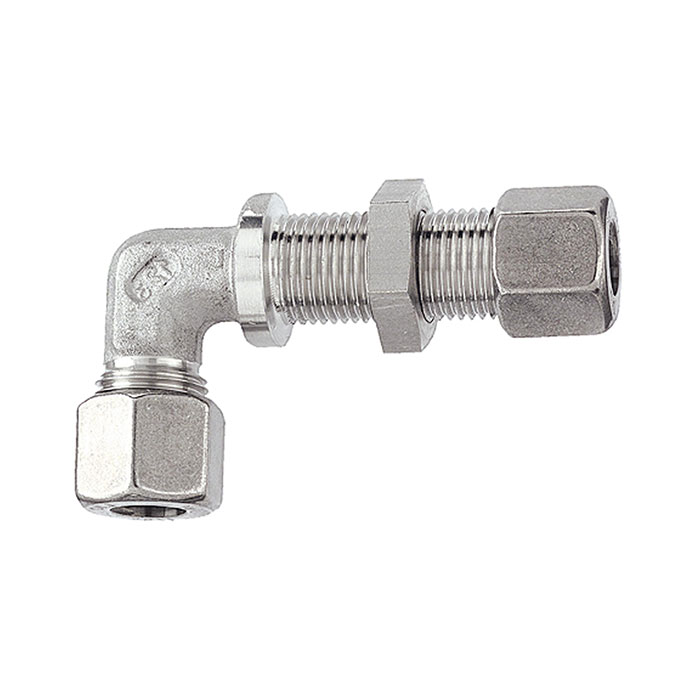

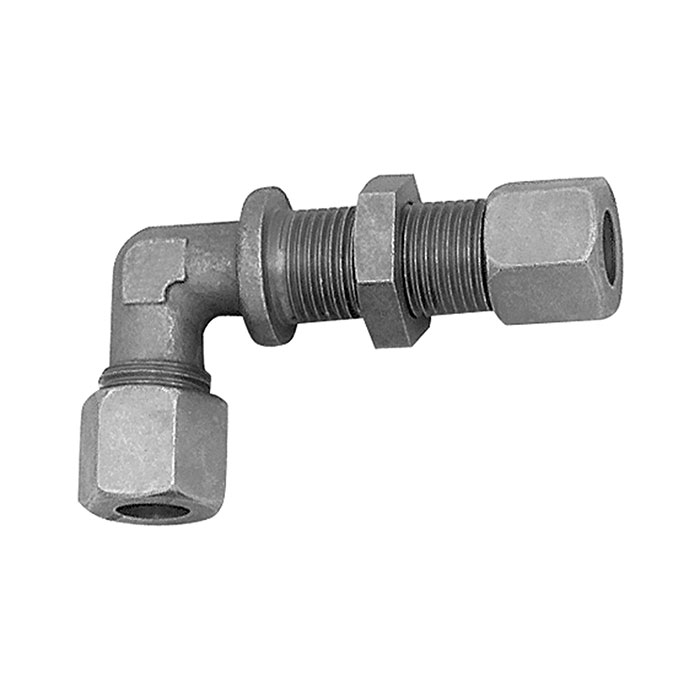

RIEGLER Angled bulkhead fitting, Pipe exterior Ø 8 mm, galvanised steel
Type number: V 181
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years.
Winkel-Schottverschraubung, Rohr-Außen-Ø 8 mm, PN max. 315 bar, SW1 17, SW2 19, SW3 12, Stahl verzinkt
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 17 mm |
| SW 2 | 19 mm |
| SW 3 | 12 mm |
| Tube outer Ø | 8 mm |
| PN | 315 bar |
| L1 | 59 mm |
| L2 | 29 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112214] RIEGLER Angled bulkhead fitting, Pipe exterior Ø 10 mm, galvanised steel](/web/image/product.template/184109/image_128/%5B112214%5D%20RIEGLER%20Angled%20bulkhead%20fitting%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20galvanised%20steel?unique=7eee795)
|
Type number: V 182 |
8.72 € | |
![[112215] RIEGLER Angled bulkhead fitting, Pipe exterior Ø 12 mm, galvanised steel](/web/image/product.template/184110/image_128/%5B112215%5D%20RIEGLER%20Angled%20bulkhead%20fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20galvanised%20steel?unique=2bd0c48)
|
Type number: V 183 |
10.72 € | |
![[112216] RIEGLER Angled bulkhead fitting, Pipe exterior Ø 15 mm, galvanised steel](/web/image/product.template/184111/image_128/%5B112216%5D%20RIEGLER%20Angled%20bulkhead%20fitting%2C%20Pipe%20exterior%20%C3%98%2015%20mm%2C%20galvanised%20steel?unique=7418326)
|
Type number: V 184 |
12.39 € | |
![[112212] RIEGLER Angled bulkhead fitting, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/184107/image_128/%5B112212%5D%20RIEGLER%20Angled%20bulkhead%20fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=57e0f7f)
|
Type number: V 180 |
7.57 € | |
![[159233] RIEGLER Bulkhead elbow connector, Pipe exterior Ø 18 mm, galvanised steel](/web/image/product.template/215064/image_128/%5B159233%5D%20RIEGLER%20Bulkhead%20elbow%20connector%2C%20Pipe%20exterior%20%C3%98%2018%20mm%2C%20galvanised%20steel?unique=19ce9e2)
|
Typennummer: WSV18LST |
18.93 € | |
![[159234] RIEGLER Bulkhead elbow connector, Pipe exterior Ø 22 mm, galvanised steel](/web/image/product.template/215065/image_128/%5B159234%5D%20RIEGLER%20Bulkhead%20elbow%20connector%2C%20Pipe%20exterior%20%C3%98%2022%20mm%2C%20galvanised%20steel?unique=38b1e35)
|
Typennummer: WSV22LST |
29.65 € | |

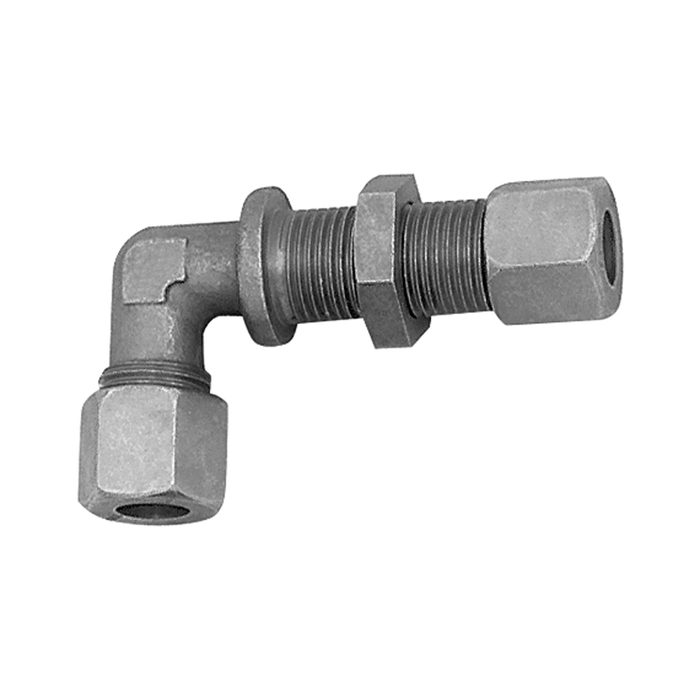

![[159235] RIEGLER Bulkhead elbow connector, Pipe exterior Ø 28 mm, galvanised steel](/web/image/product.template/215066/image_128/%5B159235%5D%20RIEGLER%20Bulkhead%20elbow%20connector%2C%20Pipe%20exterior%20%C3%98%2028%20mm%2C%20galvanised%20steel?unique=f299bfa)
|
Typennummer: WSV28LST |
45.78 € | |
