RIEGLER Pre-assembly supports for stainless steel cutting ring fitting
Type number: VMS 09
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pre-assembly spigot for pneumatic installation, M26x1.5 - type VMS 09
The RIEGLER pre-assembly spigot for stainless steel cutting ring fitting, M26x1.5 creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. Connection thread M26x1.5 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Thread | M26x1.5 |
| SW | 22 mm |
| Tube outer Ø | 18 mm |
| PN | 315 bar |
| L1 | 45 mm |
| L2 | 15 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112512] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185417/image_128/%5B112512%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=fe147bd)
|
Type number: VMS 01 |
20.75 € | |

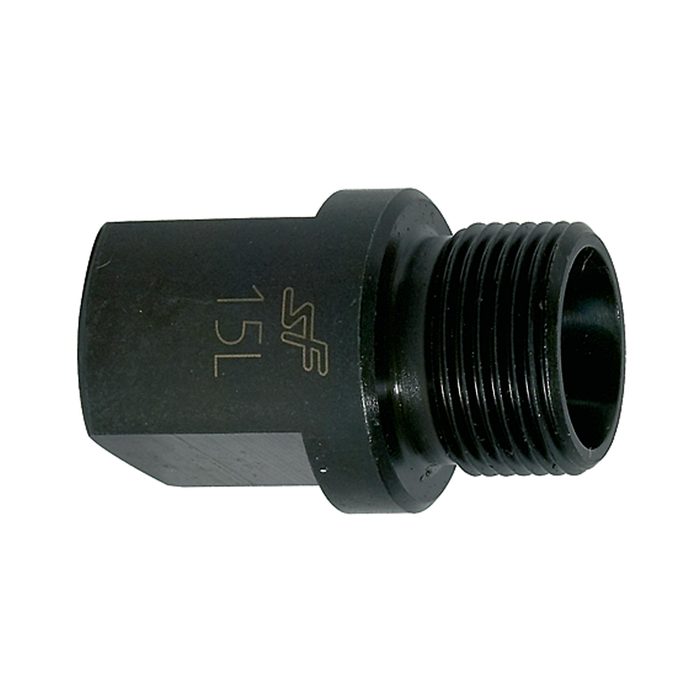

![[112513] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185418/image_128/%5B112513%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=50118b2)
|
Type number: VMS 02 |
20.75 € | |
![[112514] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185419/image_128/%5B112514%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=b7beca3)
|
Type number: VMS 03 |
22.98 € | |
![[112515] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185420/image_128/%5B112515%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=8054e62)
|
Type number: VMS 04 |
25.67 € | |
![[112516] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185421/image_128/%5B112516%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=a27ac00)
|
Type number: VMS 05 |
25.67 € | |
![[112517] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185422/image_128/%5B112517%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=bca0a6c)
|
Type number: VMS 06 |
27.32 € | |
![[112518] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185423/image_128/%5B112518%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=43bdf4e)
|
Type number: VMS 07 |
27.32 € | |
![[112519] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185424/image_128/%5B112519%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=2cf1fa7)
|
Type number: VMS 08 |
31.18 € | |
![[112521] RIEGLER Pre-assembly supports for stainless steel cutting ring fitting](/web/image/product.template/185426/image_128/%5B112521%5D%20RIEGLER%20Pre-assembly%20supports%20for%20stainless%20steel%20cutting%20ring%20fitting?unique=78730dd)
|
Type number: VMS 10 |
54.26 € | |
