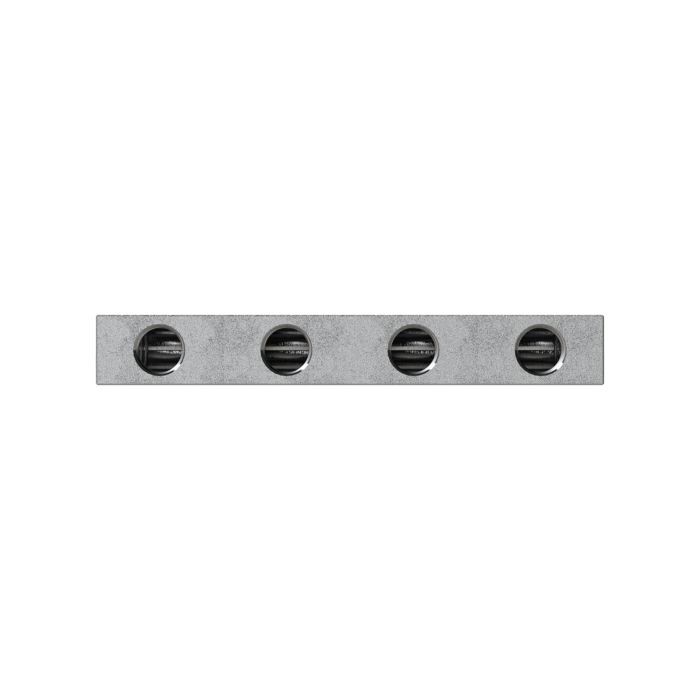

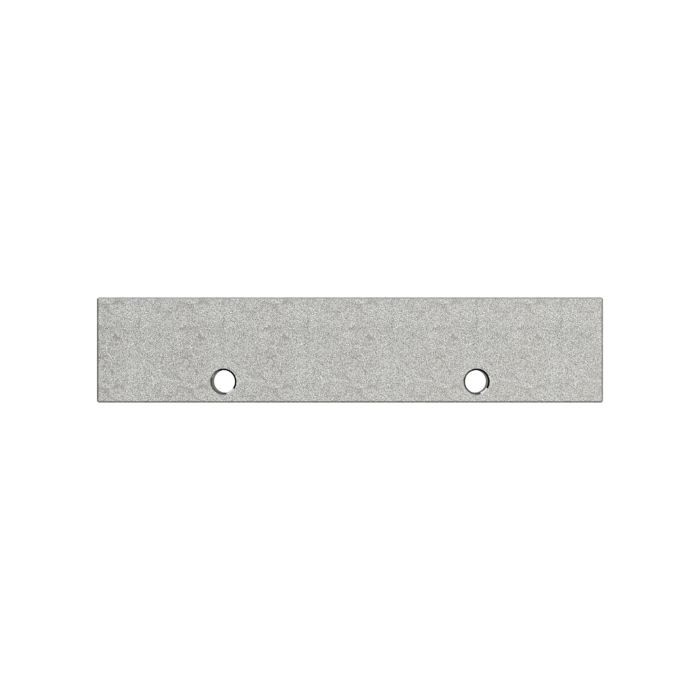

RIEGLER Distributor strip, Outlets one side, Input 2x1/8, Output 2 x M5
Type number: VT 15502
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Distribution manifold for pipeline construction - type VT 15502
The RIEGLER distribution manifold, outlets on one side, inlet 2x1/8, outlet 2xM5 branches a compressed air line to several outlets. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Input connection | 2 x 1/8 |
| Output connection | 2 x M5 |
| A | 20 mm |
| B | 15 mm |
| C | 15 mm |
| L | 45 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
