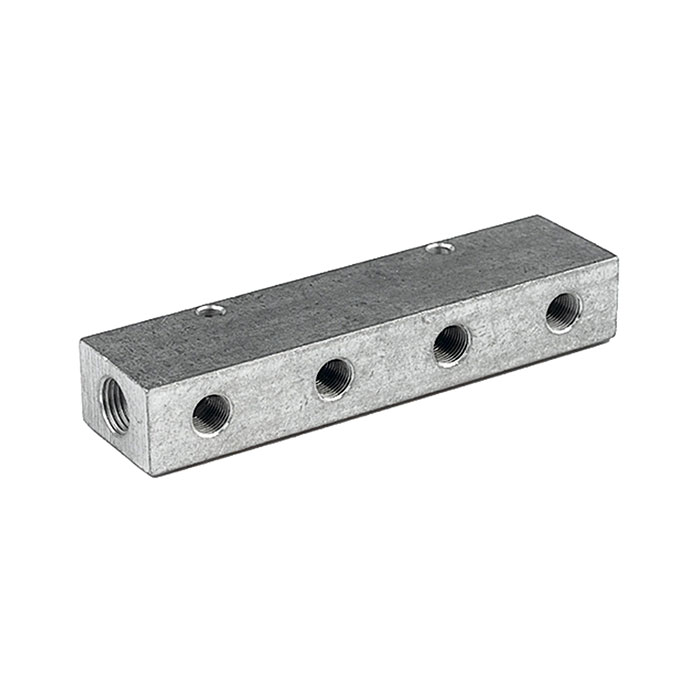

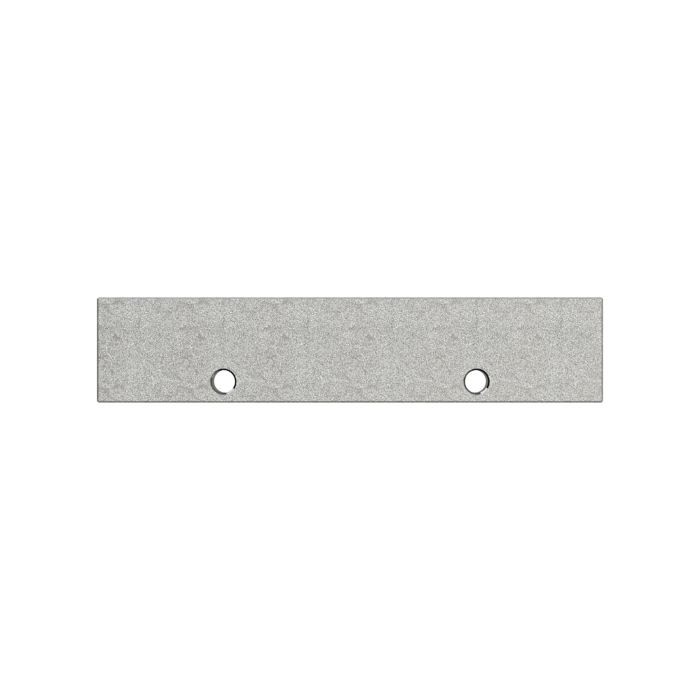

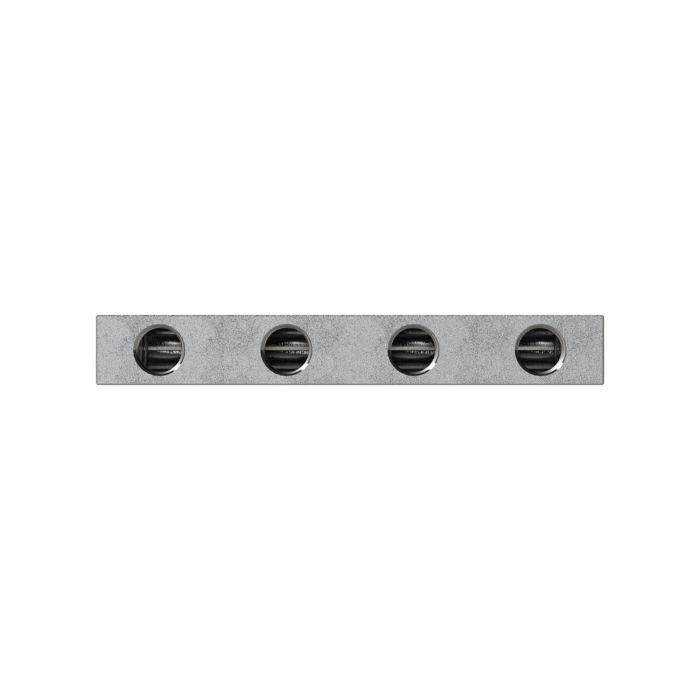

RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 4 x 1/4
Type number: VT 15204
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Verteilerleiste, Abgänge einseitig vorne, Eingang 2 x 3/8, Ausgang 4 x 1/4, Aluminium
| Input connection | 2 x 3/8 |
| Output connection | 4 x 1/4 |
| A | 30 mm |
| B | 18 mm |
| C | 36 mm |
| L | 144 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112528] RIEGLER Distributor strip, Outlets one side, Input 2x1/4, Output 2 x 1/8](/web/image/product.template/185433/image_128/%5B112528%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-4%2C%20Output%202%20x%201-8?unique=2650b90)
|
Type number: VT 15102 |
7.85 € | |
![[112529] RIEGLER Distributor strip, Outlets one side, Input 2x1/4, Output 3 x 1/8](/web/image/product.template/185434/image_128/%5B112529%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-4%2C%20Output%203%20x%201-8?unique=3841a4b)
|
Type number: VT 15103 |
8.95 € | |
![[112530] RIEGLER Distributor strip, Outlets one side, Input 2x1/4, Output 4 x 1/8](/web/image/product.template/185435/image_128/%5B112530%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-4%2C%20Output%204%20x%201-8?unique=211f833)
|
Type number: VT 15104 |
9.56 € | |
![[112531] RIEGLER Distributor strip, Outlets one side, Input 2x1/4, Output 6 x 1/8](/web/image/product.template/185436/image_128/%5B112531%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-4%2C%20Output%206%20x%201-8?unique=026a193)
|
Type number: VT 15106 |
12.00 € | |
![[112524] RIEGLER Distributor strip, Outlets one side, Input 2x1/8, Output 2 x M5](/web/image/product.template/185429/image_128/%5B112524%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-8%2C%20Output%202%20x%20M5?unique=6cbdb00)
|
Type number: VT 15502 |
7.47 € | |
![[112525] RIEGLER Distributor strip, Outlets one side, Input 2x1/8, Output 3 x M5](/web/image/product.template/185430/image_128/%5B112525%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-8%2C%20Output%203%20x%20M5?unique=354de8e)
|
Type number: VT 15503 |
9.75 € | |
![[112526] RIEGLER Distributor strip, Outlets one side, Input 2x1/8, Output 4 x M5](/web/image/product.template/185431/image_128/%5B112526%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-8%2C%20Output%204%20x%20M5?unique=103ec1f)
|
Type number: VT 15504 |
10.25 € | |
![[112527] RIEGLER Distributor strip, Outlets one side, Input 2x1/8, Output 6 x M5](/web/image/product.template/185432/image_128/%5B112527%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x1-8%2C%20Output%206%20x%20M5?unique=3b8dc0e)
|
Type number: VT 15506 |
11.46 € | |
![[112540] RIEGLER Distributor strip, Outlets one side, Input 2x2/8, Output 2 x 1/4](/web/image/product.template/185445/image_128/%5B112540%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x2-8%2C%20Output%202%20x%201-4?unique=25b9ecc)
|
Type number: VT 15402 |
10.67 € | |
![[112541] RIEGLER Distributor strip, Outlets one side, Input 2x2/8, Output 3 x 1/4](/web/image/product.template/185446/image_128/%5B112541%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x2-8%2C%20Output%203%20x%201-4?unique=efc253d)
|
Type number: VT 15403 |
15.43 € | |
![[112542] RIEGLER Distributor strip, Outlets one side, Input 2x2/8, Output 4 x 1/4](/web/image/product.template/185447/image_128/%5B112542%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x2-8%2C%20Output%204%20x%201-4?unique=b3c1f74)
|
Type number: VT 15404 |
19.46 € | |
![[112543] RIEGLER Distributor strip, Outlets one side, Input 2x2/8, Output 6 x 1/4](/web/image/product.template/185448/image_128/%5B112543%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x2-8%2C%20Output%206%20x%201-4?unique=b77338b)
|
Type number: VT 15406 |
26.31 € | |

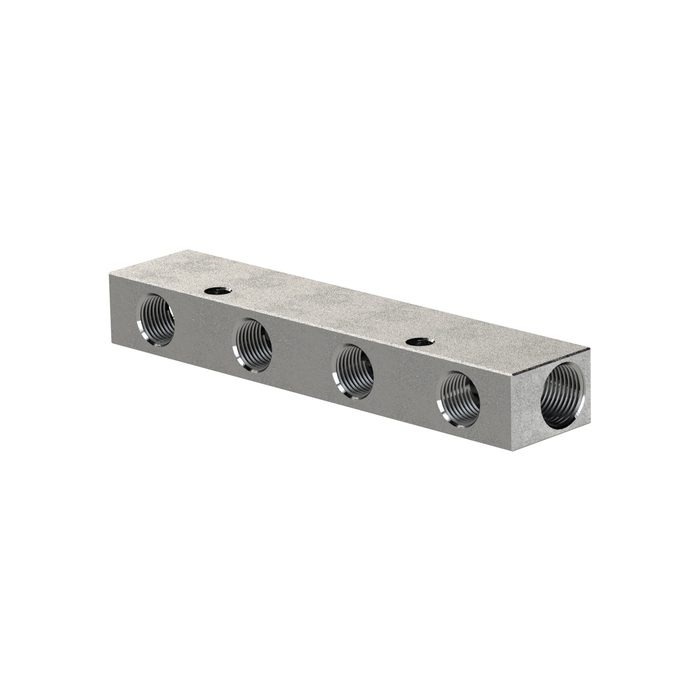

![[112532] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 2 x 1/4](/web/image/product.template/185437/image_128/%5B112532%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%202%20x%201-4?unique=809cfdf)
|
Type number: VT 15202 |
8.48 € | |
![[112536] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 2 x 1/8](/web/image/product.template/185441/image_128/%5B112536%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%202%20x%201-8?unique=6a00448)
|
Type number: VT 15302 |
8.85 € | |
![[112533] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 3 x 1/4](/web/image/product.template/185438/image_128/%5B112533%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%203%20x%201-4?unique=ac2c25b)
|
Type number: VT 15203 |
10.70 € | |
![[112537] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 3 x 1/8](/web/image/product.template/185442/image_128/%5B112537%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%203%20x%201-8?unique=bda5cb3)
|
Type number: VT 15303 |
10.28 € | |
![[112538] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 4 x 1/8](/web/image/product.template/185443/image_128/%5B112538%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%204%20x%201-8?unique=51fdeee)
|
Type number: VT 15304 |
11.03 € | |
![[112535] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 6 x 1/4](/web/image/product.template/185440/image_128/%5B112535%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%206%20x%201-4?unique=d6697ef)
|
Type number: VT 15206 |
14.67 € | |

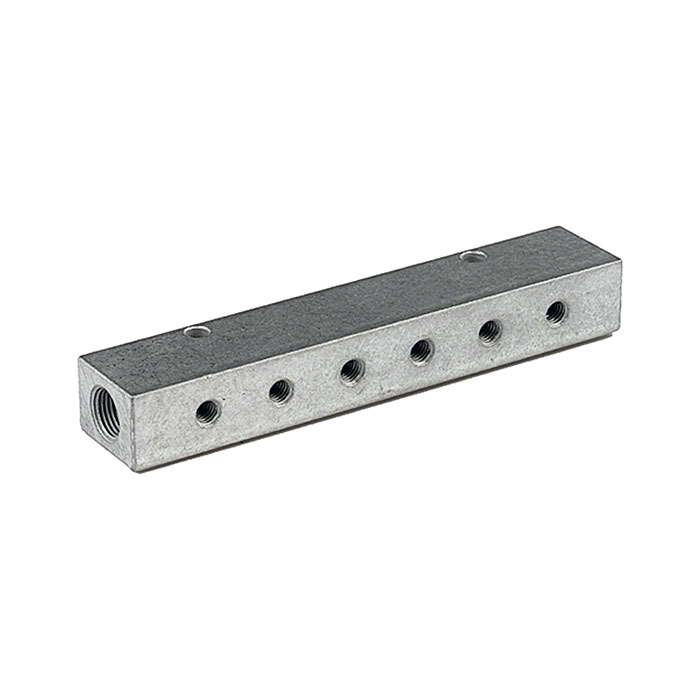

![[112539] RIEGLER Distributor strip, Outlets one side, Input 2x3/8, Output 6 x 1/8](/web/image/product.template/185444/image_128/%5B112539%5D%20RIEGLER%20Distributor%20strip%2C%20Outlets%20one%20side%2C%20Input%202x3-8%2C%20Output%206%20x%201-8?unique=f4a82c2)
|
