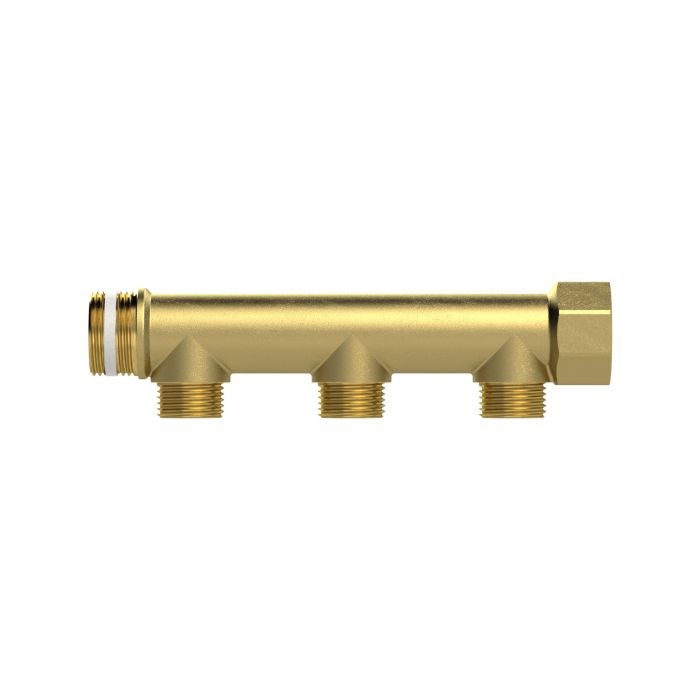

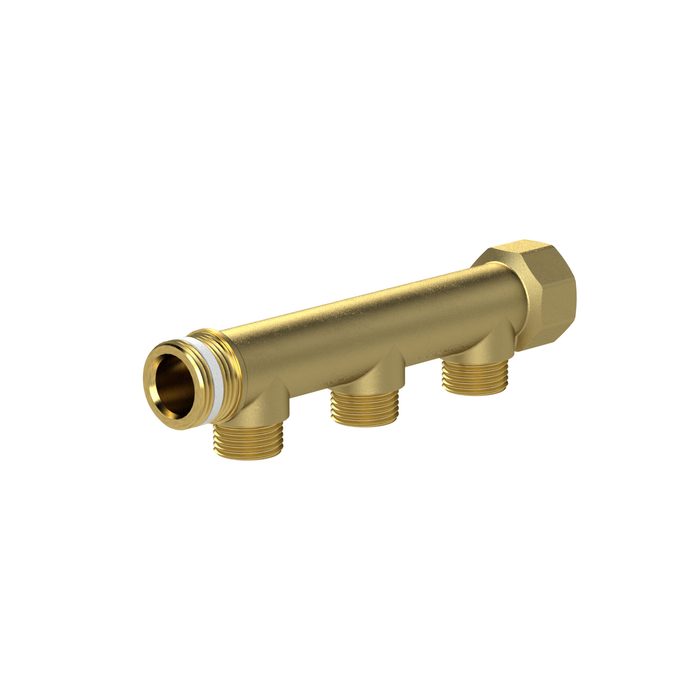

RIEGLER Distributor pipe, 3 outlets, Input 2x1, Output 3x1/2 ET, Brass
Type number: VT 1227
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Manifold for pipeline construction, max. 10 bar - Type VT 1227
The RIEGLER distribution pipe, 3 outlets, inlet 2x1, outlet 3x1/2 AG, MS branches a compressed air line to several outlets. with PTFE seals. Designed for a maximum operating pressure of 10 bar. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Sealing material | PTFE |
| Max. operating pressure | 10 bar |
| Input connection | 2 x 1 |
| Output connection | 3 x 1/2 AG |

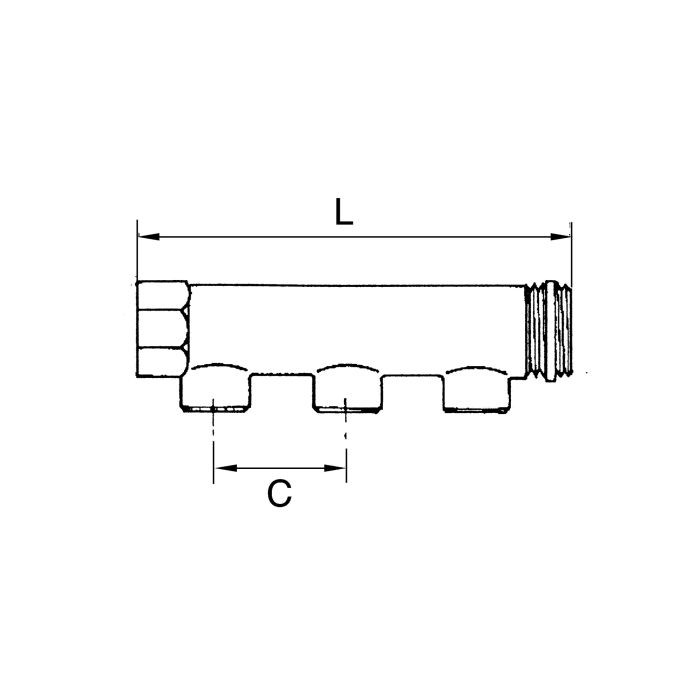

| C | 50 mm |
| L | 163 mm |
| Execution | Sealing ring on the AG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

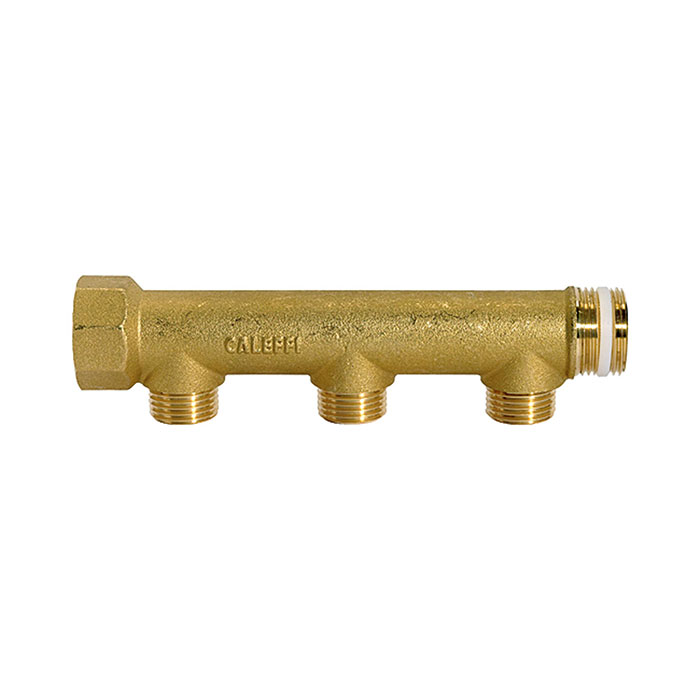

![[112570] RIEGLER Distributor pipe, 3 outlets, Input 2x1 1/4, Output 3x1/2 ET,](/web/image/product.template/185475/image_128/%5B112570%5D%20RIEGLER%20Distributor%20pipe%2C%203%20outlets%2C%20Input%202x1%201-4%2C%20Output%203x1-2%20ET%2C?unique=cb966bc)
|
Type number: VT 1229 |
21.90 € | |
![[112571] RIEGLER Distributor pipe, 3 outlets, Input 2x1 1/4, Output 3x1/2 IT,](/web/image/product.template/185476/image_128/%5B112571%5D%20RIEGLER%20Distributor%20pipe%2C%203%20outlets%2C%20Input%202x1%201-4%2C%20Output%203x1-2%20IT%2C?unique=7be8087)
|
Type number: VT 1230 |
21.90 € | |

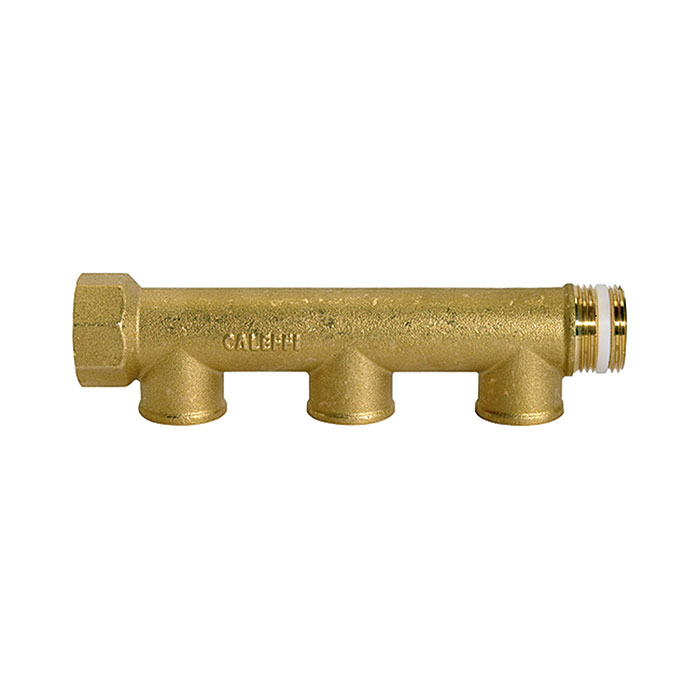

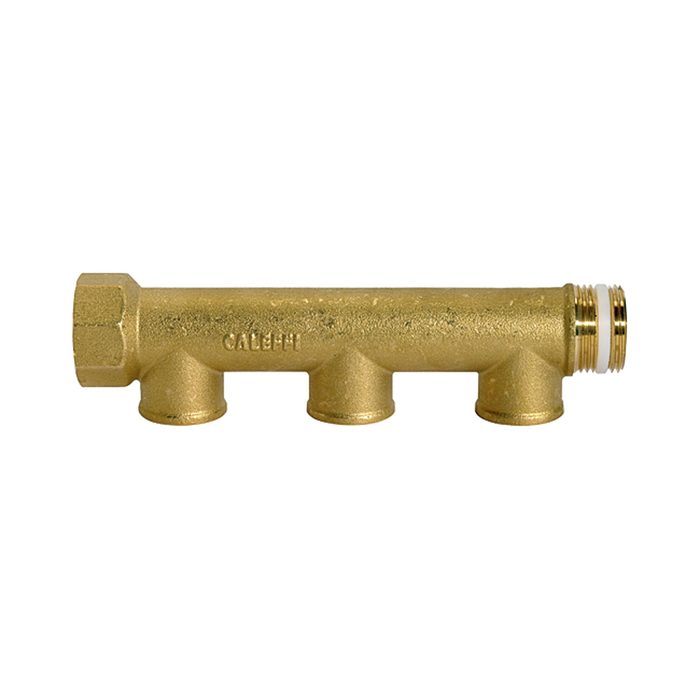

![[112569] RIEGLER Distributor pipe, 3 outlets, Input 2x1, Output 3x1/2 IT, Brass](/web/image/product.template/185474/image_128/%5B112569%5D%20RIEGLER%20Distributor%20pipe%2C%203%20outlets%2C%20Input%202x1%2C%20Output%203x1-2%20IT%2C%20Brass?unique=53471d2)
|
