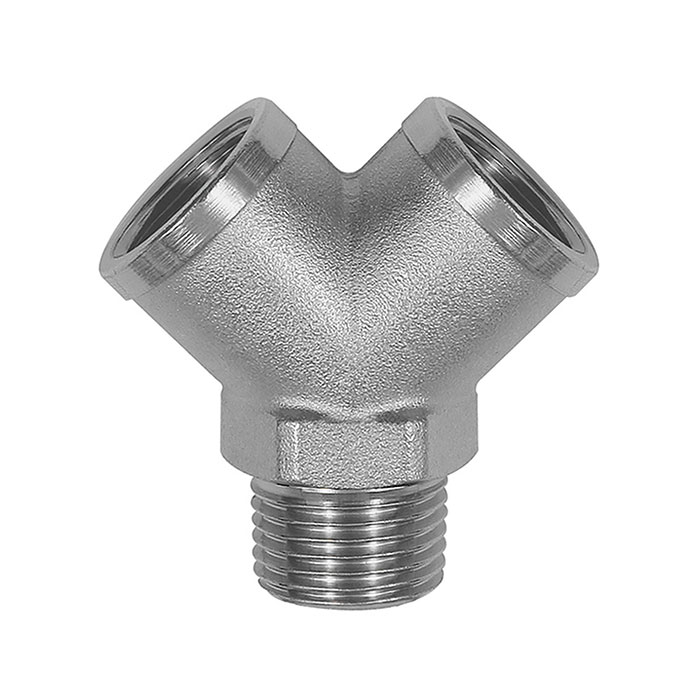

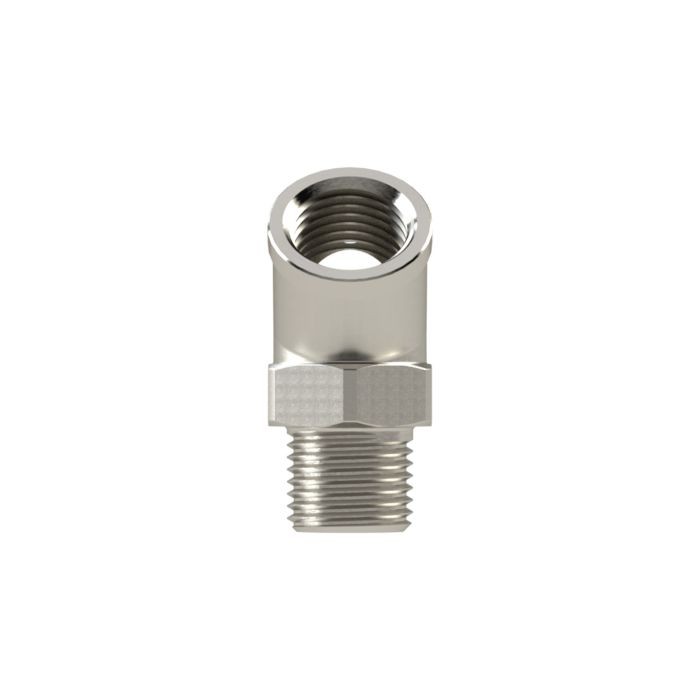

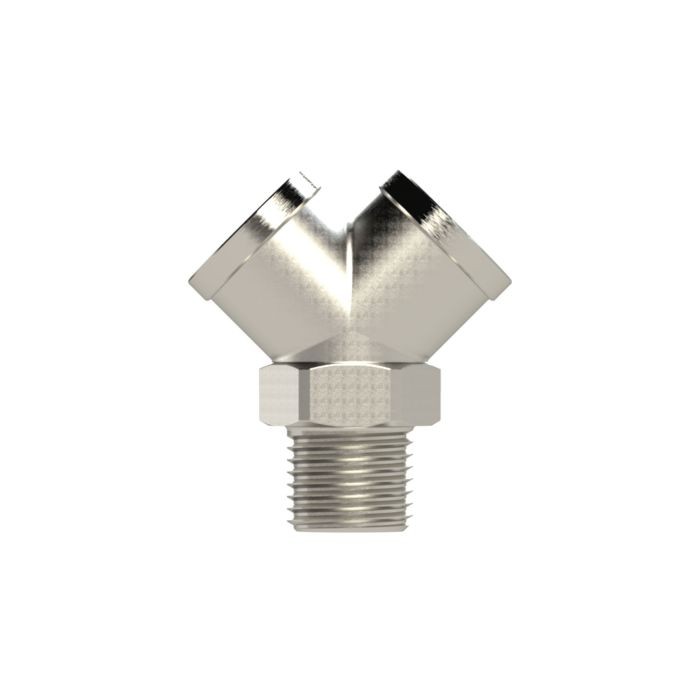

RIEGLER Distributor, 2-fold, R 1/4 ET, Outlets 2 x G 1/4 IT
Type number: 255.00/1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Distributor, 2-fold, R 1/4 exterior, Outlets 2 x G 1/4 IT, nickel-plated brass, Max. operating pressure 60 bar, Max. Temp. 150 °C
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Thread | R 1/4 AG |
| Departure | 2 x G 1/4 IG |

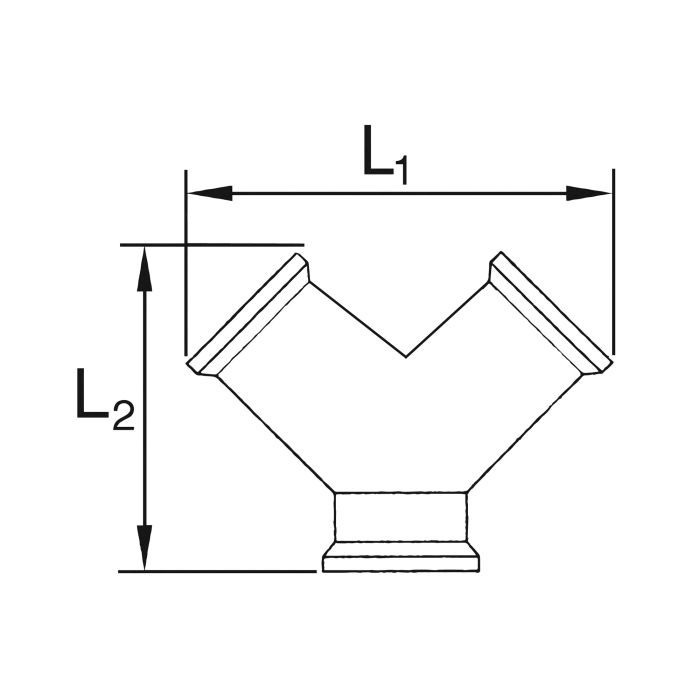

| L1 | 36 mm |
| L2 | 38 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112603] RIEGLER Distributor, 2-fold, G 1/2 IT, Outlets 2 x G 1/2 IT](/web/image/product.template/185508/image_128/%5B112603%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-2%20IT%2C%20Outlets%202%20x%20G%201-2%20IT?unique=adaaded)
|
Type number: 255.212 |
6.77 € | |
![[112601] RIEGLER Distributor, 2-fold, G 1/4 IT, Outlets 2 x G 1/4 IT](/web/image/product.template/185506/image_128/%5B112601%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-4%20IT%2C%20Outlets%202%20x%20G%201-4%20IT?unique=bc0de0a)
|
Type number: 255.214 |
3.51 € | |
![[112600] RIEGLER Distributor, 2-fold, G 1/8 IT, Outlets 2 x G 1/8 IT](/web/image/product.template/185505/image_128/%5B112600%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-8%20IT%2C%20Outlets%202%20x%20G%201-8%20IT?unique=95712ea)
|
Type number: 255.218 |
2.69 € | |

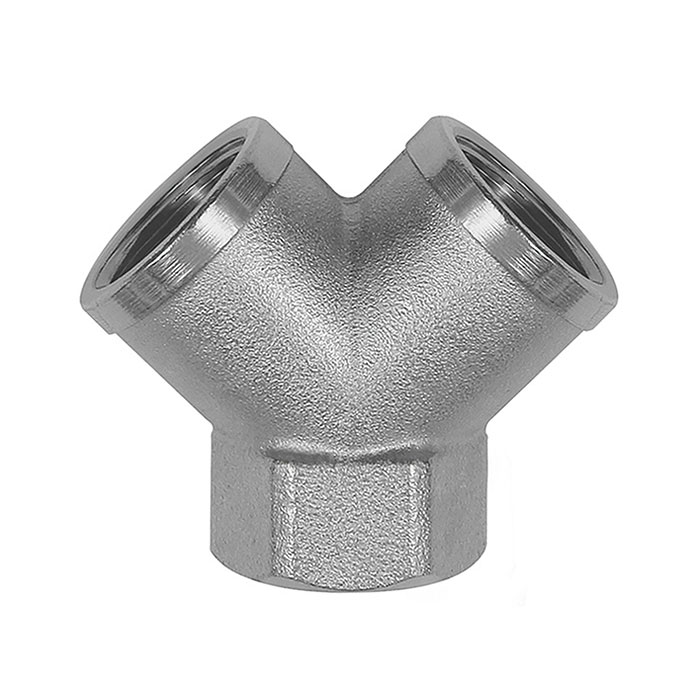

![[112602] RIEGLER Distributor, 2-fold, G 3/8 IT, Outlets 2 x G 3/8 IT](/web/image/product.template/185507/image_128/%5B112602%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%203-8%20IT%2C%20Outlets%202%20x%20G%203-8%20IT?unique=e79b021)
|
