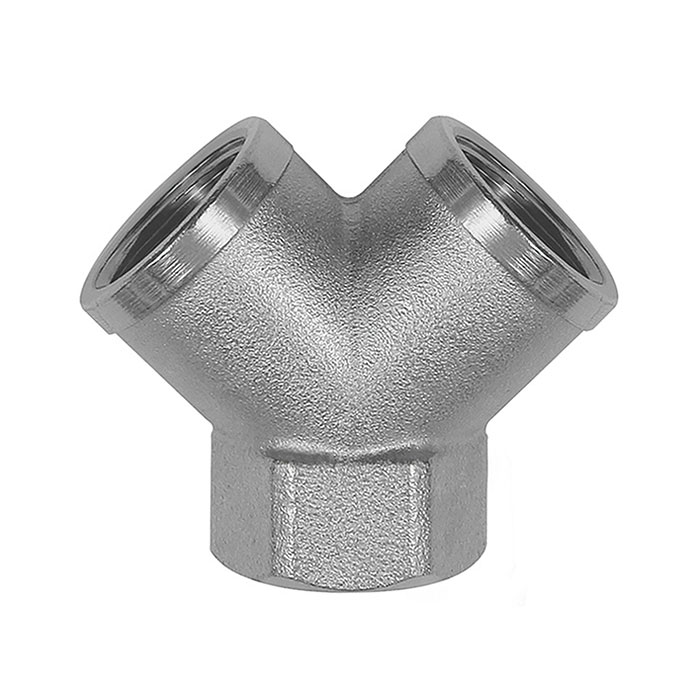

RIEGLER Distributor, 2-fold, G 3/8 IT, Outlets 2 x G 3/8 IT
Type number: 255.238
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Manifold for pipeline construction, max. 60 bar, G 3/8 female thread - Type 255.238
The RIEGLER manifold, 2-way, G 3/8 female, outlets 2 x G 3/8 female, brass nickel-plated branches a compressed air line to several outlets. Designed for a maximum operating pressure of 60 bar. Connection thread G 3/8 female thread - suitable for common industry standards. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Thread | G 3/8 IG |
| Departure | 2 x G 3/8 IG |

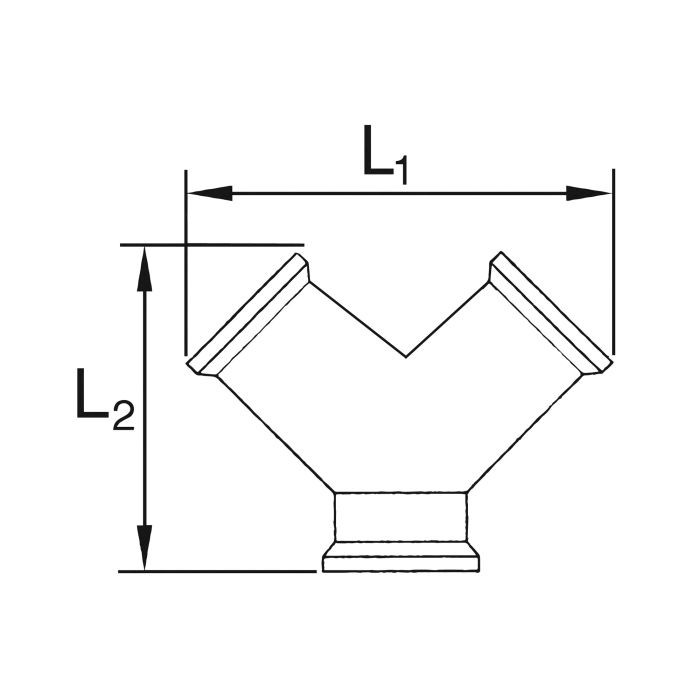

| L1 | 41 mm |
| L2 | 37 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112603] RIEGLER Distributor, 2-fold, G 1/2 IT, Outlets 2 x G 1/2 IT](/web/image/product.template/185508/image_128/%5B112603%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-2%20IT%2C%20Outlets%202%20x%20G%201-2%20IT?unique=cc46a16)
|
Type number: 255.212 |
6.70 € | |
![[112601] RIEGLER Distributor, 2-fold, G 1/4 IT, Outlets 2 x G 1/4 IT](/web/image/product.template/185506/image_128/%5B112601%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-4%20IT%2C%20Outlets%202%20x%20G%201-4%20IT?unique=081c613)
|
Type number: 255.214 |
3.47 € | |
![[112600] RIEGLER Distributor, 2-fold, G 1/8 IT, Outlets 2 x G 1/8 IT](/web/image/product.template/185505/image_128/%5B112600%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-8%20IT%2C%20Outlets%202%20x%20G%201-8%20IT?unique=988fbb3)
|
Type number: 255.218 |
2.67 € | |
![[112599] RIEGLER Distributor, 2-fold, R 1/2 ET, Outlets 2 x G 1/2 IT](/web/image/product.template/185504/image_128/%5B112599%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20R%201-2%20ET%2C%20Outlets%202%20x%20G%201-2%20IT?unique=4c4beb3)
|
Type number: 255.012 |
7.24 € | |

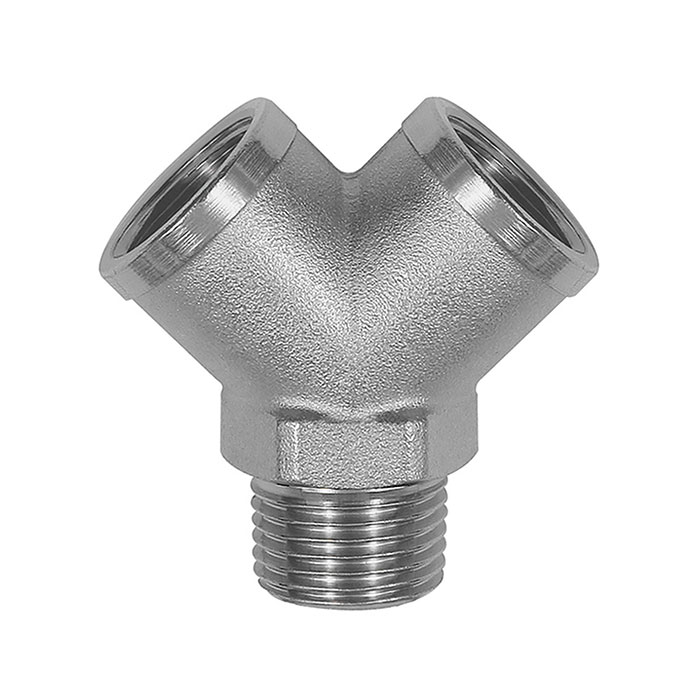

![[112597] RIEGLER Distributor, 2-fold, R 1/4 ET, Outlets 2 x G 1/4 IT](/web/image/product.template/185502/image_128/%5B112597%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20R%201-4%20ET%2C%20Outlets%202%20x%20G%201-4%20IT?unique=f53bf7b)
|
