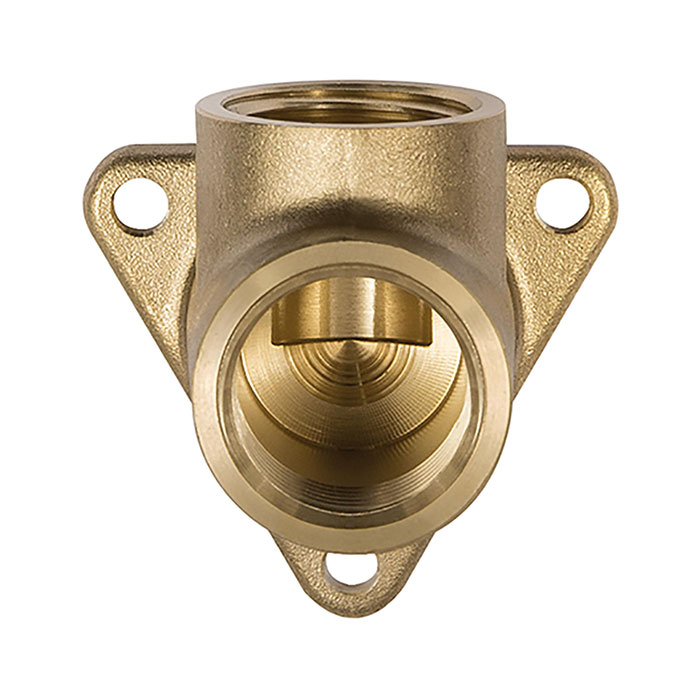

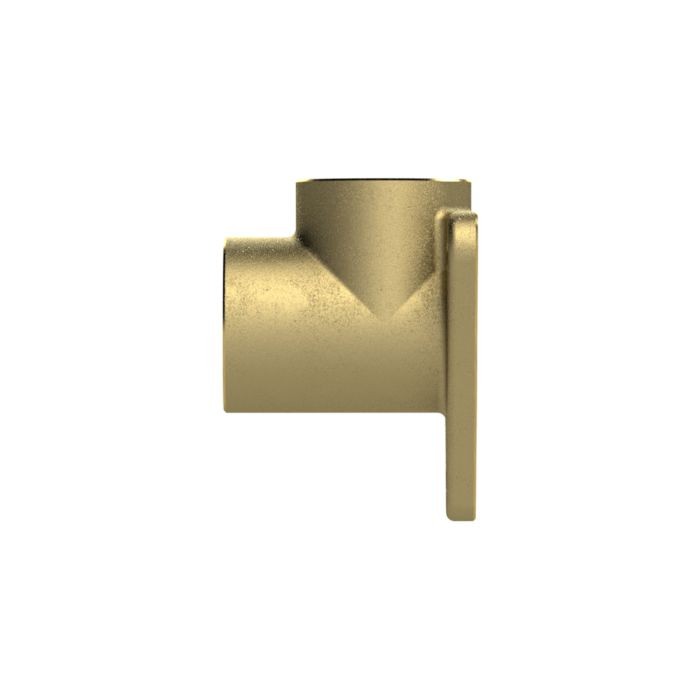

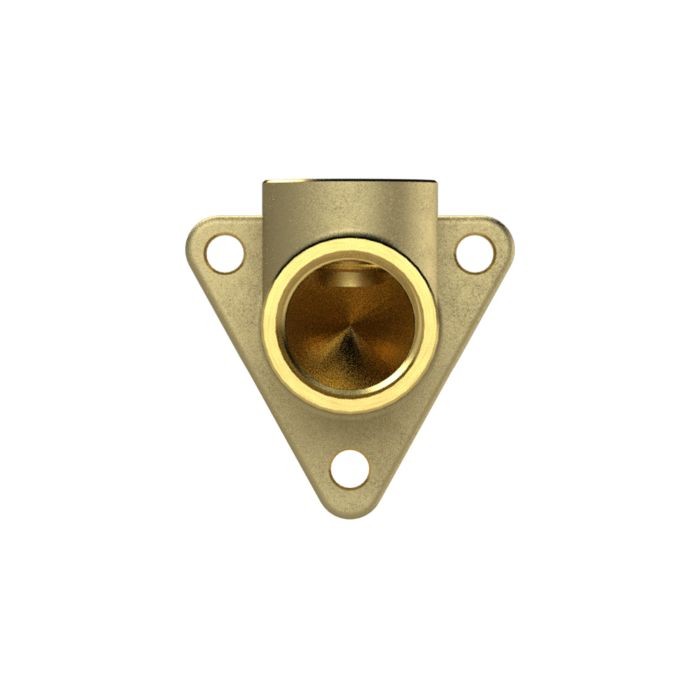

RIEGLER Ceiling bracket (for wall mounting), 2 x G 3/8 IT
Type number: DW 266
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ceiling bracket for wall mounting for pipework construction, max. 60 bar, 2 x G 3/8 female thread - type DW 266
The RIEGLER ceiling bracket for wall mounting, 2 x G 3/8 female thread branches a compressed air line to several outlets. Designed for a maximum operating pressure of 60 bar. Connection thread 2 x G 3/8 female thread - suitable for common industry standards. Uniform supply to several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Thread | 2 x G 3/8 IG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112609] RIEGLER Ceiling bracket (for wall mounting), 2 x G 1/2 IT](/web/image/product.template/185514/image_128/%5B112609%5D%20RIEGLER%20Ceiling%20bracket%20%28for%20wall%20mounting%29%2C%202%20x%20G%201-2%20IT?unique=71317da)
|
Type number: DW 267 |
3.58 € | |

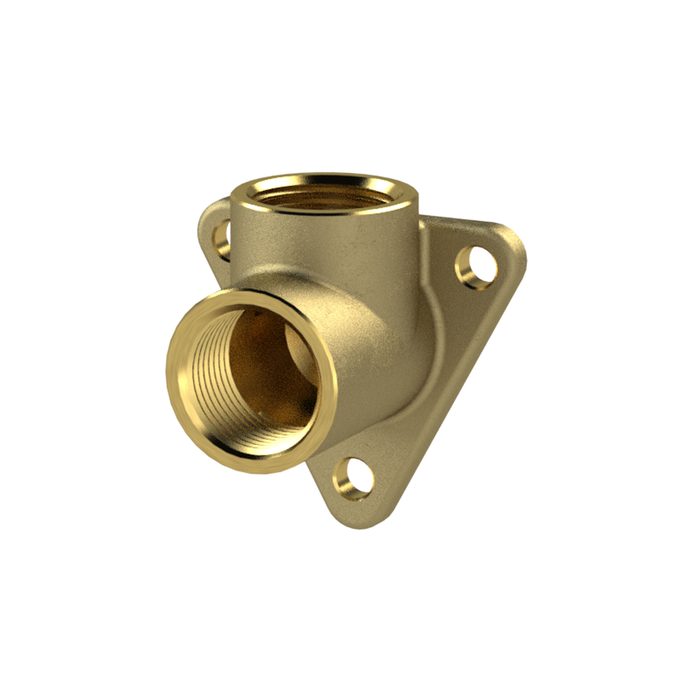

![[112610] RIEGLER Ceiling bracket (for wall mounting), 2 x G 3/4 IT](/web/image/product.template/185515/image_128/%5B112610%5D%20RIEGLER%20Ceiling%20bracket%20%28for%20wall%20mounting%29%2C%202%20x%20G%203-4%20IT?unique=912e04b)
|
Type number: DW 268 |
7.57 € | |
