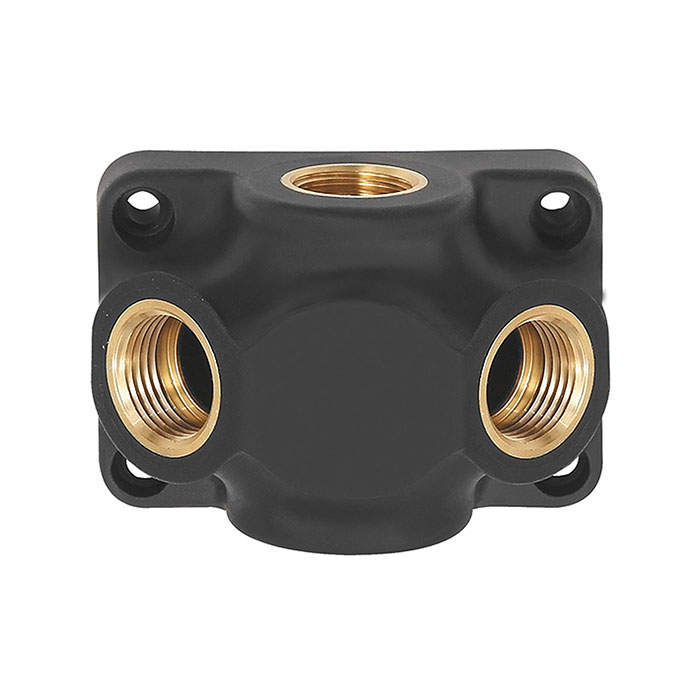

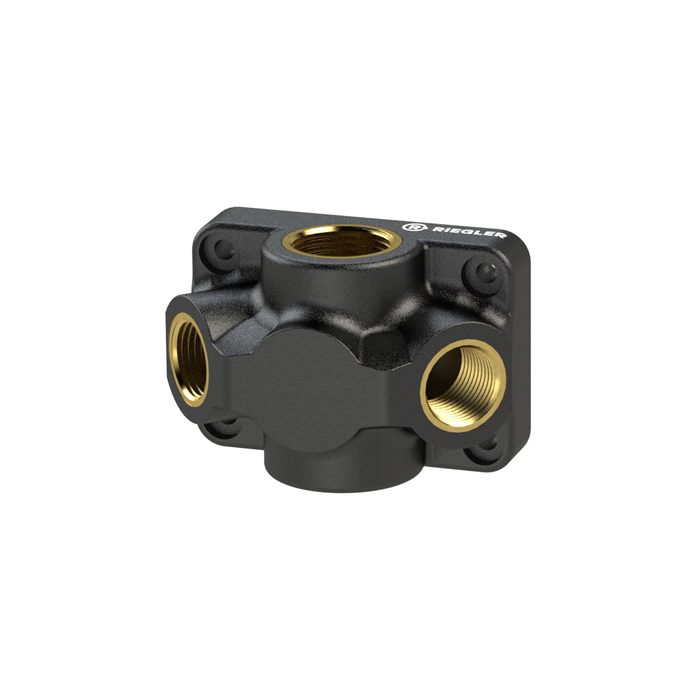

RIEGLER Through distributor, Input/Output G 3/4, Connection 2 x G 1/2
Type number: DVD34-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight-through manifold made of glass fiber reinforced plastic PA6 GF 30, for pipeline construction - type DVD34-2
The RIEGLER straight-through manifold, inlet/outlet G 3/4, connection 2 x G 1/2 branches a compressed air line to several outlets. The housing is made of glass fiber reinforced plastic PA6 GF 30 and is designed for a maximum operating pressure of 15 bar. The temperature range is between 1 °C and 50 °C. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range min. | 1 °C |
| Temperature range max. | 50 °C |
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Connection thread | 2 x G 1/2 |
| Max. operating pressure | 15 bar |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Input thread | G 3/4 |
| Through-hole thread | G 3/4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

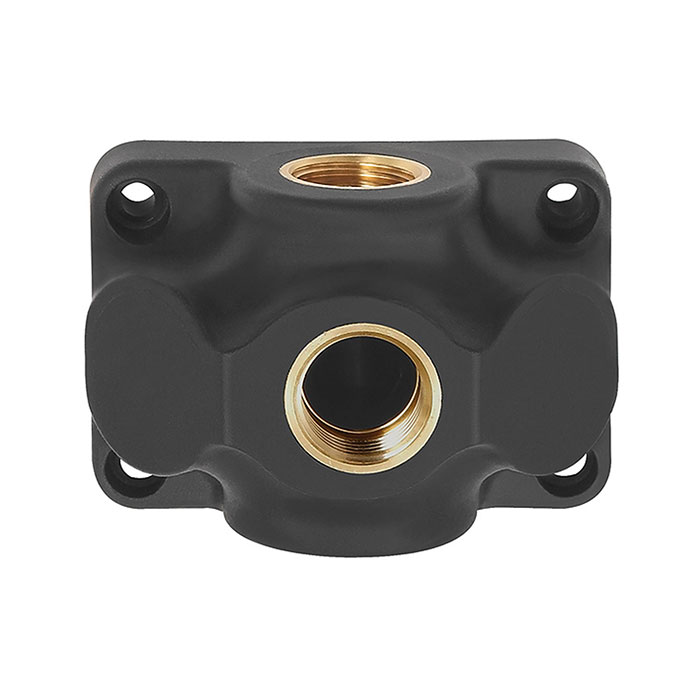

![[112619] RIEGLER Through distributor, Input/Output G 1/2, Connection 1 x G 1/2](/web/image/product.template/185524/image_128/%5B112619%5D%20RIEGLER%20Through%20distributor%2C%20Input-Output%20G%201-2%2C%20Connection%201%20x%20G%201-2?unique=7123407)
|
Type number: DVD12-1 |
14.47 € | |
![[112620] RIEGLER Through distributor, Input/Output G 1/2, Connection 2 x G 1/2](/web/image/product.template/185525/image_128/%5B112620%5D%20RIEGLER%20Through%20distributor%2C%20Input-Output%20G%201-2%2C%20Connection%202%20x%20G%201-2?unique=fdd02ab)
|
Type number: DVD12-2 |
17.99 € | |

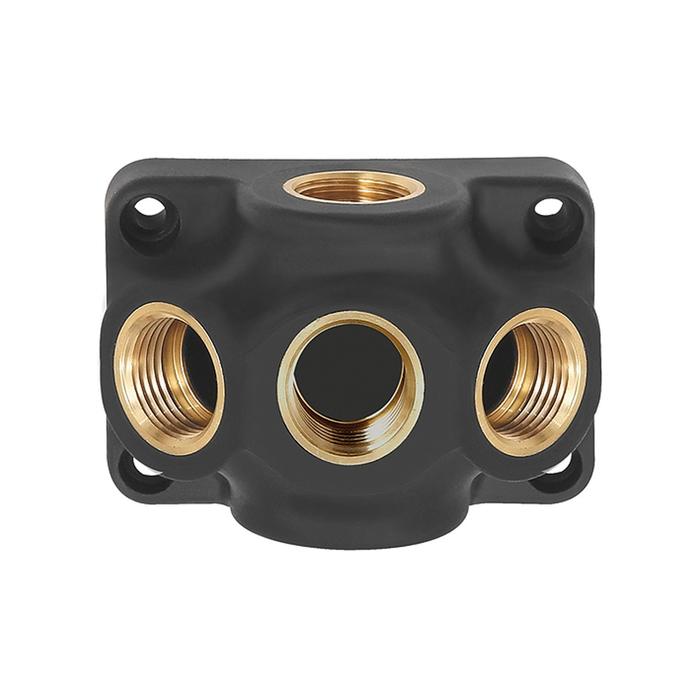

![[112621] RIEGLER Through distributor, Input/Output G 1/2, Connection 3 x G 1/2](/web/image/product.template/185526/image_128/%5B112621%5D%20RIEGLER%20Through%20distributor%2C%20Input-Output%20G%201-2%2C%20Connection%203%20x%20G%201-2?unique=79e82bc)
|
Type number: DVD12-3 |
21.07 € | |

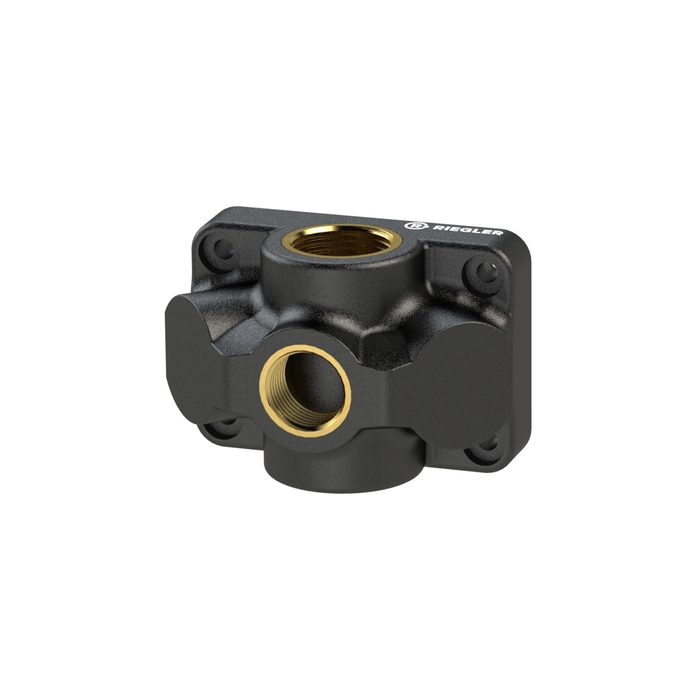

![[112622] RIEGLER Through distributor, Input/Output G 3/4, Connection 1 x G 1/2](/web/image/product.template/185527/image_128/%5B112622%5D%20RIEGLER%20Through%20distributor%2C%20Input-Output%20G%203-4%2C%20Connection%201%20x%20G%201-2?unique=8990783)
|
