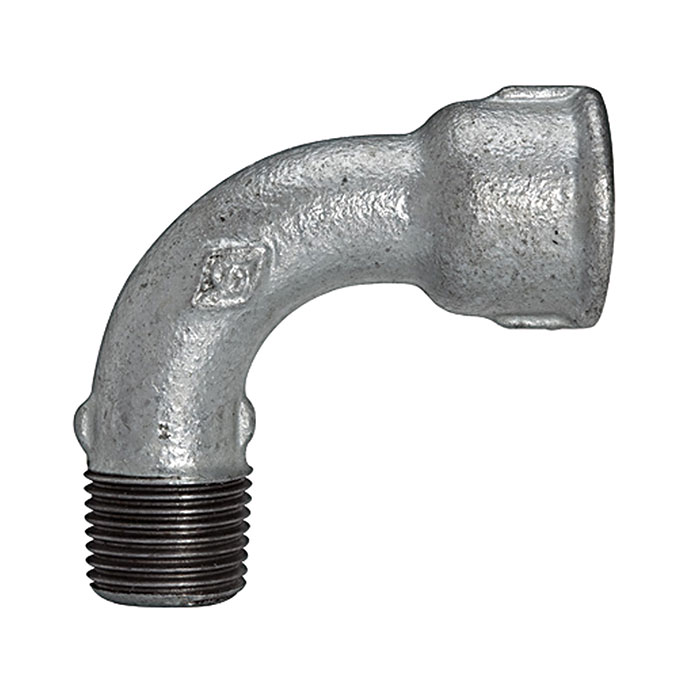

RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 2, black malleable cast iron
Type number: TFB 1-20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Elbow 1, long, 90°, IG/AG, Rp/R 2, operating temperature -20 °C to 300 °C, black malleable cast iron, hot-dip galvanized, DIN EN 10242
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp/R 2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112832] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 1 1/2, black malleable cast iron](/web/image/product.template/185737/image_128/%5B112832%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%201%201-2%2C%20black%20malleable%20cast%20iron?unique=c10e878)
|
Type number: TFB 1-112 |
10.20 € | |
![[112831] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 1 1/4, black malleable cast iron](/web/image/product.template/185736/image_128/%5B112831%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%201%201-4%2C%20black%20malleable%20cast%20iron?unique=ad3c120)
|
Type number: TFB 1-114 |
7.66 € | |
![[112828] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 1/2, black malleable cast iron](/web/image/product.template/185733/image_128/%5B112828%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%201-2%2C%20black%20malleable%20cast%20iron?unique=28def69)
|
Type number: TFB 1-12 |
1.95 € | |
![[112826] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 1/4, black malleable cast iron](/web/image/product.template/185731/image_128/%5B112826%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%201-4%2C%20black%20malleable%20cast%20iron?unique=936a590)
|
Type number: TFB 1-14 |
1.81 € | |
![[112830] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 1, black malleable cast iron](/web/image/product.template/185735/image_128/%5B112830%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%201%2C%20black%20malleable%20cast%20iron?unique=df50688)
|
Type number: TFB 1-10 |
4.49 € | |
![[112834] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 2 1/2, black malleable cast iron](/web/image/product.template/185739/image_128/%5B112834%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%202%201-2%2C%20black%20malleable%20cast%20iron?unique=e2f8d88)
|
Type number: TFB 1-212 |
36.64 € | |
![[112829] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 3/4, black malleable cast iron](/web/image/product.template/185734/image_128/%5B112829%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%203-4%2C%20black%20malleable%20cast%20iron?unique=6bd5444)
|
Type number: TFB 1-34 |
3.30 € | |
![[112827] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 3/8, black malleable cast iron](/web/image/product.template/185732/image_128/%5B112827%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%203-8%2C%20black%20malleable%20cast%20iron?unique=6e20dc5)
|
Type number: TFB 1-38 |
2.25 € | |
![[112835] RIEGLER Elbow 1, Long, 90°, IT/ET, Rp/R 3, black malleable cast iron](/web/image/product.template/185740/image_128/%5B112835%5D%20RIEGLER%20Elbow%201%2C%20Long%2C%2090%C2%B0%2C%20IT-ET%2C%20Rp-R%203%2C%20black%20malleable%20cast%20iron?unique=b1dbba8)
|
Type number: TFB 1-30 |
48.04 € | |
