RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 2 1/2, black malleable cast iron
Type number: TFB 2-212
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Elbow 2, long, 90°, IG/IG, Rp 2 1/2, operating temperature -20 °C to 300 °C, black malleable cast iron, hot-dip galvanized, DIN EN 10242
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp 2 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112851] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 1 1/2, black malleable cast iron](/web/image/product.template/185756/image_128/%5B112851%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%201%201-2%2C%20black%20malleable%20cast%20iron?unique=065cf84)
|
Type number: TFB 2-112 |
9.62 € | |
![[112850] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 1 1/4, black malleable cast iron](/web/image/product.template/185755/image_128/%5B112850%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%201%201-4%2C%20black%20malleable%20cast%20iron?unique=92d3b67)
|
Type number: TFB 2-114 |
7.66 € | |
![[112847] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 1/2, black malleable cast iron](/web/image/product.template/185752/image_128/%5B112847%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=341bf12)
|
Type number: TFB 2-12 |
2.25 € | |
![[112845] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 1/4, black malleable cast iron](/web/image/product.template/185750/image_128/%5B112845%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%201-4%2C%20black%20malleable%20cast%20iron?unique=20c24fa)
|
Type number: TFB 2-14 |
1.81 € | |
![[112849] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 1, black malleable cast iron](/web/image/product.template/185754/image_128/%5B112849%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%201%2C%20black%20malleable%20cast%20iron?unique=3033931)
|
Type number: TFB 2-10 |
4.34 € | |
![[112852] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 2, black malleable cast iron](/web/image/product.template/185757/image_128/%5B112852%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%202%2C%20black%20malleable%20cast%20iron?unique=7caae52)
|
Type number: TFB 2-20 |
14.09 € | |

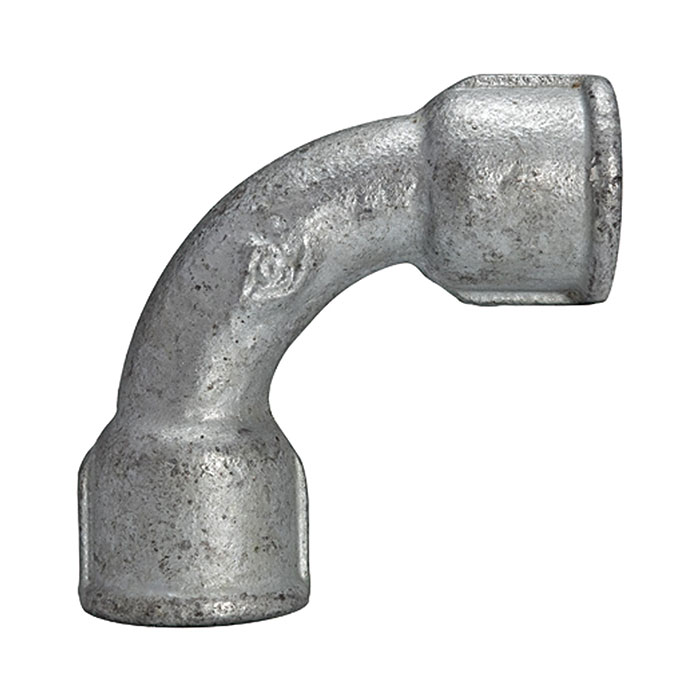

![[112848] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 3/4, black malleable cast iron](/web/image/product.template/185753/image_128/%5B112848%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=26e7944)
|
Type number: TFB 2-34 |
3.30 € | |
![[112846] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 3/8, black malleable cast iron](/web/image/product.template/185751/image_128/%5B112846%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=401f03f)
|
Type number: TFB 2-38 |
2.25 € | |
![[112854] RIEGLER Elbow 2, Long, 90°, IT/IT, Rp 3, black malleable cast iron](/web/image/product.template/185759/image_128/%5B112854%5D%20RIEGLER%20Elbow%202%2C%20Long%2C%2090%C2%B0%2C%20IT-IT%2C%20Rp%203%2C%20black%20malleable%20cast%20iron?unique=82cf63a)
|
Type number: TFB 2-30 |
44.74 € | |
