RIEGLER Bracket 94, 90°, ET/ET, R 3/8, black malleable cast iron
Type number: TFW 94-38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 94 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction, R 3/8 - Type TFW 94-38
The RIEGLER elbow 94, 90°, male/female, R 3/8, black malleable cast iron, hot-dip galvanized connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread R 3/8 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | R 3/8 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112914] RIEGLER Bracket 94, 90°, ET/ET, R 1 1/2, black malleable cast iron](/web/image/product.template/185819/image_128/%5B112914%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%201%201-2%2C%20black%20malleable%20cast%20iron?unique=1dc89fb)
|
Type number: TFW 94-112 |
13.66 € | |
![[112913] RIEGLER Bracket 94, 90°, ET/ET, R 1 1/4, black malleable cast iron](/web/image/product.template/185818/image_128/%5B112913%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%201%201-4%2C%20black%20malleable%20cast%20iron?unique=483cf87)
|
Type number: TFW 94-114 |
16.42 € | |

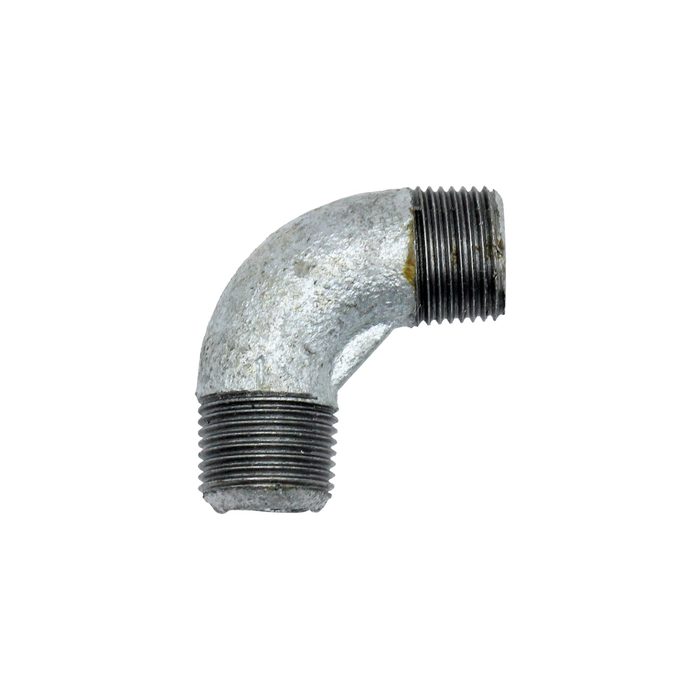

![[112910] RIEGLER Bracket 94, 90°, ET/ET, R 1/2, black malleable cast iron](/web/image/product.template/185815/image_128/%5B112910%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%201-2%2C%20black%20malleable%20cast%20iron?unique=b9f95d9)
|
Type number: TFW 94-12 |
2.96 € | |
![[112912] RIEGLER Bracket 94, 90°, ET/ET, R 1, black malleable cast iron](/web/image/product.template/185817/image_128/%5B112912%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%201%2C%20black%20malleable%20cast%20iron?unique=7289570)
|
Type number: TFW 94-10 |
5.13 € | |
![[112915] RIEGLER Bracket 94, 90°, ET/ET, R 2, black malleable cast iron](/web/image/product.template/185820/image_128/%5B112915%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%202%2C%20black%20malleable%20cast%20iron?unique=5e4585d)
|
Type number: TFW 94-20 |
14.08 € | |
![[112911] RIEGLER Bracket 94, 90°, ET/ET, R 3/4, black malleable cast iron](/web/image/product.template/185816/image_128/%5B112911%5D%20RIEGLER%20Bracket%2094%2C%2090%C2%B0%2C%20ET-ET%2C%20R%203-4%2C%20black%20malleable%20cast%20iron?unique=60a8490)
|
Type number: TFW 94-34 |
3.37 € | |
