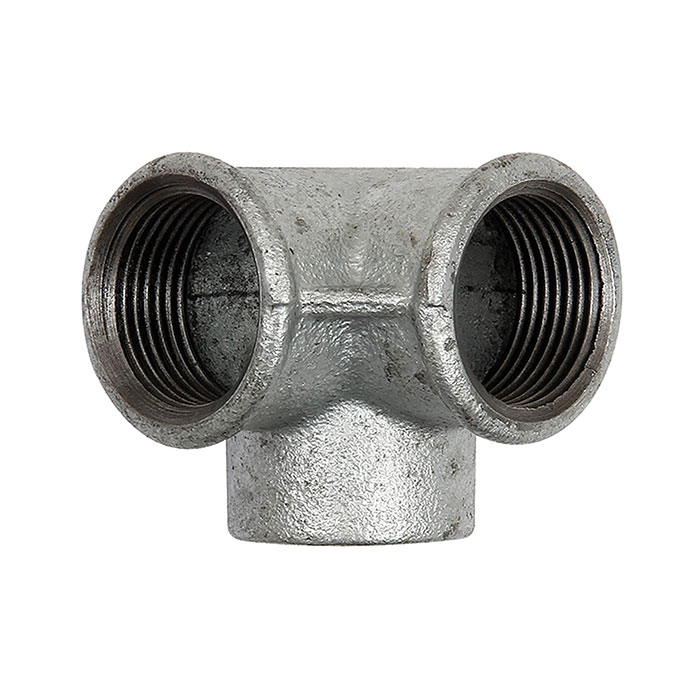

RIEGLER Angled distributor 221, IT/IT/IT, Rp 1 1/2
Type number: TFE 221-112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angle distributor 221 made of black malleable cast iron B350-10 Design Symbol A, for pipework construction - Type TFE 221-112
The RIEGLER elbow manifold 221, IG/IG/IG, Rp 1 1/2, black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp 1 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | Rp 1 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113021] RIEGLER Angled distributor 221, IT/IT/IT, Rp 1](/web/image/product.template/185923/image_128/%5B113021%5D%20RIEGLER%20Angled%20distributor%20221%2C%20IT-IT-IT%2C%20Rp%201?unique=30e1fc0)
|
Type number: TFE 221-10 |
6.56 € | |

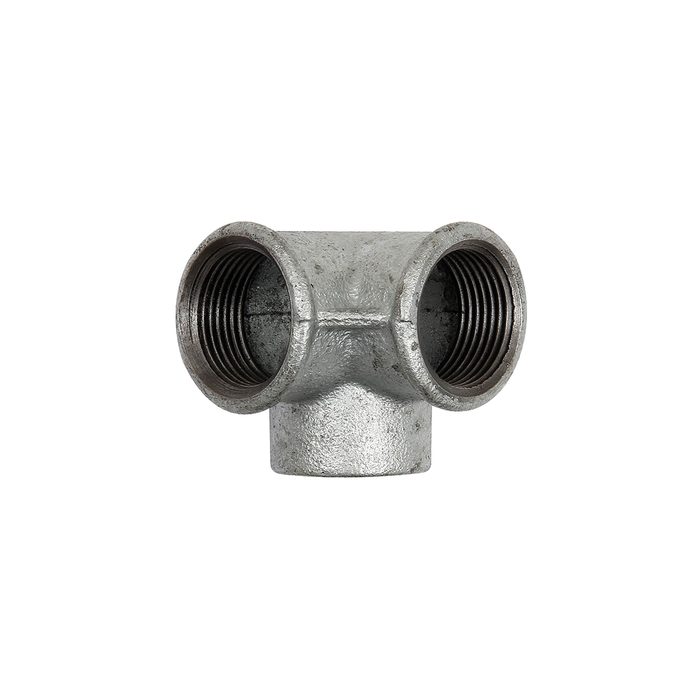

![[113019] RIEGLER Angled distributor 221, IT/IT/IT, Rp 1/2](/web/image/product.template/185921/image_128/%5B113019%5D%20RIEGLER%20Angled%20distributor%20221%2C%20IT-IT-IT%2C%20Rp%201-2?unique=8750285)
|
Type number: TFE 221-12 |
2.96 € | |
![[113023] RIEGLER Angled distributor 221, IT/IT/IT, Rp 2](/web/image/product.template/185925/image_128/%5B113023%5D%20RIEGLER%20Angled%20distributor%20221%2C%20IT-IT-IT%2C%20Rp%202?unique=f3d139d)
|
Type number: TFE 221-20 |
25.94 € | |
![[113020] RIEGLER Angled distributor 221, IT/IT/IT, Rp 3/4](/web/image/product.template/185922/image_128/%5B113020%5D%20RIEGLER%20Angled%20distributor%20221%2C%20IT-IT-IT%2C%20Rp%203-4?unique=3002d24)
|
Type number: TFE 221-34 |
4.77 € | |
