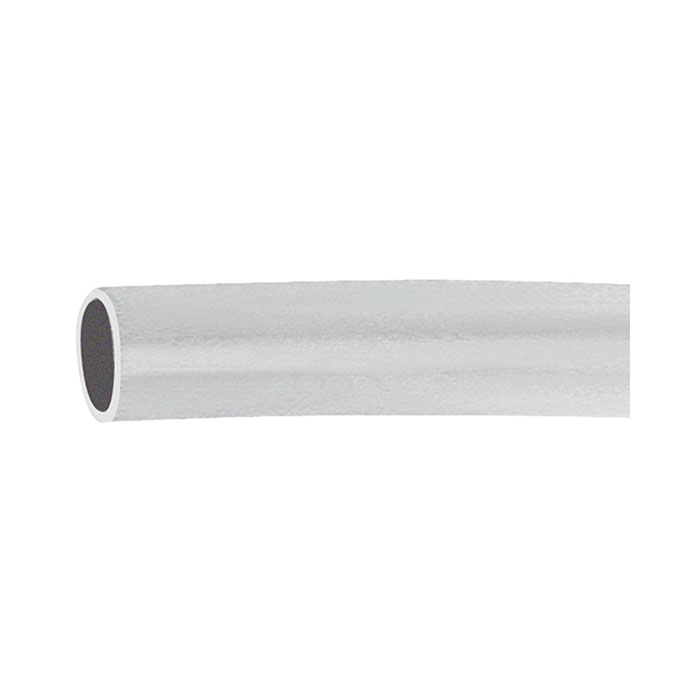

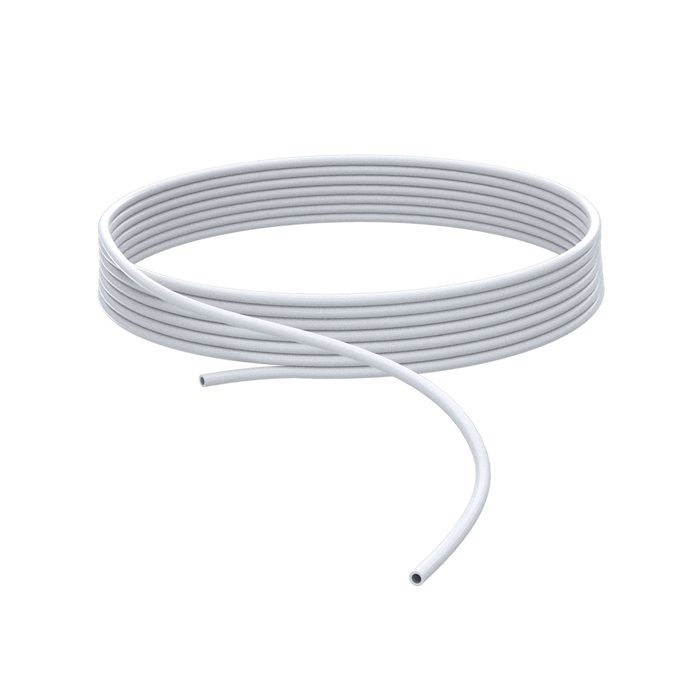

RIEGLER PTFE hose, natural, Hose Ø 10x8, Roll of 50 m
Type number: 259.34 N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
PTFE hose, natural, temperature range -60 °C to 260 °C, hose ø 10x8, PN at 20 °C max. 14 bar, roll of 50 m
| Temperature range min. | -60 °C |
| Temperature range max. | 260 °C |
| Colour | nature |
| Max. operating pressure at 20 °C | 14 bar |
| Outer hose Ø | 10 mm |
| Hose Ø inside | 8 mm |
| Roll length | 50 m |
| Bending radius min. | 70 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113874] RIEGLER PTFE hose, natural, Hose Ø 12x9, Roll of 50 m](/web/image/product.template/189993/image_128/%5B113874%5D%20RIEGLER%20PTFE%20hose%2C%20natural%2C%20Hose%20%C3%98%2012x9%2C%20Roll%20of%2050%20m?unique=b3e9996)
|
Type number: 259.35 N |
788.58 € | |
![[113869] RIEGLER PTFE hose, natural, Hose Ø 4x2, Roll of 50 m](/web/image/product.template/189984/image_128/%5B113869%5D%20RIEGLER%20PTFE%20hose%2C%20natural%2C%20Hose%20%C3%98%204x2%2C%20Roll%20of%2050%20m?unique=98014e9)
|
Type number: 259.30 N |
278.46 € | |
![[113870] RIEGLER PTFE hose, natural, Hose Ø 5x3, Roll of 50 m](/web/image/product.template/189986/image_128/%5B113870%5D%20RIEGLER%20PTFE%20hose%2C%20natural%2C%20Hose%20%C3%98%205x3%2C%20Roll%20of%2050%20m?unique=73e1317)
|
Type number: 259.31 N |
329.24 € | |
![[113871] RIEGLER PTFE hose, natural, Hose Ø 6x4, Roll of 50 m](/web/image/product.template/189988/image_128/%5B113871%5D%20RIEGLER%20PTFE%20hose%2C%20natural%2C%20Hose%20%C3%98%206x4%2C%20Roll%20of%2050%20m?unique=c4d30ec)
|
Type number: 259.32 N |
374.46 € | |
![[113872] RIEGLER PTFE hose, natural, Hose Ø 8x6, Roll of 50 m](/web/image/product.template/189990/image_128/%5B113872%5D%20RIEGLER%20PTFE%20hose%2C%20natural%2C%20Hose%20%C3%98%208x6%2C%20Roll%20of%2050%20m?unique=d80a5aa)
|
Type number: 259.33 N |
398.26 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

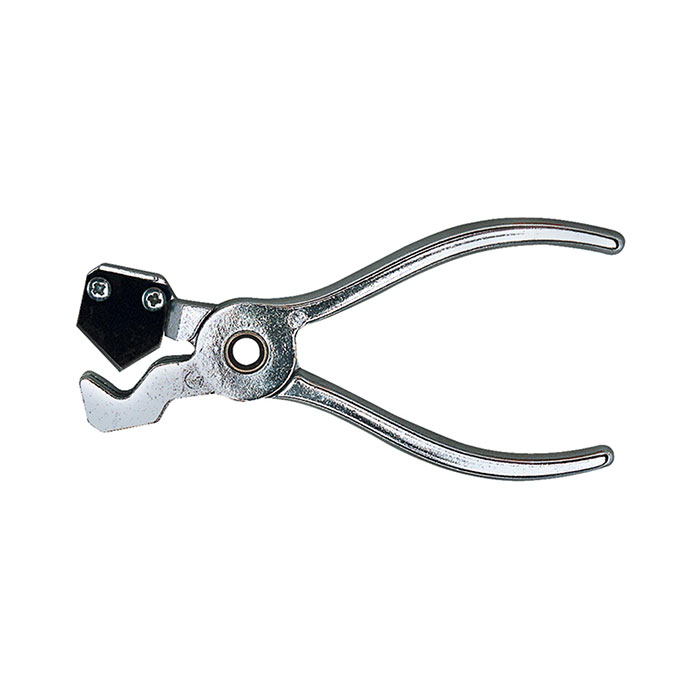

![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=c8281bd)
|
Type number: 259.555 |
18.75 € | |
![[113588] RIEGLER Hose cutter, to outside diameter 14 mm](/web/image/product.template/189466/image_128/%5B113588%5D%20RIEGLER%20Hose%20cutter%2C%20to%20outside%20diameter%2014%20mm?unique=586672b)
|
Type number: 259.550 |
9.48 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=b94d8cb)
|
Type number: 259.559 |
29.67 € | |

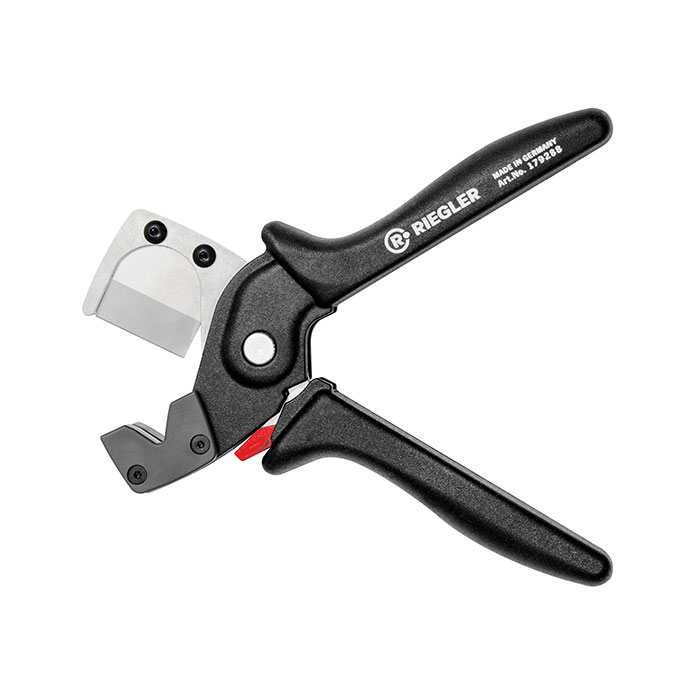

![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=7a2970e)
|
