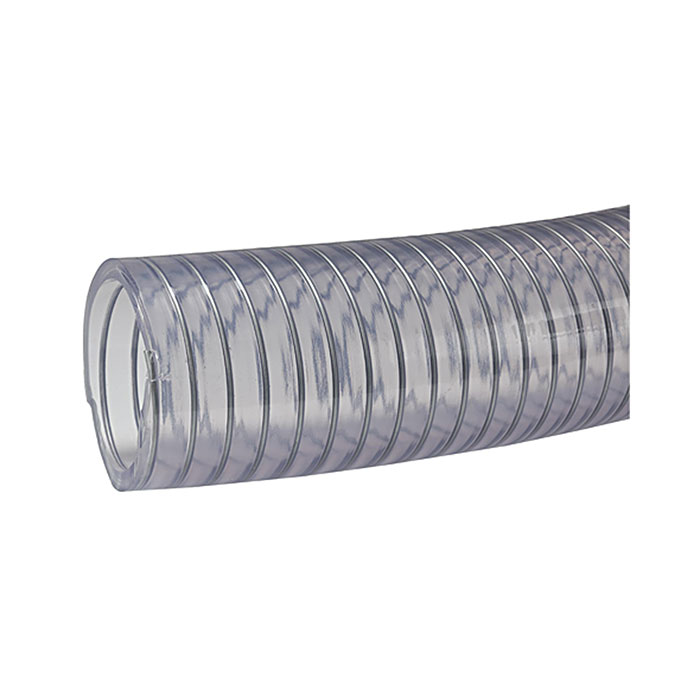

RIEGLER Suction/pressure hose, Heavy-duty design, Hose Ø 33x25
Type number: 4480.025-50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
113915EAN :
4047322300476Category :
Suction Hoses & Discharge HosesWeight :
25.00 kgRIEGLER Suction/pressure hose for compressed air distribution - type 4480.025-50
The RIEGLER suction/pressure hose, heavy-duty version, hose ø 33x25 mm, 50 m, flexibly and reliably conducts compressed air from the compressor to the consumer. The temperature range is between -15 °C and 60 °C. Hose Ø 25 mm (inside) / 33 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -15 °C |
| Temperature range max. | 60 °C |
| Vacuum | 0.9 bar |
| Max. operating pressure at 20 °C | 8 bar |
| Outer hose Ø | 33 mm |
| Hose Ø inside | 25 mm |
| Roll length | 50 m |
| Bending radius min. | 75 mm |
| Class name | FLEX |
