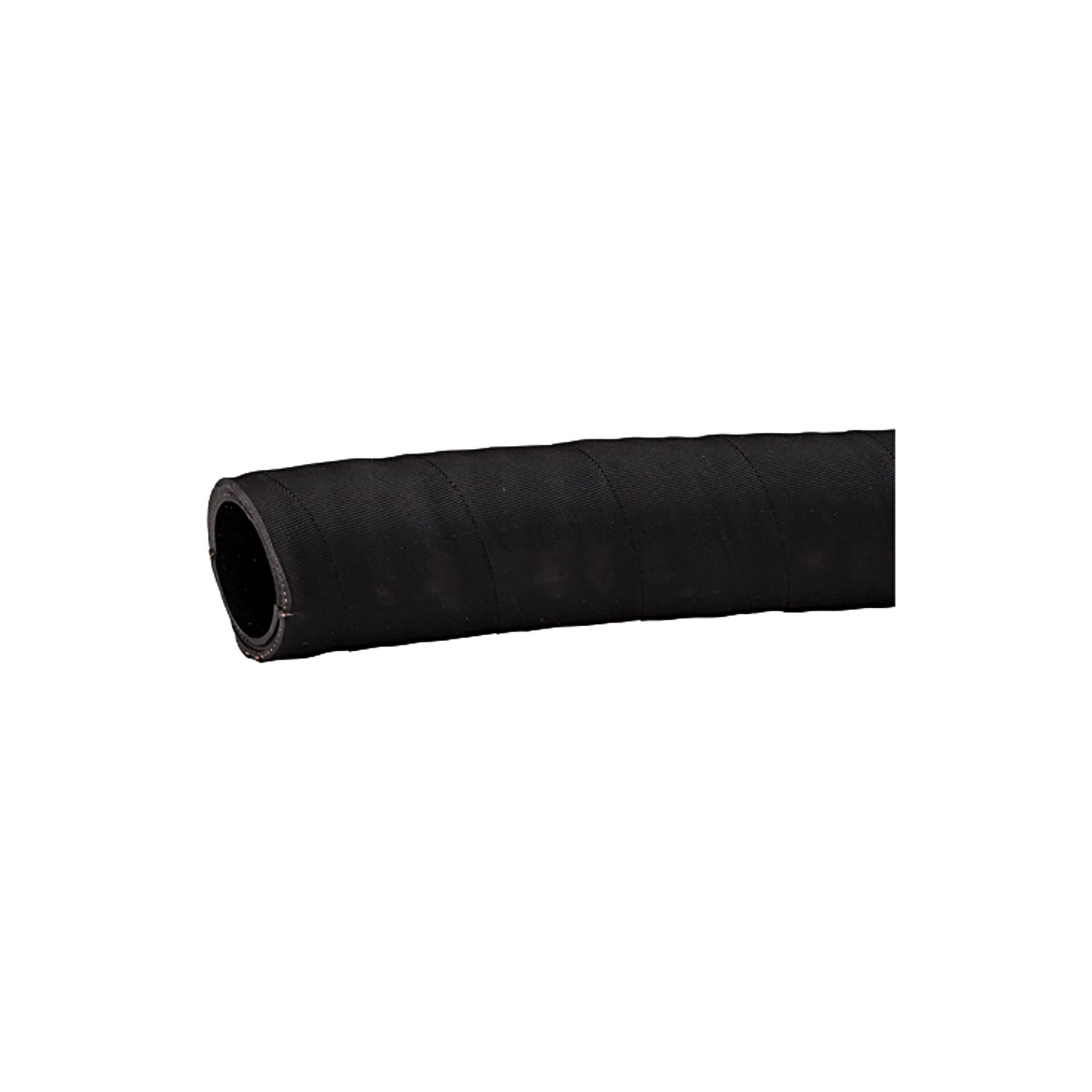

RIEGLER Suction/pressure hose, Rubber, SBR, Hose Ø 73x60, Roll of 40 m
Type number: 3640.060
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
113933EAN :
4047322268301Category :
Suction Hoses & Discharge HosesWeight :
90.40 kgSuction/pressure hose, rubber, SBR, temp. -30 °C to 80 °C, vacuum 0.9 bar, PN max. 10 bar, hose ø 73x60, roll of 40 m
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Max. operating pressure | 10 bar |
| Soul | SBR, black, smooth |
| Bursting pressure | 30 bar |
| Outer ceiling | SBR, black, fabric-patterned |
| Vacuum | 0.9 bar |
| Outer hose Ø | 73 mm |
| Hose Ø inside | 60 mm |
| Roll length | 40 m |
| Bending radius min. | 240 mm |
| Class name | FLEX |
