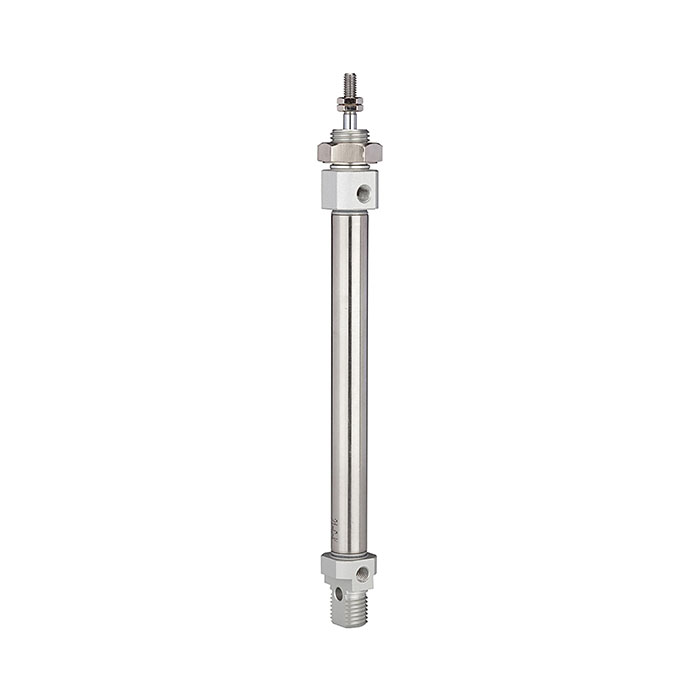

RIEGLER Round cylinder »MI« double-acting, Piston Ø 8, Stroke 50, M5x0.8
Type number: 11.DM.08050
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round cylinder "MI" double-acting for automation technology, max. 10 bar, M5x0.8 - Type 11.DM.08050
The RIEGLER round cylinder "MI" double-acting, piston Ø 8, stroke 50, M5x0.8 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. with NBR seals. The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread M5x0.8 - suitable for common industry standards. With piston Ø 8 mm, stroke 50 mm, piston rod stainless steel 1.4301 - for powerful linear actuator solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 8 mm |
| Function | double-acting |
| Stroke | 50 mm |
| Piston rods AG | M4x0.7 |
| Piston rod Ø | 4 mm |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Stainless steel 1.4305 |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
