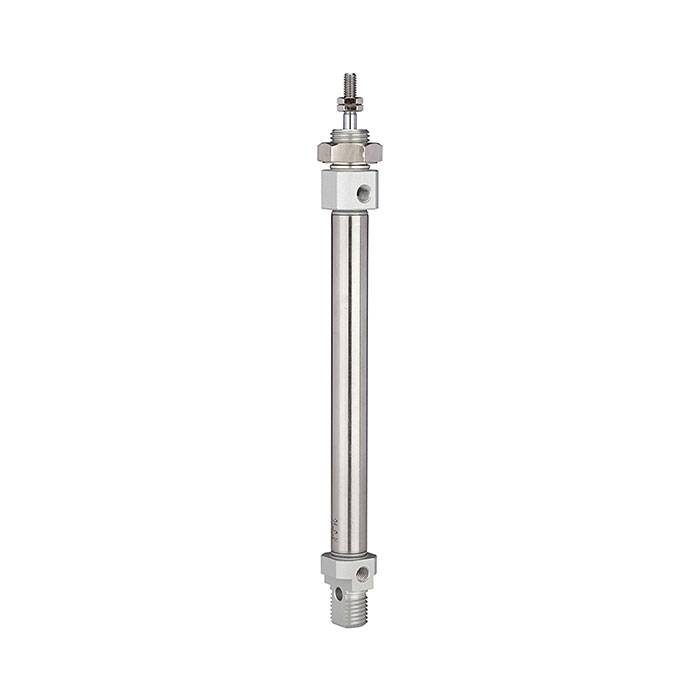

RIEGLER Round cylinder »MI« double-acting, PistonØ 12, Stroke 250, M5x0.8
Type number: 11.DM.12250
EAN: 4047322314046
Round cylinder "MI" ISO 6432, double-act. Solenoid, piston Ø 12, stroke 250, connection M5x0.8, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 12 mm |
| Function | double-acting |
| Stroke | 250 mm |
| Piston rods AG | M6x1.0 |
| Piston rod Ø | 6 mm |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Stainless steel 1.4305 |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
