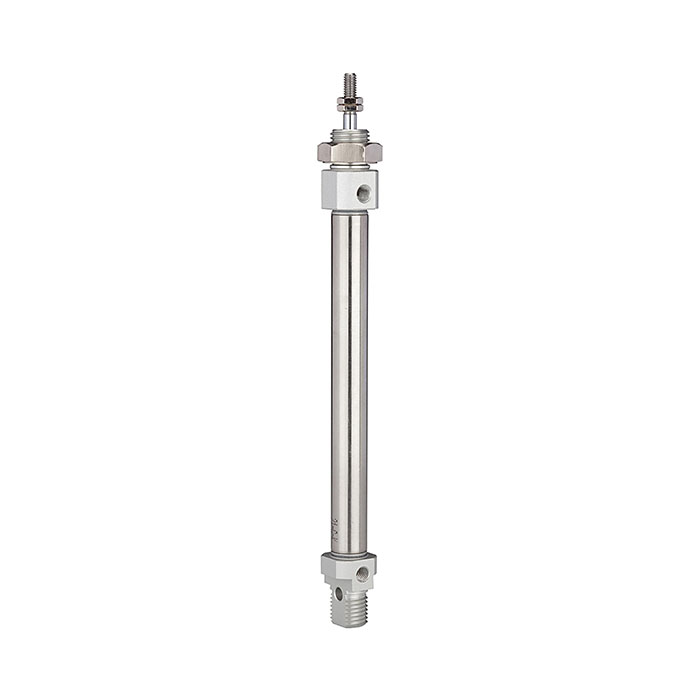

RIEGLER Round cylinder »MI« double-acting, Piston Ø 8, Stroke 100, M5x0.8
Type number: 11.DM.08100
EAN: 4047322313643
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Round cylinder "MI" ISO 6432, double-act. Solenoid, piston Ø 8, stroke 100, connection M5x0.8, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 8 mm |
| Function | double-acting |
| Stroke | 100 mm |
| Piston rods AG | M4x0.7 |
| Piston rod Ø | 4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Stainless steel 1.4305 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
