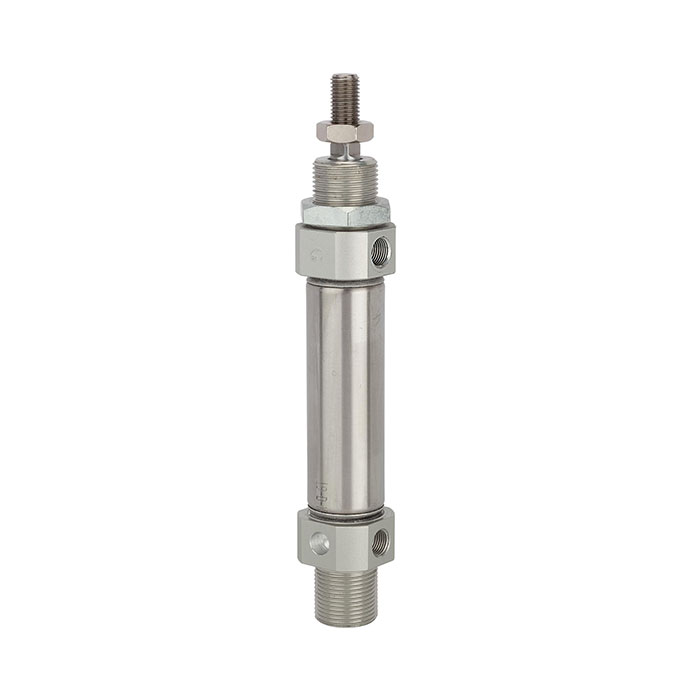

RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 50, G 1/8
Type number: 11.DM.32050
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Round cylinder »MI«, double-acting, Magnet, Piston Ø 32, Stroke 50, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CM |
| Piston Ø | 32 mm |
| Function | double-acting |
| Stroke | 50 mm |
| Piston rods AG | M10x1.25 |
| Piston rod Ø | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114891] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 100, G 1/8](/web/image/product.template/198461/image_128/%5B114891%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20100%2C%20G%201-8?unique=c8cfc96)
|
Type number: 11.DM.32100 |
70.51 € | |
![[114881] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 10, G 1/8](/web/image/product.template/198451/image_128/%5B114881%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=6170fe0)
|
Type number: 11.DM.32010 |
61.57 € | |
![[114892] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 125, G 1/8](/web/image/product.template/198462/image_128/%5B114892%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20125%2C%20G%201-8?unique=e8f677e)
|
Type number: 11.DM.32125 |
75.95 € | |
![[114893] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 150, G 1/8](/web/image/product.template/198463/image_128/%5B114893%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20150%2C%20G%201-8?unique=50dd680)
|
Type number: 11.DM.32150 |
77.16 € | |
![[114882] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 15, G 1/8](/web/image/product.template/198452/image_128/%5B114882%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2015%2C%20G%201-8?unique=0d4fd26)
|
Type number: 11.DM.32015 |
61.92 € | |
![[114894] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 160, G 1/8](/web/image/product.template/198464/image_128/%5B114894%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20160%2C%20G%201-8?unique=9235a45)
|
Type number: 11.DM.32160 |
78.80 € | |
![[114895] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 175, G 1/8](/web/image/product.template/198465/image_128/%5B114895%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20175%2C%20G%201-8?unique=42cfa7f)
|
Type number: 11.DM.32175 |
80.53 € | |
![[114896] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 200, G 1/8](/web/image/product.template/198466/image_128/%5B114896%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20200%2C%20G%201-8?unique=48c40f1)
|
Type number: 11.DM.32200 |
82.40 € | |
![[114883] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 20, G 1/8](/web/image/product.template/198453/image_128/%5B114883%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2020%2C%20G%201-8?unique=98ada2f)
|
Type number: 11.DM.32020 |
62.56 € | |
![[114897] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 250, G 1/8](/web/image/product.template/198467/image_128/%5B114897%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20250%2C%20G%201-8?unique=da3f9dd)
|
Type number: 11.DM.32250 |
86.85 € | |
![[114884] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/198454/image_128/%5B114884%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=7d43267)
|
Type number: 11.DM.32025 |
63.31 € | |
![[114898] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 300, G 1/8](/web/image/product.template/198468/image_128/%5B114898%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20300%2C%20G%201-8?unique=52edf1a)
|
Type number: 11.DM.32300 |
90.89 € | |
![[114885] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 30, G 1/8](/web/image/product.template/198455/image_128/%5B114885%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=8f701d2)
|
Type number: 11.DM.32030 |
63.87 € | |
![[114899] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 350, G 1/8](/web/image/product.template/198469/image_128/%5B114899%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20350%2C%20G%201-8?unique=dc96946)
|
Type number: 11.DM.32350 |
96.78 € | |
![[114900] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 400, G 1/8](/web/image/product.template/198470/image_128/%5B114900%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20400%2C%20G%201-8?unique=8214282)
|
Type number: 11.DM.32400 |
101.57 € | |
![[114886] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 40, G 1/8](/web/image/product.template/198456/image_128/%5B114886%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2040%2C%20G%201-8?unique=89706b9)
|
Type number: 11.DM.32040 |
63.87 € | |
![[114901] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 450, G 1/8](/web/image/product.template/198471/image_128/%5B114901%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20450%2C%20G%201-8?unique=5ff0475)
|
Type number: 11.DM.32450 |
107.46 € | |
![[114902] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 500, G 1/8](/web/image/product.template/198472/image_128/%5B114902%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20500%2C%20G%201-8?unique=cde9618)
|
Type number: 11.DM.32500 |
114.64 € | |
![[114903] RIEGLER Round cylinder »MI«, double-acting, PistonØ 32, Stroke 600, G 1/8](/web/image/product.template/198473/image_128/%5B114903%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20600%2C%20G%201-8?unique=3f54ff7)
|
Type number: 11.DM.32600 |
129.03 € | |
![[114888] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 60, G 1/8](/web/image/product.template/198458/image_128/%5B114888%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2060%2C%20G%201-8?unique=4e978fd)
|
Type number: 11.DM.32060 |
66.05 € | |
![[114889] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 75, G 1/8](/web/image/product.template/198459/image_128/%5B114889%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2075%2C%20G%201-8?unique=8419c22)
|
Type number: 11.DM.32075 |
66.05 € | |
![[114890] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 32, Stroke 80, G 1/8](/web/image/product.template/198460/image_128/%5B114890%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2080%2C%20G%201-8?unique=624adfe)
|
Type number: 11.DM.32080 |
66.91 € | |
![[114914] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 100, G 1/4](/web/image/product.template/198484/image_128/%5B114914%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20100%2C%20G%201-4?unique=d07c98a)
|
Type number: 11.DM.40100 |
81.96 € | |
![[114904] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 10, G 1/4](/web/image/product.template/198474/image_128/%5B114904%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2010%2C%20G%201-4?unique=5db80f2)
|
Type number: 11.DM.40010 |
72.79 € | |
![[114915] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 125, G 1/4](/web/image/product.template/198485/image_128/%5B114915%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20125%2C%20G%201-4?unique=9458de4)
|
Type number: 11.DM.40125 |
84.68 € | |
![[114916] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 150, G 1/4](/web/image/product.template/198486/image_128/%5B114916%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20150%2C%20G%201-4?unique=7519e97)
|
Type number: 11.DM.40150 |
86.51 € | |
![[114905] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 15, G 1/4](/web/image/product.template/198475/image_128/%5B114905%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2015%2C%20G%201-4?unique=56d3d31)
|
Type number: 11.DM.40015 |
72.79 € | |
![[114917] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 160, G 1/4](/web/image/product.template/198487/image_128/%5B114917%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20160%2C%20G%201-4?unique=3b32221)
|
Type number: 11.DM.40160 |
88.39 € | |
![[114918] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 175, G 1/4](/web/image/product.template/198488/image_128/%5B114918%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20175%2C%20G%201-4?unique=2142595)
|
Type number: 11.DM.40175 |
90.11 € | |
![[114919] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 200, G 1/4](/web/image/product.template/198489/image_128/%5B114919%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20200%2C%20G%201-4?unique=ee684ca)
|
Type number: 11.DM.40200 |
91.87 € | |
![[114906] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 20, G 1/4](/web/image/product.template/198476/image_128/%5B114906%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2020%2C%20G%201-4?unique=017536f)
|
Type number: 11.DM.40020 |
72.79 € | |
![[114920] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 250, G 1/4](/web/image/product.template/198490/image_128/%5B114920%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20250%2C%20G%201-4?unique=e285cd0)
|
Type number: 11.DM.40250 |
98.19 € | |
![[114907] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 25, G 1/4](/web/image/product.template/198477/image_128/%5B114907%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-4?unique=6fffdf6)
|
Type number: 11.DM.40025 |
74.66 € | |
![[114921] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 300, G 1/4](/web/image/product.template/198491/image_128/%5B114921%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20300%2C%20G%201-4?unique=12896f5)
|
Type number: 11.DM.40300 |
104.51 € | |
![[114908] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 30, G 1/4](/web/image/product.template/198478/image_128/%5B114908%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2030%2C%20G%201-4?unique=86f5d18)
|
Type number: 11.DM.40030 |
75.30 € | |
![[114922] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 350, G 1/4](/web/image/product.template/198492/image_128/%5B114922%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20350%2C%20G%201-4?unique=a5f31d5)
|
Type number: 11.DM.40350 |
110.40 € | |
![[114923] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 400, G 1/4](/web/image/product.template/198493/image_128/%5B114923%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20400%2C%20G%201-4?unique=d7eb9ea)
|
Type number: 11.DM.40400 |
118.69 € | |
![[114909] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 40, G 1/4](/web/image/product.template/198479/image_128/%5B114909%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2040%2C%20G%201-4?unique=2c6225e)
|
Type number: 11.DM.40040 |
75.30 € | |
![[114924] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 450, G 1/4](/web/image/product.template/198494/image_128/%5B114924%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20450%2C%20G%201-4?unique=d1c8b4e)
|
Type number: 11.DM.40450 |
122.93 € | |
![[114925] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 500, G 1/4](/web/image/product.template/198495/image_128/%5B114925%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20500%2C%20G%201-4?unique=34e354e)
|
Type number: 11.DM.40500 |
129.46 € | |
![[114910] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 50, G 1/4](/web/image/product.template/198480/image_128/%5B114910%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-4?unique=2e57a54)
|
Type number: 11.DM.40050 |
77.37 € | |
![[114926] RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 600, G 1/4](/web/image/product.template/198496/image_128/%5B114926%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20600%2C%20G%201-4?unique=abad0a4)
|
Type number: 11.DM.40600 |
147.99 € | |
![[114911] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 60, G 1/4](/web/image/product.template/198481/image_128/%5B114911%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2060%2C%20G%201-4?unique=3cc1135)
|
Type number: 11.DM.40060 |
78.90 € | |
![[114912] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 75, G 1/4](/web/image/product.template/198482/image_128/%5B114912%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2075%2C%20G%201-4?unique=24a2a11)
|
Type number: 11.DM.40075 |
78.90 € | |
![[114913] RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 80, G 1/4](/web/image/product.template/198483/image_128/%5B114913%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMI%C2%AB%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-4?unique=25cdcd0)
|
Type number: 11.DM.40080 |
80.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

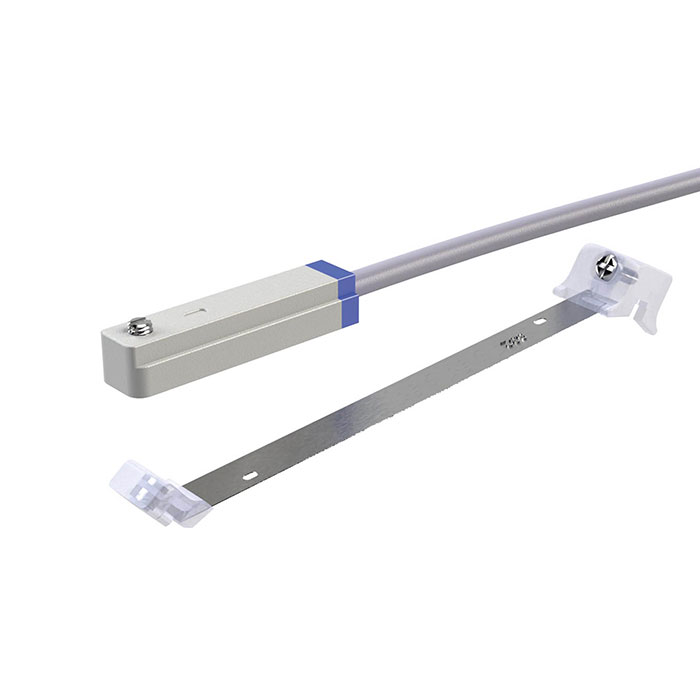

![[115553] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200312/image_128/%5B115553%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=ceeb54c)
|
Type number: 235.316 |
11.00 € | |
![[115561] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200320/image_128/%5B115561%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=e7b683b)
|
Type number: 235.326 |
27.12 € | |
![[115569] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200328/image_128/%5B115569%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=139fd1f)
|
Type number: 235.336 |
23.44 € | |

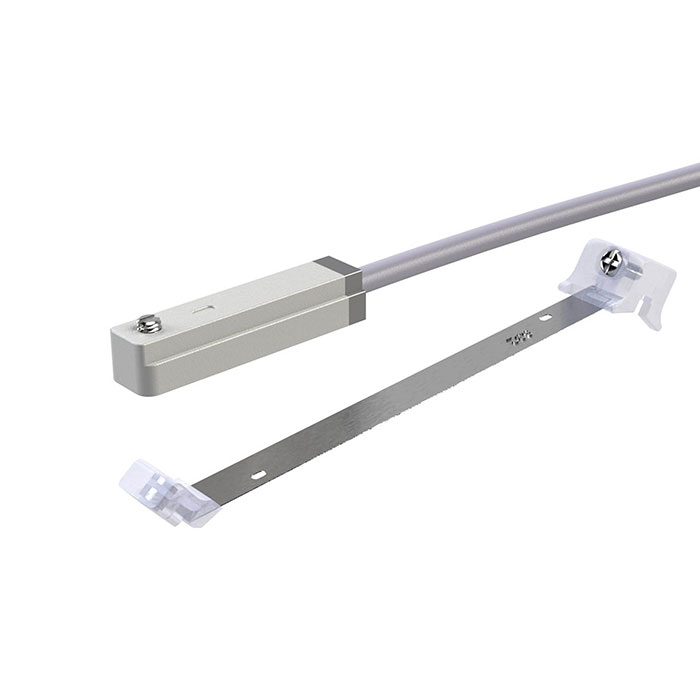

![[115577] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200336/image_128/%5B115577%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=e487556)
|
Type number: 235.346 |
27.12 € | |
![[115585] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200344/image_128/%5B115585%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=94d81c4)
|
Type number: 235.356 |
23.44 € | |
![[115807] RIEGLER Foot fastening »LB« for round cylinder, for piston Ø 32](/web/image/product.template/200542/image_128/%5B115807%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=33b0cb4)
|
Type number: 437.203 |
5.12 € | |
![[115814] RIEGLER Joint head »UNIT«, Piston rod thread M10x1.25](/web/image/product.template/200548/image_128/%5B115814%5D%20RIEGLER%20Joint%20head%20%C2%BBUNIT%C2%AB%2C%20Piston%20rod%20thread%20M10x1.25?unique=2145db9)
|
Type number: 437.220 |
6.43 € | |

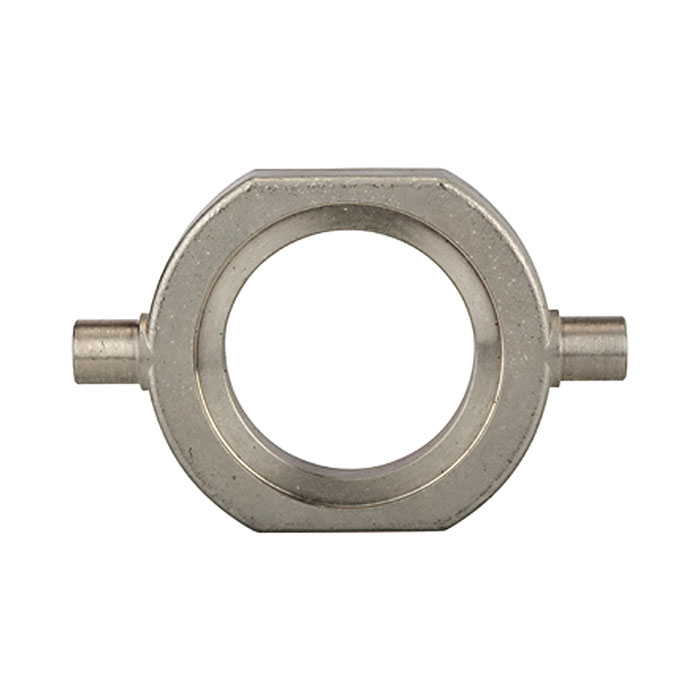

![[115822] RIEGLER Pivoting head fastening »TC« for round cylinder, for piston Ø 32](/web/image/product.template/200556/image_128/%5B115822%5D%20RIEGLER%20Pivoting%20head%20fastening%20%C2%BBTC%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=010f7ae)
|
Type number: 437.233 |
8.88 € | |

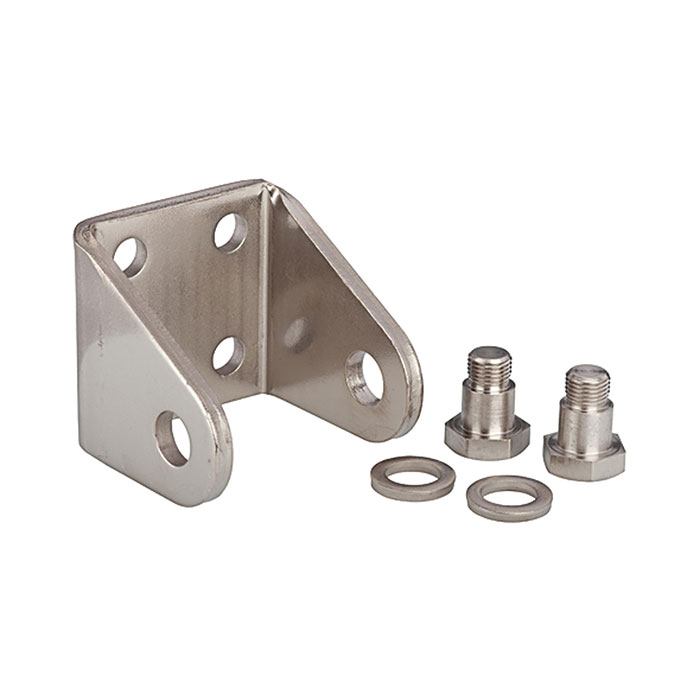

![[115830] RIEGLER Pivoting bearing, »SDB« for round cylinder, for piston Ø 32](/web/image/product.template/200563/image_128/%5B115830%5D%20RIEGLER%20Pivoting%20bearing%2C%20%C2%BBSDB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=5016baa)
|
Type number: 437.253 |
4.25 € | |

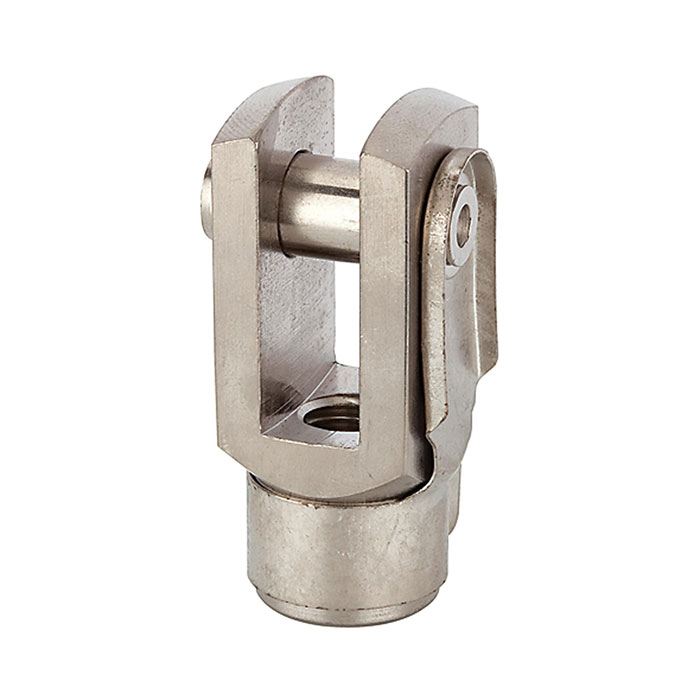

![[115835] RIEGLER Fork head, »Y«, Piston rod thread M10x1.25](/web/image/product.template/200568/image_128/%5B115835%5D%20RIEGLER%20Fork%20head%2C%20%C2%BBY%C2%AB%2C%20Piston%20rod%20thread%20M10x1.25?unique=05332de)
|
Type number: 437.313 |
6.21 € | |
![[116951] RIEGLER Sensor »CS1« Rundzyl.»MI«/»MSI«, Kolben-Ø32, REED, 2-Draht,M8,NO](/web/image/product.template/267806/image_128/%5B116951%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Rundzyl.%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20Kolben-%C3%9832%2C%20REED%2C%202-Draht%2CM8%2CNO?unique=9aa460b)
|
Type number: 235.306-1 |
13.40 € | |

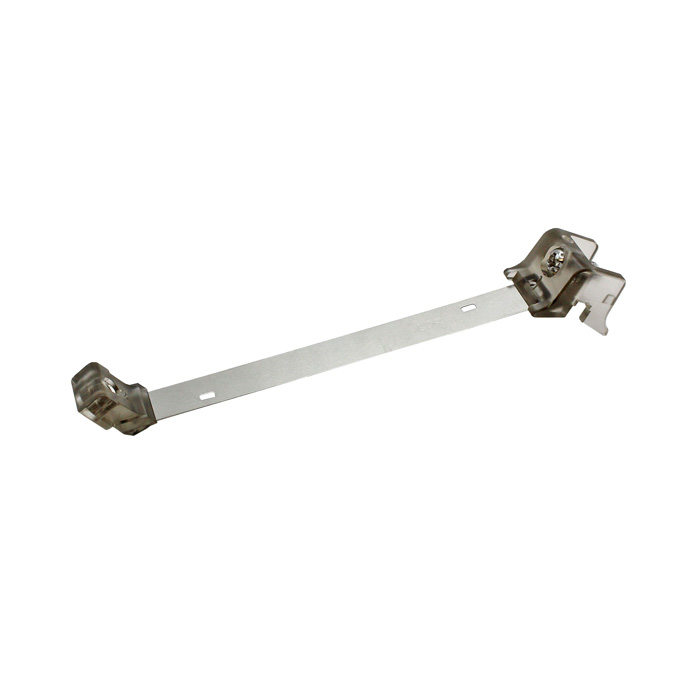

![[118566] RIEGLER Sensor holder, piston Ø 32, for sensor type CS1, stainless steel](/web/image/product.template/275023/image_128/%5B118566%5D%20RIEGLER%20Sensor%20holder%2C%20piston%20%C3%98%2032%2C%20for%20sensor%20type%20CS1%2C%20stainless%20steel?unique=a41ae95)
|
Type number: 235.32SH |
3.03 € | |
