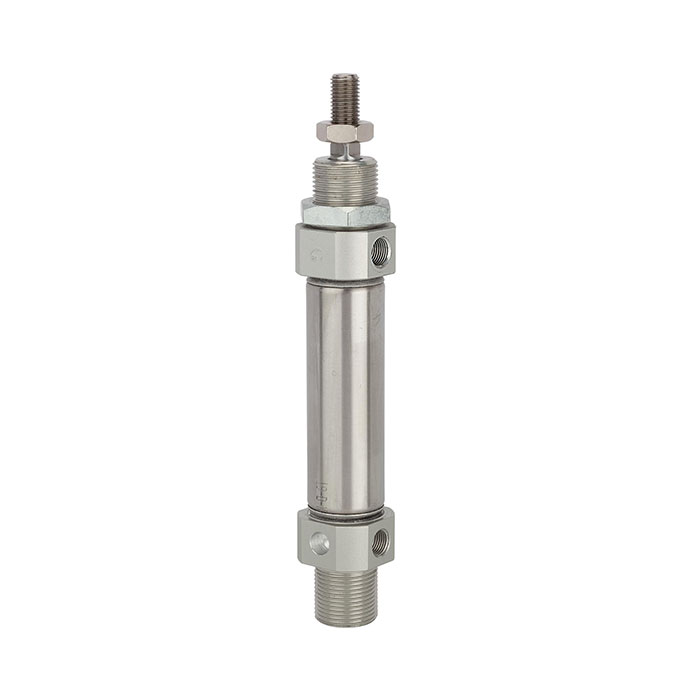

RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 80, G 1/4
Type number: 11.DM.40080
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Round cylinder "MI", double-acting, solenoid, piston Ø 40, stroke 80, connection G 1/4, working pressure 1 - 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CM |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 80 mm |
| Piston rods AG | M12x1.25 |
| Piston rod Ø | 16 mm |
| Connection | G 1/4 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
