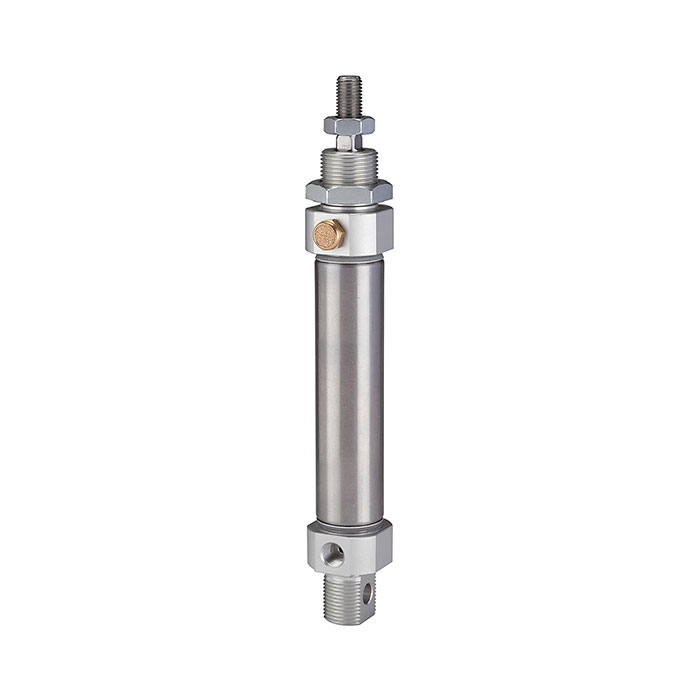

RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 15, G 1/8
Type number: 11.EM.25015
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Round cylinder "MSI", single-acting, solenoid, piston Ø 25, stroke 15, connection G 1/8, working pressure 2 - 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | MSI series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 25 mm |
| Function | single-acting |
| Stroke | 15 mm |
| Piston rods AG | M10x1.25 |
| Piston rod Ø | 10 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114934] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 10, M5x0.8](/web/image/product.template/198504/image_128/%5B114934%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2010%2C%20M5x0.8?unique=b139d66)
|
Type number: 11.EM.10010 |
31.46 € | |
![[114935] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 15, M5x0.8](/web/image/product.template/198505/image_128/%5B114935%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2015%2C%20M5x0.8?unique=9f16f22)
|
Type number: 11.EM.10015 |
31.88 € | |
![[114936] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 20, M5x0.8](/web/image/product.template/198506/image_128/%5B114936%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2020%2C%20M5x0.8?unique=ffdc0c6)
|
Type number: 11.EM.10020 |
31.88 € | |
![[114937] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 25, M5x0.8](/web/image/product.template/198507/image_128/%5B114937%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2025%2C%20M5x0.8?unique=25c2962)
|
Type number: 11.EM.10025 |
31.88 € | |
![[114938] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 30, M5x0.8](/web/image/product.template/198508/image_128/%5B114938%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2030%2C%20M5x0.8?unique=56f44c1)
|
Type number: 11.EM.10030 |
32.42 € | |
![[114939] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 40, M5x0.8](/web/image/product.template/198509/image_128/%5B114939%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2040%2C%20M5x0.8?unique=df0057e)
|
Type number: 11.EM.10040 |
32.42 € | |
![[114940] RIEGLER Round cylinder »MSI« single-acting, PistonØ 10, Stroke 50, M5x0.8](/web/image/product.template/198510/image_128/%5B114940%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2010%2C%20Stroke%2050%2C%20M5x0.8?unique=48588c0)
|
Type number: 11.EM.10050 |
32.42 € | |
![[114941] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 10, M5x0.8](/web/image/product.template/198511/image_128/%5B114941%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2010%2C%20M5x0.8?unique=83d22f6)
|
Type number: 11.EM.12010 |
33.51 € | |
![[114942] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 15, M5x0.8](/web/image/product.template/198512/image_128/%5B114942%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2015%2C%20M5x0.8?unique=ee321a3)
|
Type number: 11.EM.12015 |
33.83 € | |
![[114943] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 20, M5x0.8](/web/image/product.template/198513/image_128/%5B114943%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2020%2C%20M5x0.8?unique=60e671d)
|
Type number: 11.EM.12020 |
33.83 € | |
![[114944] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 25, M5x0.8](/web/image/product.template/198514/image_128/%5B114944%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2025%2C%20M5x0.8?unique=b73170d)
|
Type number: 11.EM.12025 |
33.83 € | |
![[114945] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 30, M5x0.8](/web/image/product.template/198515/image_128/%5B114945%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2030%2C%20M5x0.8?unique=ad32511)
|
Type number: 11.EM.12030 |
34.27 € | |
![[114946] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 40, M5x0.8](/web/image/product.template/198516/image_128/%5B114946%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2040%2C%20M5x0.8?unique=67ac2c8)
|
Type number: 11.EM.12040 |
34.27 € | |
![[114947] RIEGLER Round cylinder »MSI« single-acting, PistonØ 12, Stroke 50, M5x0.8](/web/image/product.template/198517/image_128/%5B114947%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2012%2C%20Stroke%2050%2C%20M5x0.8?unique=b8161e6)
|
Type number: 11.EM.12050 |
35.13 € | |
![[114958] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 100 M5x0.8](/web/image/product.template/198528/image_128/%5B114958%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%20100%20M5x0.8?unique=888c094)
|
Type number: 11.EM.16100 |
42.19 € | |
![[114948] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 10, M5x0.8](/web/image/product.template/198518/image_128/%5B114948%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2010%2C%20M5x0.8?unique=7fae99c)
|
Type number: 11.EM.16010 |
35.33 € | |
![[114949] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 15, M5x0.8](/web/image/product.template/198519/image_128/%5B114949%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2015%2C%20M5x0.8?unique=36a430d)
|
Type number: 11.EM.16015 |
36.32 € | |
![[114950] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 20, M5x0.8](/web/image/product.template/198520/image_128/%5B114950%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2020%2C%20M5x0.8?unique=0ff1e8a)
|
Type number: 11.EM.16020 |
36.32 € | |
![[114951] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 25, M5x0.8](/web/image/product.template/198521/image_128/%5B114951%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2025%2C%20M5x0.8?unique=fe55942)
|
Type number: 11.EM.16025 |
36.32 € | |
![[114952] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 30, M5x0.8](/web/image/product.template/198522/image_128/%5B114952%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2030%2C%20M5x0.8?unique=6f3b4ae)
|
Type number: 11.EM.16030 |
38.07 € | |
![[114953] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 40, M5x0.8](/web/image/product.template/198523/image_128/%5B114953%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2040%2C%20M5x0.8?unique=d01891f)
|
Type number: 11.EM.16040 |
38.07 € | |
![[114954] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 50, M5x0.8](/web/image/product.template/198524/image_128/%5B114954%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2050%2C%20M5x0.8?unique=ea92aab)
|
Type number: 11.EM.16050 |
38.07 € | |
![[114955] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 60, M5x0.8](/web/image/product.template/198525/image_128/%5B114955%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2060%2C%20M5x0.8?unique=b6ac1cf)
|
Type number: 11.EM.16060 |
42.19 € | |
![[114956] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 75, M5x0.8](/web/image/product.template/198526/image_128/%5B114956%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2075%2C%20M5x0.8?unique=40c95f7)
|
Type number: 11.EM.16075 |
42.19 € | |
![[114957] RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 80, M5x0.8](/web/image/product.template/198527/image_128/%5B114957%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2016%2C%20Stroke%2080%2C%20M5x0.8?unique=053beea)
|
Type number: 11.EM.16080 |
42.19 € | |
![[114969] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 100, G 1/8](/web/image/product.template/198539/image_128/%5B114969%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20100%2C%20G%201-8?unique=89d8cbc)
|
Type number: 11.EM.20100 |
45.76 € | |
![[114959] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 10, G 1/8](/web/image/product.template/198529/image_128/%5B114959%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20G%201-8?unique=b2164f0)
|
Type number: 11.EM.20010 |
42.19 € | |
![[114970] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 125, G 1/8](/web/image/product.template/198540/image_128/%5B114970%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20125%2C%20G%201-8?unique=279659b)
|
Type number: 11.EM.20125 |
46.40 € | |
![[114971] RIEGLER Round cylinder »MSI« single-acting, PistonØ 20, Stroke 150, G 1/8](/web/image/product.template/198541/image_128/%5B114971%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2020%2C%20Stroke%20150%2C%20G%201-8?unique=a7ca333)
|
Type number: 11.EM.20150 |
46.40 € | |
![[114960] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 15, G 1/8](/web/image/product.template/198530/image_128/%5B114960%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2C%20G%201-8?unique=4b6bbf0)
|
Type number: 11.EM.20015 |
42.73 € | |
![[114961] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 20, G 1/8](/web/image/product.template/198531/image_128/%5B114961%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2C%20G%201-8?unique=4e082c6)
|
Type number: 11.EM.20020 |
42.73 € | |
![[114962] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 25, G 1/8](/web/image/product.template/198532/image_128/%5B114962%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20G%201-8?unique=f0e501a)
|
Type number: 11.EM.20025 |
42.73 € | |
![[114963] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 30, G 1/8](/web/image/product.template/198533/image_128/%5B114963%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2030%2C%20G%201-8?unique=bd67622)
|
Type number: 11.EM.20030 |
44.02 € | |
![[114964] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 40, G 1/8](/web/image/product.template/198534/image_128/%5B114964%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2040%2C%20G%201-8?unique=7da9477)
|
Type number: 11.EM.20040 |
44.02 € | |
![[114965] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 50, G 1/8](/web/image/product.template/198535/image_128/%5B114965%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2050%2C%20G%201-8?unique=24826d5)
|
Type number: 11.EM.20050 |
44.02 € | |
![[114966] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 60, G 1/8](/web/image/product.template/198536/image_128/%5B114966%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2060%2C%20G%201-8?unique=83ffb91)
|
Type number: 11.EM.20060 |
45.32 € | |
![[114967] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 75, G 1/8](/web/image/product.template/198537/image_128/%5B114967%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2075%2C%20G%201-8?unique=217149a)
|
Type number: 11.EM.20075 |
45.32 € | |
![[114968] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 20, Stroke 80, G 1/8](/web/image/product.template/198538/image_128/%5B114968%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2080%2C%20G%201-8?unique=4971bb1)
|
Type number: 11.EM.20080 |
45.76 € | |
![[114982] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 100, G 1/8](/web/image/product.template/198552/image_128/%5B114982%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20100%2C%20G%201-8?unique=8408b41)
|
Type number: 11.EM.25100 |
55.85 € | |
![[114972] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 10, G 1/8](/web/image/product.template/198542/image_128/%5B114972%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2C%20G%201-8?unique=7964281)
|
Type number: 11.EM.25010 |
46.61 € | |
![[114983] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 125, G 1/8](/web/image/product.template/198553/image_128/%5B114983%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20125%2C%20G%201-8?unique=fe0311a)
|
Type number: 11.EM.25125 |
57.26 € | |
![[114984] RIEGLER Round cylinder »MSI« single-acting, PistonØ 25, Stroke 150, G 1/8](/web/image/product.template/198554/image_128/%5B114984%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%20150%2C%20G%201-8?unique=269751b)
|
Type number: 11.EM.25150 |
57.56 € | |
![[114974] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 20, G 1/8](/web/image/product.template/198544/image_128/%5B114974%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2C%20G%201-8?unique=361afe4)
|
Type number: 11.EM.25020 |
47.49 € | |
![[114975] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 25, G 1/8](/web/image/product.template/198545/image_128/%5B114975%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2C%20G%201-8?unique=763ff8a)
|
Type number: 11.EM.25025 |
47.83 € | |
![[114976] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 30, G 1/8](/web/image/product.template/198546/image_128/%5B114976%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2030%2C%20G%201-8?unique=7d90c81)
|
Type number: 11.EM.25030 |
49.66 € | |
![[114977] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 40, G 1/8](/web/image/product.template/198547/image_128/%5B114977%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2040%2C%20G%201-8?unique=d29e284)
|
Type number: 11.EM.25040 |
49.66 € | |
![[114978] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 50, G 1/8](/web/image/product.template/198548/image_128/%5B114978%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2050%2C%20G%201-8?unique=80c47bd)
|
Type number: 11.EM.25050 |
49.88 € | |
![[114979] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 60, G 1/8](/web/image/product.template/198549/image_128/%5B114979%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2060%2C%20G%201-8?unique=c62ebf1)
|
Type number: 11.EM.25060 |
52.28 € | |
![[114980] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 75, G 1/8](/web/image/product.template/198550/image_128/%5B114980%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2075%2C%20G%201-8?unique=c2a8661)
|
Type number: 11.EM.25075 |
53.68 € | |
![[114981] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 25, Stroke 80, G 1/8](/web/image/product.template/198551/image_128/%5B114981%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2080%2C%20G%201-8?unique=eaf8188)
|
Type number: 11.EM.25080 |
54.87 € | |
![[114927] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 10, M5x0.8](/web/image/product.template/198497/image_128/%5B114927%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2010%2C%20M5x0.8?unique=705b524)
|
Type number: 11.EM.08010 |
31.00 € | |
![[114928] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 15, M5x0.8](/web/image/product.template/198498/image_128/%5B114928%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2015%2C%20M5x0.8?unique=d2c3ae1)
|
Type number: 11.EM.08015 |
31.00 € | |
![[114929] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 20, M5x0.8](/web/image/product.template/198499/image_128/%5B114929%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2020%2C%20M5x0.8?unique=93709df)
|
Type number: 11.EM.08020 |
31.00 € | |
![[114930] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 25, M5x0.8](/web/image/product.template/198500/image_128/%5B114930%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2025%2C%20M5x0.8?unique=418909f)
|
Type number: 11.EM.08025 |
31.00 € | |
![[114931] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 30, M5x0.8](/web/image/product.template/198501/image_128/%5B114931%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2030%2C%20M5x0.8?unique=9407ef9)
|
Type number: 11.EM.08030 |
31.46 € | |
![[114932] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 40, M5x0.8](/web/image/product.template/198502/image_128/%5B114932%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2040%2C%20M5x0.8?unique=196e6e9)
|
Type number: 11.EM.08040 |
31.46 € | |
![[114933] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 8, Stroke 50, M5x0.8](/web/image/product.template/198503/image_128/%5B114933%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%208%2C%20Stroke%2050%2C%20M5x0.8?unique=a211da1)
|
Type number: 11.EM.08050 |
31.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

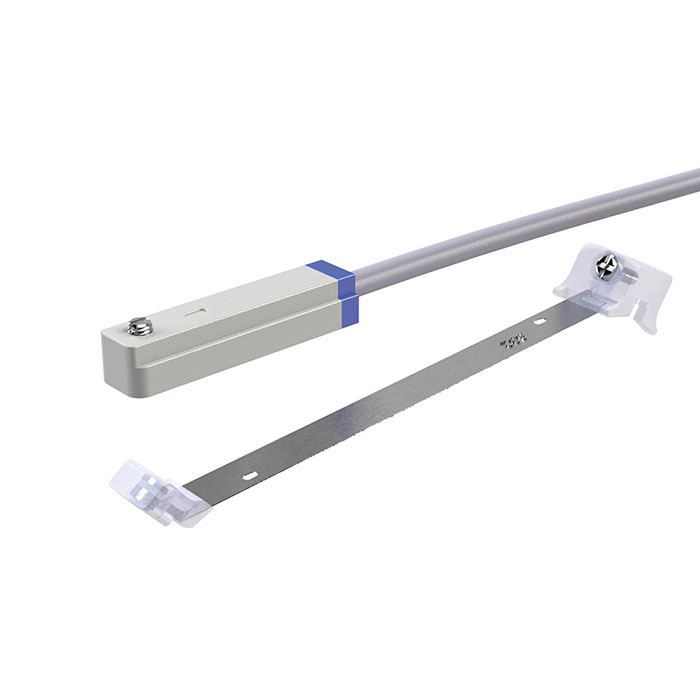

![[115552] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 25](/web/image/product.template/200311/image_128/%5B115552%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2025?unique=b2351a1)
|
Type number: 235.315 |
10.94 € | |

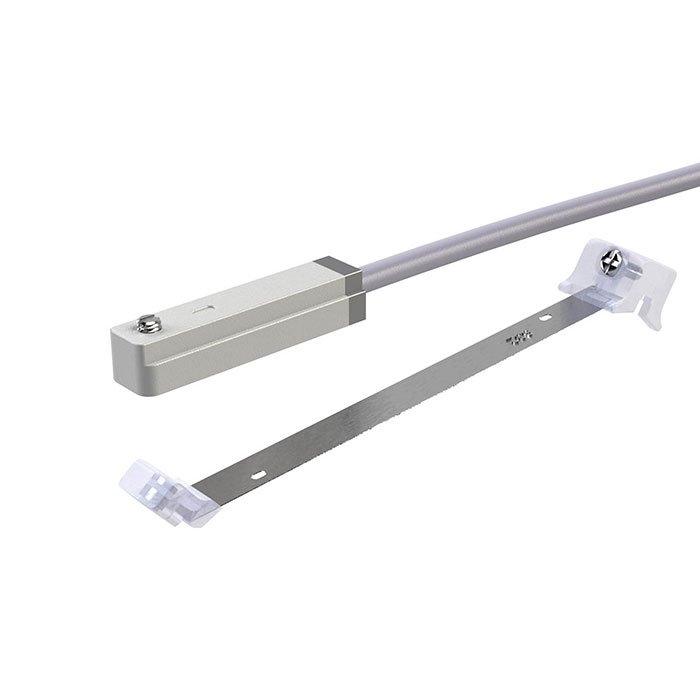

![[115560] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 25](/web/image/product.template/200319/image_128/%5B115560%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2025?unique=185ca35)
|
Type number: 235.325 |
26.99 € | |
![[115568] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 25](/web/image/product.template/200327/image_128/%5B115568%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2025?unique=41ce9f5)
|
Type number: 235.335 |
23.32 € | |
![[115576] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 25](/web/image/product.template/200335/image_128/%5B115576%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2025?unique=864119a)
|
Type number: 235.345 |
26.99 € | |
![[115584] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 25](/web/image/product.template/200343/image_128/%5B115584%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2025?unique=1858d41)
|
Type number: 235.355 |
23.32 € | |

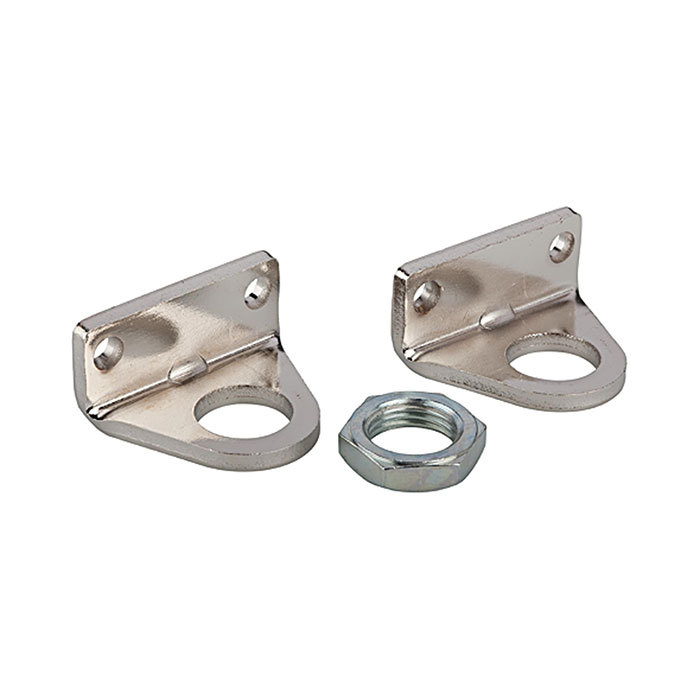

![[115806] RIEGLER Foot fastening »LB« for round cylinder, for piston Ø 20-25](/web/image/product.template/200541/image_128/%5B115806%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2020-25?unique=39ac59c)
|
Type number: 437.202 |
4.22 € | |
![[115814] RIEGLER Joint head »UNIT«, Piston rod thread M10x1.25](/web/image/product.template/200548/image_128/%5B115814%5D%20RIEGLER%20Joint%20head%20%C2%BBUNIT%C2%AB%2C%20Piston%20rod%20thread%20M10x1.25?unique=0e88ed0)
|
Type number: 437.220 |
6.39 € | |

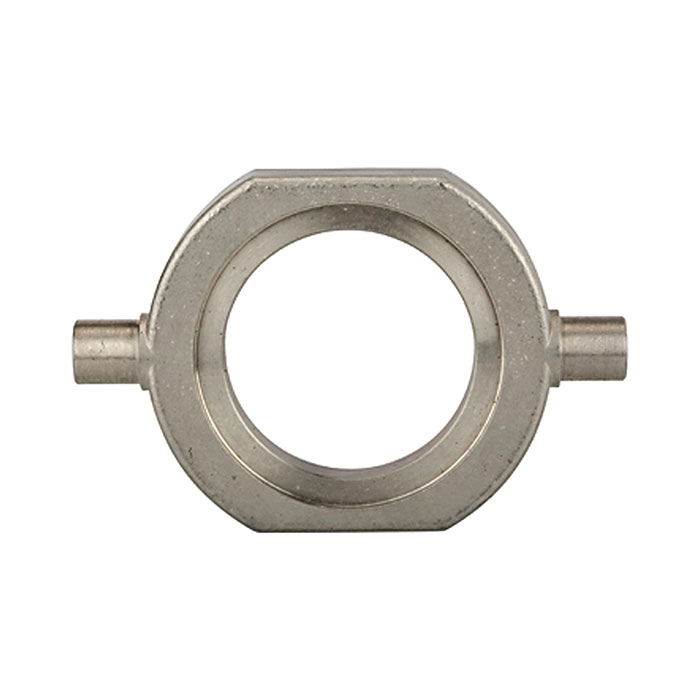

![[115821] RIEGLER Pivoting head fastening »TC« for round cyl., for piston Ø 20-25](/web/image/product.template/200555/image_128/%5B115821%5D%20RIEGLER%20Pivoting%20head%20fastening%20%C2%BBTC%C2%AB%20for%20round%20cyl.%2C%20for%20piston%20%C3%98%2020-25?unique=5606fa1)
|
Type number: 437.232 |
6.76 € | |

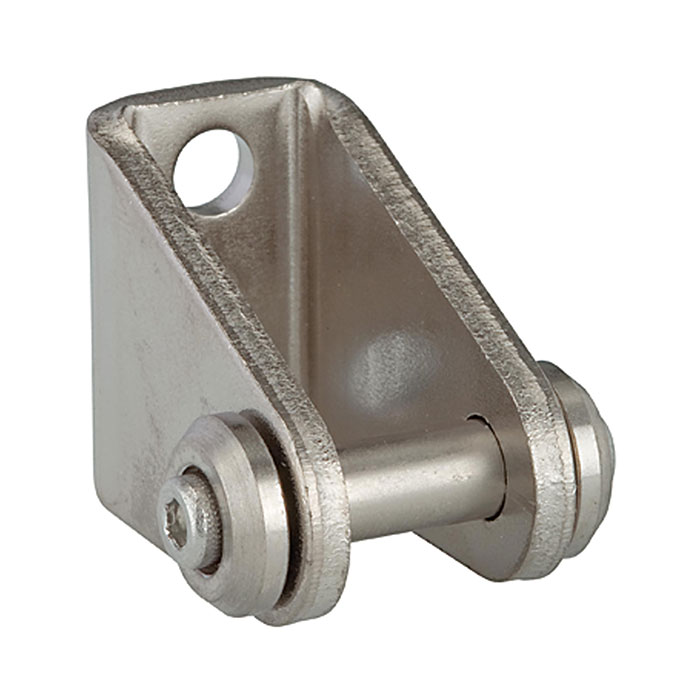

![[115829] RIEGLER Pivoting bearing, »SDB« for round cylinder, for piston Ø 20-25](/web/image/product.template/200562/image_128/%5B115829%5D%20RIEGLER%20Pivoting%20bearing%2C%20%C2%BBSDB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2020-25?unique=f9fda30)
|
Type number: 437.252 |
3.80 € | |

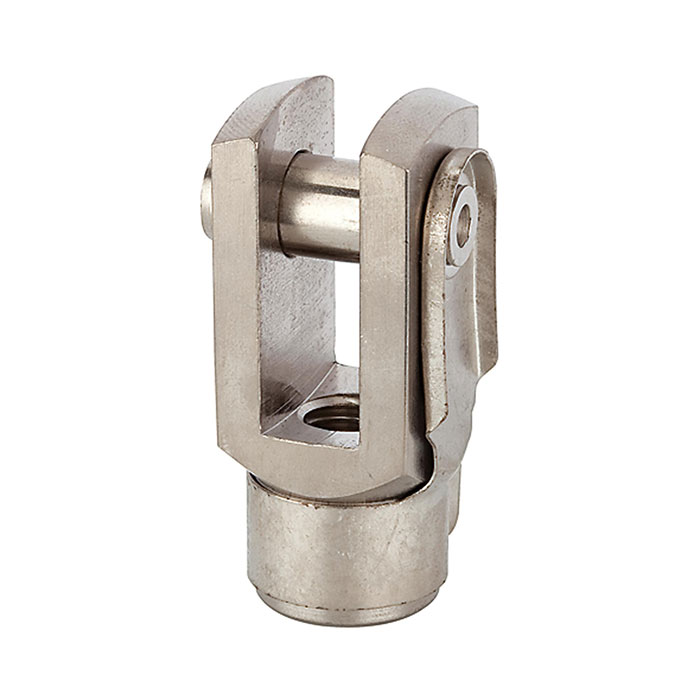

![[115834] RIEGLER Fork head »Y« for cylinder series »MI«/»MSI«, for piston Ø 20](/web/image/product.template/200567/image_128/%5B115834%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20cylinder%20series%20%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20for%20piston%20%C3%98%2020?unique=4979b1e)
|
Type number: 437.312 |
4.43 € | |
![[116950] RIEGLER Sensor »CS1« Rundzyl.»MI«/»MSI«, Kolben-Ø25, REED, 2-Draht,M8,NO](/web/image/product.template/267805/image_128/%5B116950%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Rundzyl.%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20Kolben-%C3%9825%2C%20REED%2C%202-Draht%2CM8%2CNO?unique=6b68572)
|
Type number: 235.305-1 |
13.33 € | |

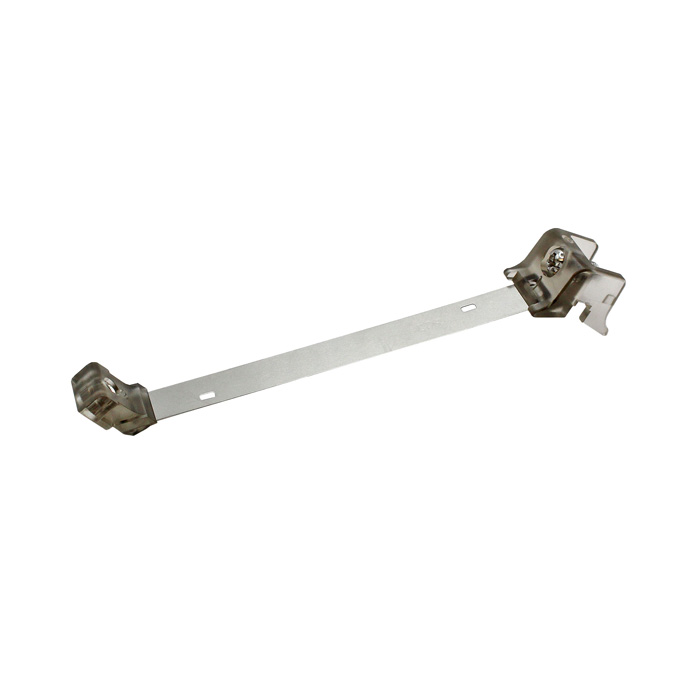

![[118565] RIEGLER Sensor holder, piston Ø 25, for sensor type CS1, stainless steel](/web/image/product.template/275022/image_128/%5B118565%5D%20RIEGLER%20Sensor%20holder%2C%20piston%20%C3%98%2025%2C%20for%20sensor%20type%20CS1%2C%20stainless%20steel?unique=04a54c5)
|
Type number: 235.25SH |
3.01 € | |

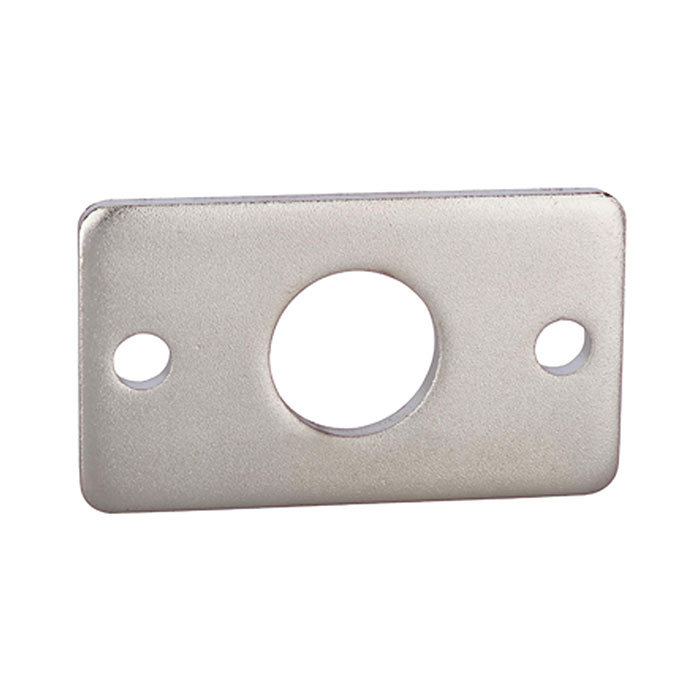

![[148902] RIEGLER Flange fastening »FA« for round cylinder, for piston Ø 20-25](/web/image/product.template/210593/image_128/%5B148902%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2020-25?unique=dd62dd2)
|
Typennummer: 437.242-1 |
1.48 € | |
