RIEGLER Bulkhead fitting »value line«, M12x1, for hose 8/6 mm
Type number: 12.500-8-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bulkhead fitting "value line" M12x1 made of nickel-plated brass, for pneumatic installation - type 12.500-8-E
The RIEGLER bulkhead fitting "value line" M12x1, f. hose 8/6, MS nickel-plated connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. M12x1 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Max. operating pressure | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature max. | 200 °C |
| Recommended hose | PA, PE, PU |
| Thread | M12x1 |
| SW | 16 mm |
| for hose | 8/6 mm |

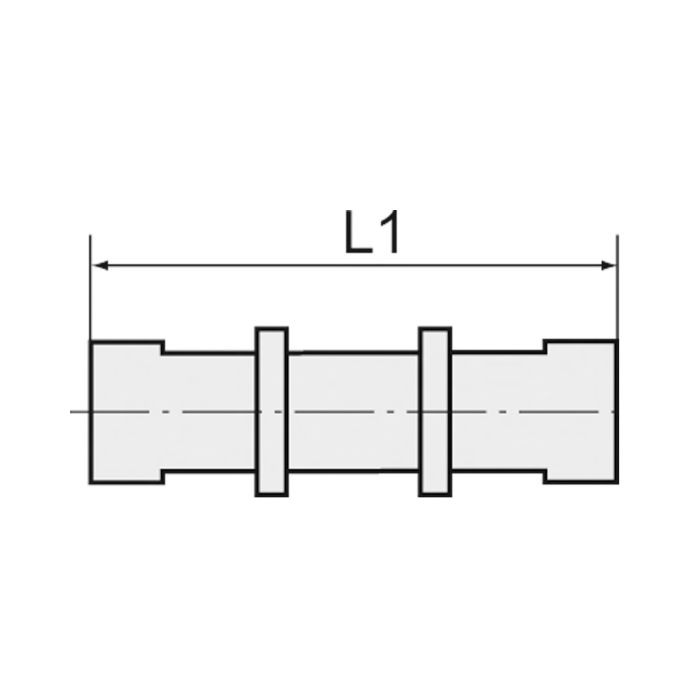

| L1 | 48 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | without |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

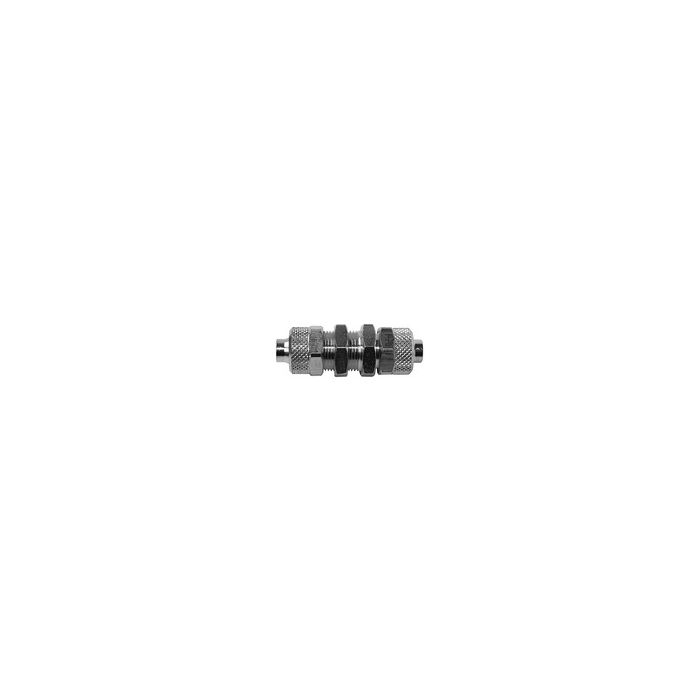

![[115032] RIEGLER Bulkhead fitting »value line«, M10x1, for hose 6/4 mm,](/web/image/product.template/199065/image_128/%5B115032%5D%20RIEGLER%20Bulkhead%20fitting%20%C2%BBvalue%20line%C2%AB%2C%20M10x1%2C%20for%20hose%206-4%20mm%2C?unique=0e5f332)
|
