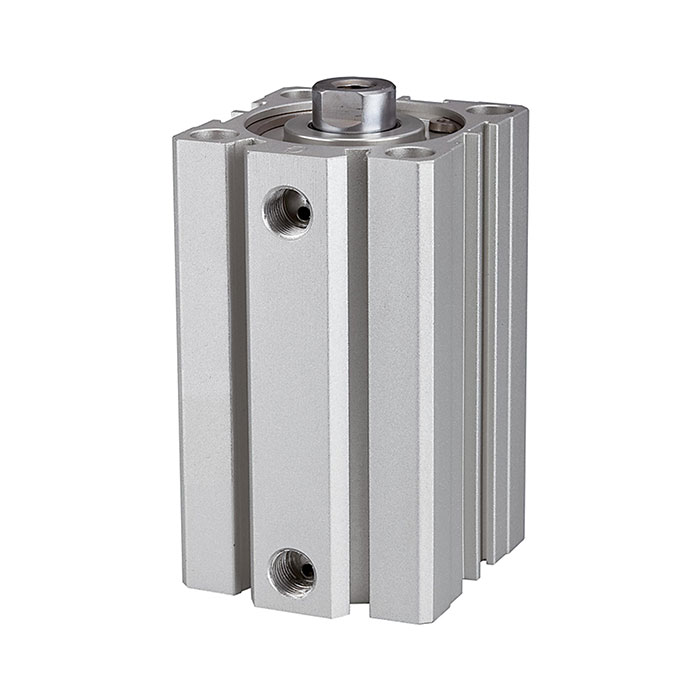

RIEGLER Short stroke cyl., double-acting, Piston Ø 100, Stroke 45, G 3/8
Type number: 12.DMI.100045
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder "ACQ" double-acting for automation technology, max. 10 bar, G 3/8 - Type 12.DMI.100045
The RIEGLER short-stroke cylinder "ACQ" double-acting, piston Ø 100, stroke 45, G 3/8 offers compact pneumatic drive solutions for confined installation spaces. with NBR seals. The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 3/8 - suitable for common industry standards. With piston Ø 100 mm, stroke 45 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 100 mm |
| Design | 3 |
| Function | double-acting |
| Stroke | 45 mm |
| Piston rod Ø | 32 mm |
| Piston rods IG | M20x2.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

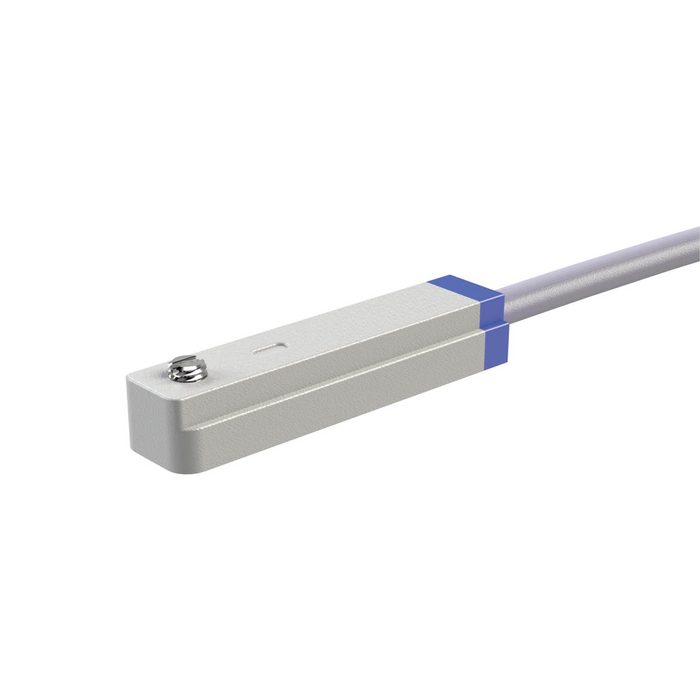

![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=a3f9e2d)
|
Type number: 235.101 |
9.20 € | |

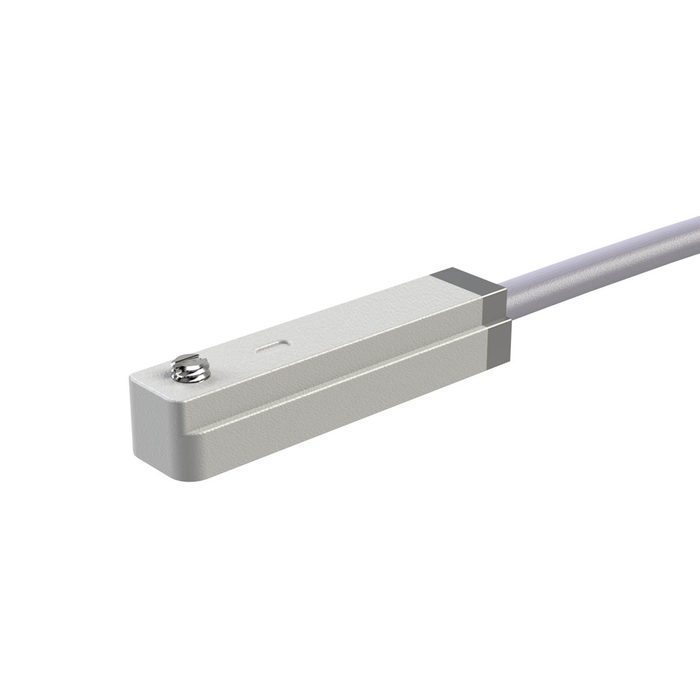

![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=eb5446c)
|
Type number: 235.102 |
21.13 € | |
![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=d0e28b6)
|
Type number: 235.103 |
18.77 € | |
![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=f66a584)
|
Type number: 235.104 |
21.13 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=48258c3)
|
Type number: 235.105 |
18.77 € | |
![[115875] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 100](/web/image/product.template/200608/image_128/%5B115875%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%20100?unique=b17a310)
|
Type number: 437.509 |
8.56 € | |

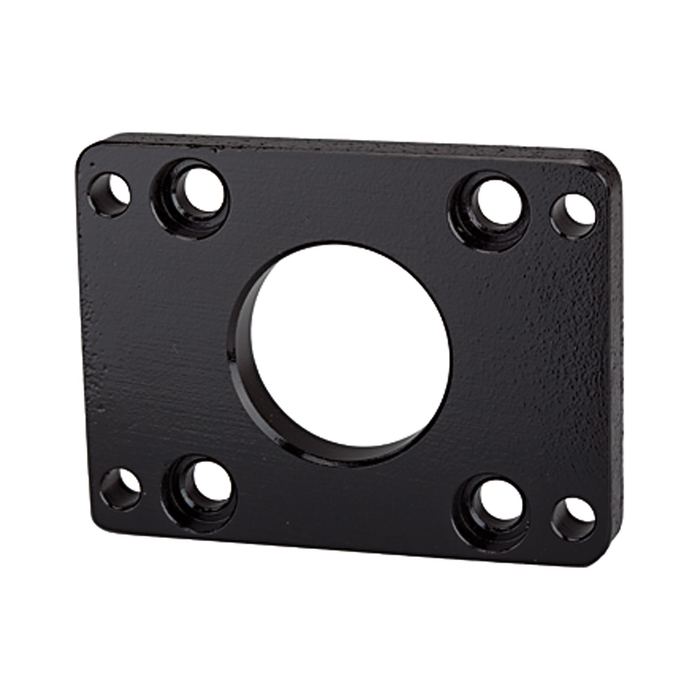

![[115885] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 100](/web/image/product.template/200618/image_128/%5B115885%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%20100?unique=da5bf8a)
|
Type number: 437.519 |
16.80 € | |

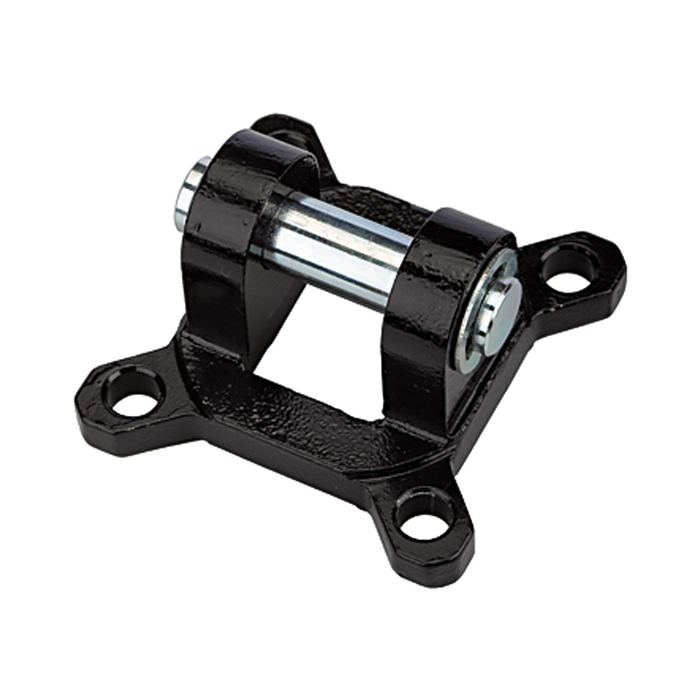

![[115895] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 100](/web/image/product.template/200628/image_128/%5B115895%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%20100?unique=1c8b5bd)
|
Type number: 437.529 |
19.19 € | |

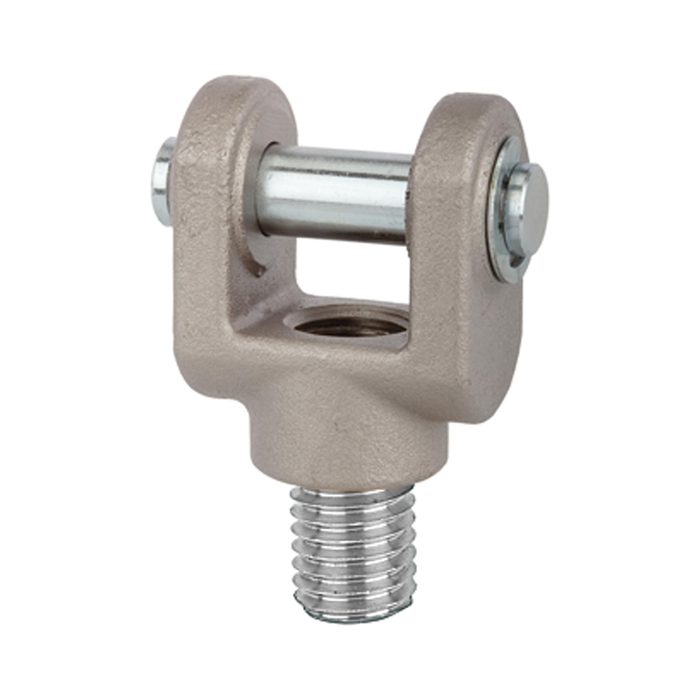

![[115911] RIEGLER Fork head »Y« for short stroke cylinder »ACQ«/»ASQ«, Piston Ø 100](/web/image/product.template/200644/image_128/%5B115911%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB-%C2%BBASQ%C2%AB%2C%20Piston%20%C3%98%20100?unique=36c2b2d)
|
